Battery Hydraulic Crimping Tools
Home > Products > Hydraulic Crimping Tools > Battery Hydraulic Crimping Tools
1.Crimping Force：15t
2.Crimping head rotates 360°
3.Crimping capacity：Max 630mm²

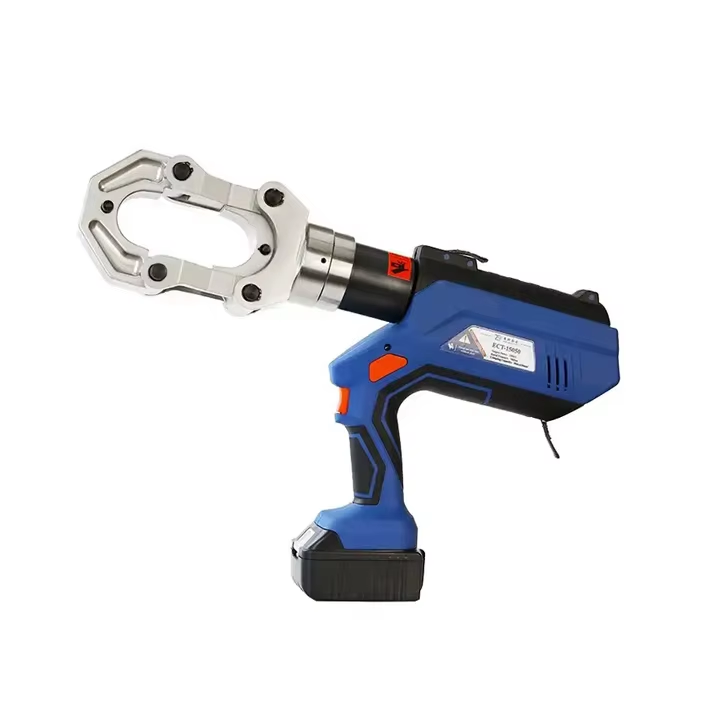

The ECT-15050 is a 15-ton battery-powered hydraulic crimping tool for copper and aluminum cable connections up to 630 mm². A 50 mm piston stroke and 700 bar rated pressure provide the force needed for large cross-section terminations in power distribution and industrial cabling.
A two-stage hydraulic system with automatic retraction advances the ram quickly in the first stage and shifts to high-pressure mode on contact. The included die adapter accepts both 12-ton dies (Cu 16–400 mm²) and 15-ton dies (Cu 500–630 mm²), providing coverage from small branch wiring to main feeder cables with one tool. At 9.4 kg with a body size of 51 × 28 × 8 cm, the ECT-15050 is built for heavy-duty field use and workshop production.
 |
 |
 | |

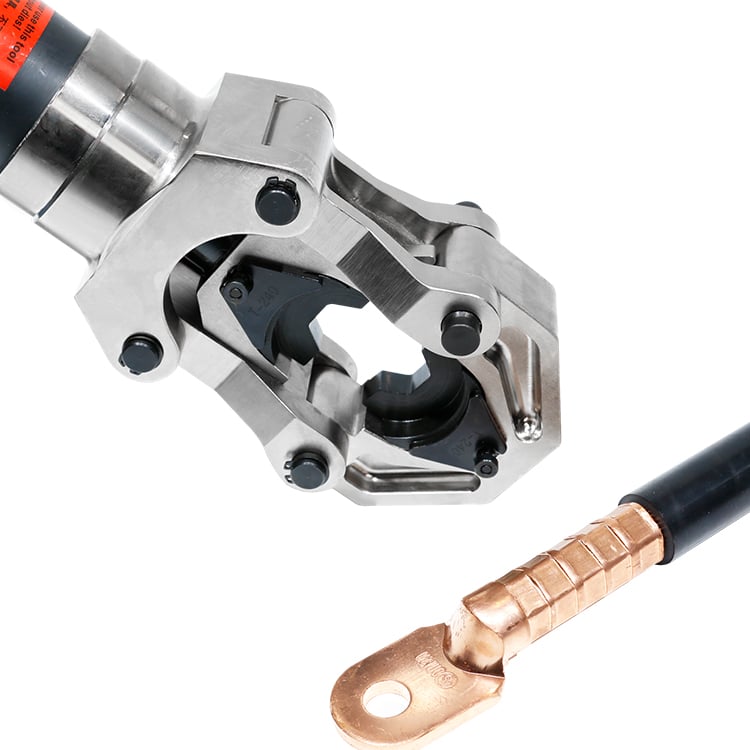

◢ Big jaw for larger crimping capacity
◢ Use the die adapter for 12t crimping dies
◢ Automatic retraction

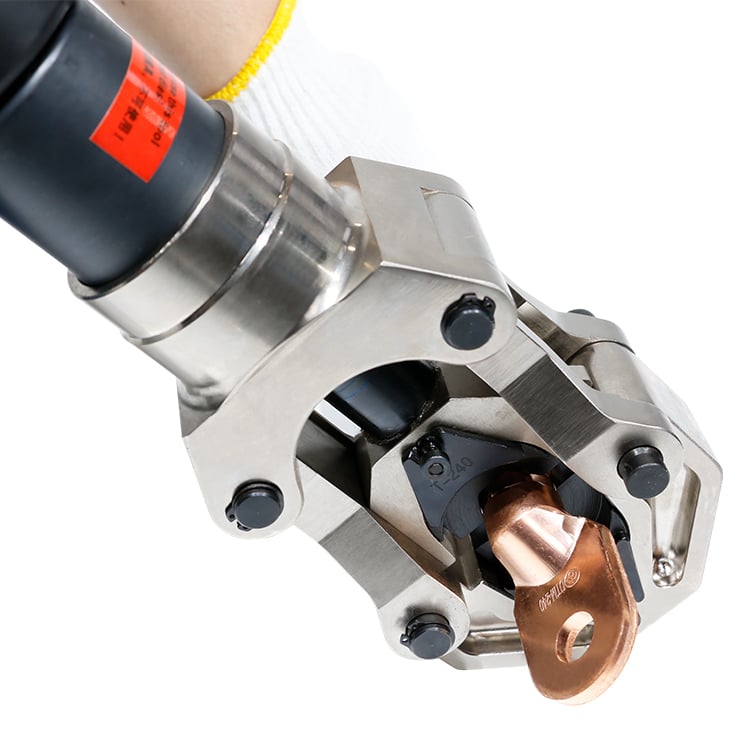

◢ Flip-open head, crimping head rotates 360°
◢ Built-in intelligent computer chip, OLED display makes it easy to read information
◢ Equipped with an LED work light to make work easier

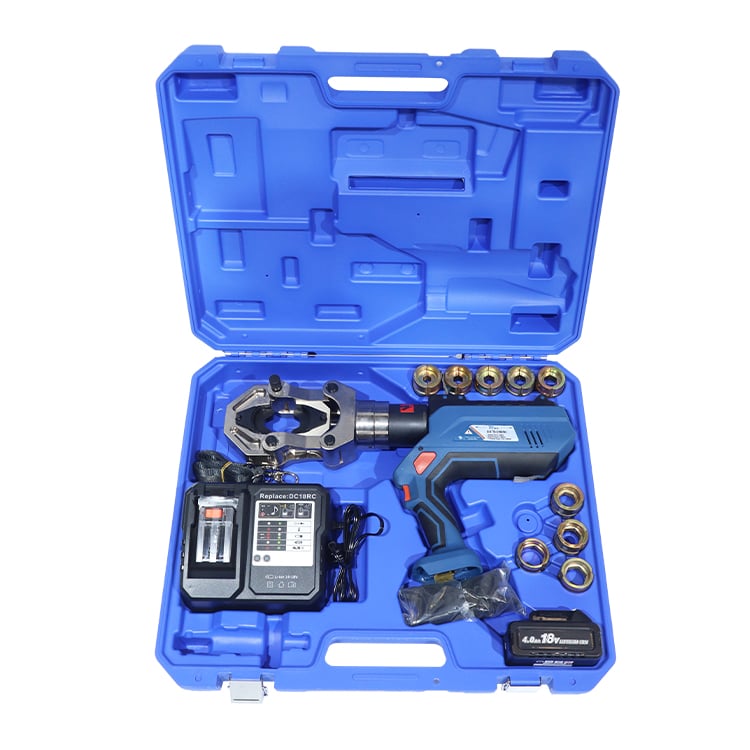

◢ High-capacity 18V power-on display lithium battery, with fast charger
◢ PP plastic, molding in one, strong and anti-impact
| Model | ECT-15050 |
| Crimping Force | 15T |
| Stroke | 50mm |
| Rated Pressure | 700bar |
| Crimping Capacity | Max 630mm2 |
| Net Weight | 9.4kg |
| Gross Weight | 19.2kg |
| Dimensions | 51x28x8cm |
| Standard Dies | Die adapter, (12t) Cu16-400mm2 ,(15t) Cu500-630mm2 |
 |
Standard dies | |
| Die adapter | 1PC | |
| 12t dies | 12PCS | |
| (Cu16/25/35/50/70/95/120/150/185/240/300/400mm2) | ||
| 15t dies | 2 pcs | |
| (Cu500/630mm2 ) | ||
Utility Substations
Crimping 500–630 mm² copper and aluminum feeder cable lugs for transformer and switchgear terminations where 15-ton force is required for proper cold welding.
Power Plant Electrical
Termination of large cross-section generator cables, bus duct connections, and main distribution board cabling.
Industrial Facilities
Crimping heavy feeder cables in factories, processing plants, and data center power distribution systems.
Wind Farm and Solar Plant
Field termination of collector circuit cables and inverter-to-transformer connections in renewable energy installations.
OEM Panel Manufacturing
Crimping large-gauge power cables in switchgear and control panel assembly.
Q1:What is the maximum cable size this tool can crimp?
630 mm² copper or aluminum. The standard kit includes a die adapter that takes both 12t dies (Cu 16–400 mm²) and 15t dies (Cu 500–630 mm²).
Q2:What makes the 15-ton model different from the 6-ton and 12-ton models?
The ECT-15050 uses big jaw for larger crimping capacity. It is designed for large cross-sections (500–630 mm²) where smaller tools cannot achieve a complete cold weld. It also has a longer 50 mm stroke.
Q3:Can I use my existing 12-ton dies with this tool?
Yes. The die adapter included with the ECT-15050 accepts standard 12-ton dies (Cu 16–400 mm²), so you can use your existing die sets alongside the larger 15-ton dies.
Q4:Is the battery compatible with other BETE tools?
Yes. Uses the standard BETE 18V Li-ion platform, interchangeable with ECT-6022, ECT-12042, ECT-60UNV, and ECT-105C.
Q5:Is OEM available?
Yes. Custom housing colors, private-label branding, and tailored kit configurations available. Minimum order quantities apply.
