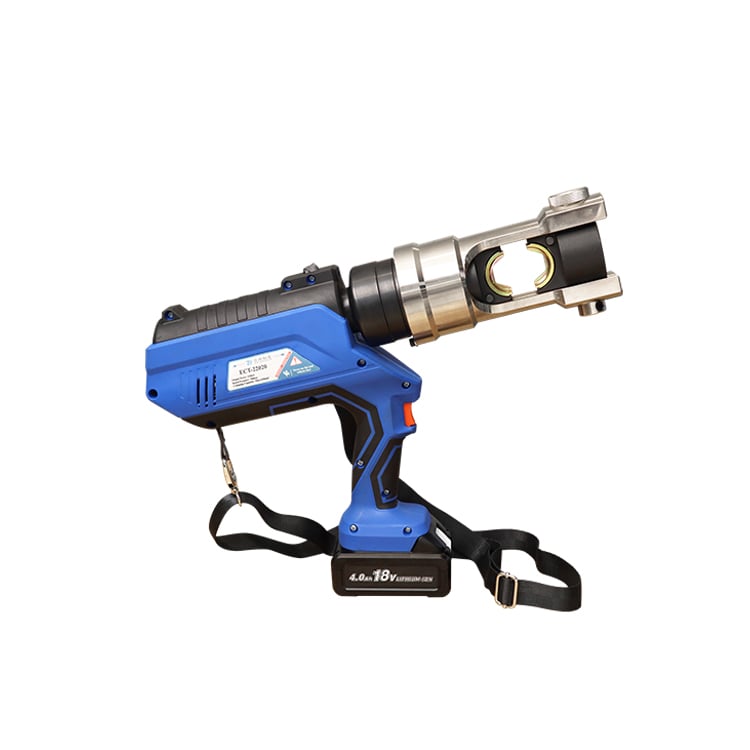

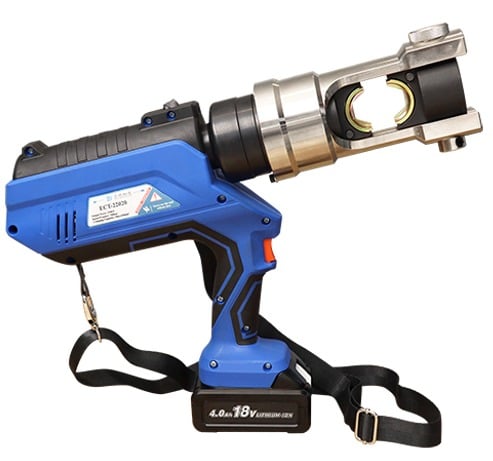

ECT-25020 25t Battery Hydraulic Crimping Tool

Introduction

◢ High-strength U-shaped head design, sturdy and durable

◢ Large output force, wide range of crimping

◢ The H-type head has a uniform force during crimping

◢ Wide crimping surface reduces crimping times and terminal deformation

◢ The crimping head rotates 360°

◢ Built-in intelligent computer chip, OLED display makes it easy to read information

◢ Equipped with an LED work light to make work easier

◢ High-capacity 18V power-on display lithium battery, with fast charger

◢ PP plastic, molding in one, strong and anti-impact

Model	ECT-25020
Crimping Force	25T
Stroke	20mm
Rated Pressure	700bar
Crimping Capacity	Max 630mm2
Standard Dies	Die adapter, (12t) Cu50-400mm2 ,(25t) Cu500-630mm2
Net Weight	7.9kg
Gross Weight	20.1kg
Dimensions	45x38x10cm
Packing Size	59x52x14cm

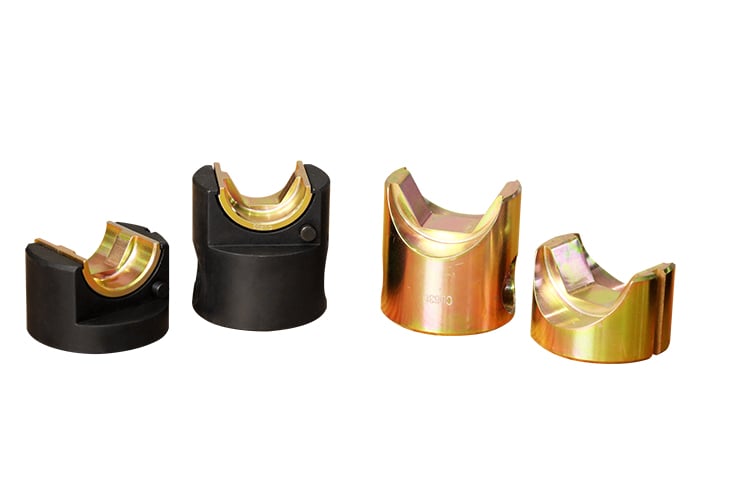

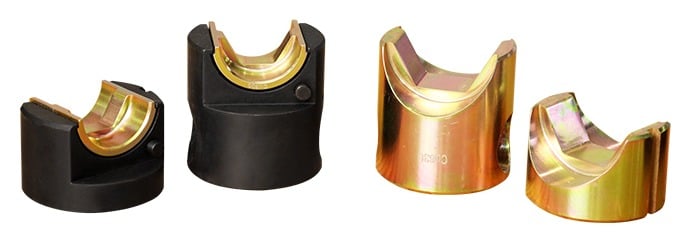

	Standard dies
	Die adapter	1PC
	12t dies	12PCS
	(Cu16/25/35/50/70/95/120/150/185/240/300/400mm2)
	25t dies	2PCS
	(Cu500/630mm2

The ECT-25020 Battery Powered Hydraulic Crimping Tool (25T) is a durable and efficient solution for heavy-duty cable crimping. Built with a high-strength aluminum alloy head, it offers excellent durability while remaining lightweight for easier handling. This battery-powered hydraulic crimping tool delivers stable and precise crimping performance, making it suitable for cables ranging from 6mm² to 150mm². Designed with an ergonomic, anti-slip handle, it ensures comfortable operation and reduced fatigue during extended use. Ideal for electrical installation, maintenance, and industrial applications, the ECT-25020 provides reliable performance in demanding work environments.
