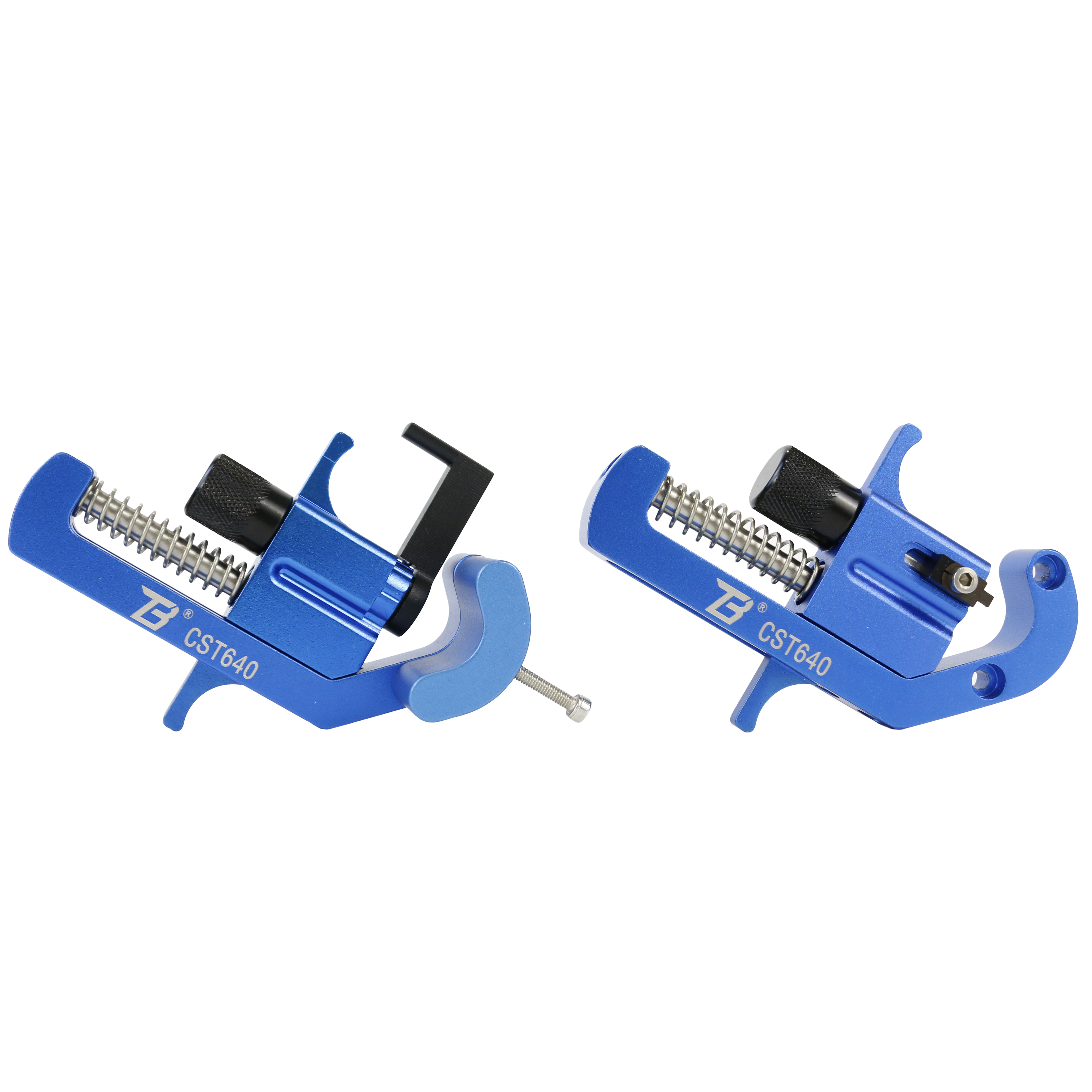

CST640 Strippable Semi-con Stripper
1.Application: to strip 10kV strippable semi-conductor
2.Adjustable cutting depth, max 2mm, adjustable range of rotary knob is 0-0.9mm, each adjustable depth is 0.1mm
3.The blade can adjust its depth in advance at any time
4.Applicable cable Dia.: 20-41mm
5.Minimum hardness of blade: 52 HRC
6.Replaceable blade

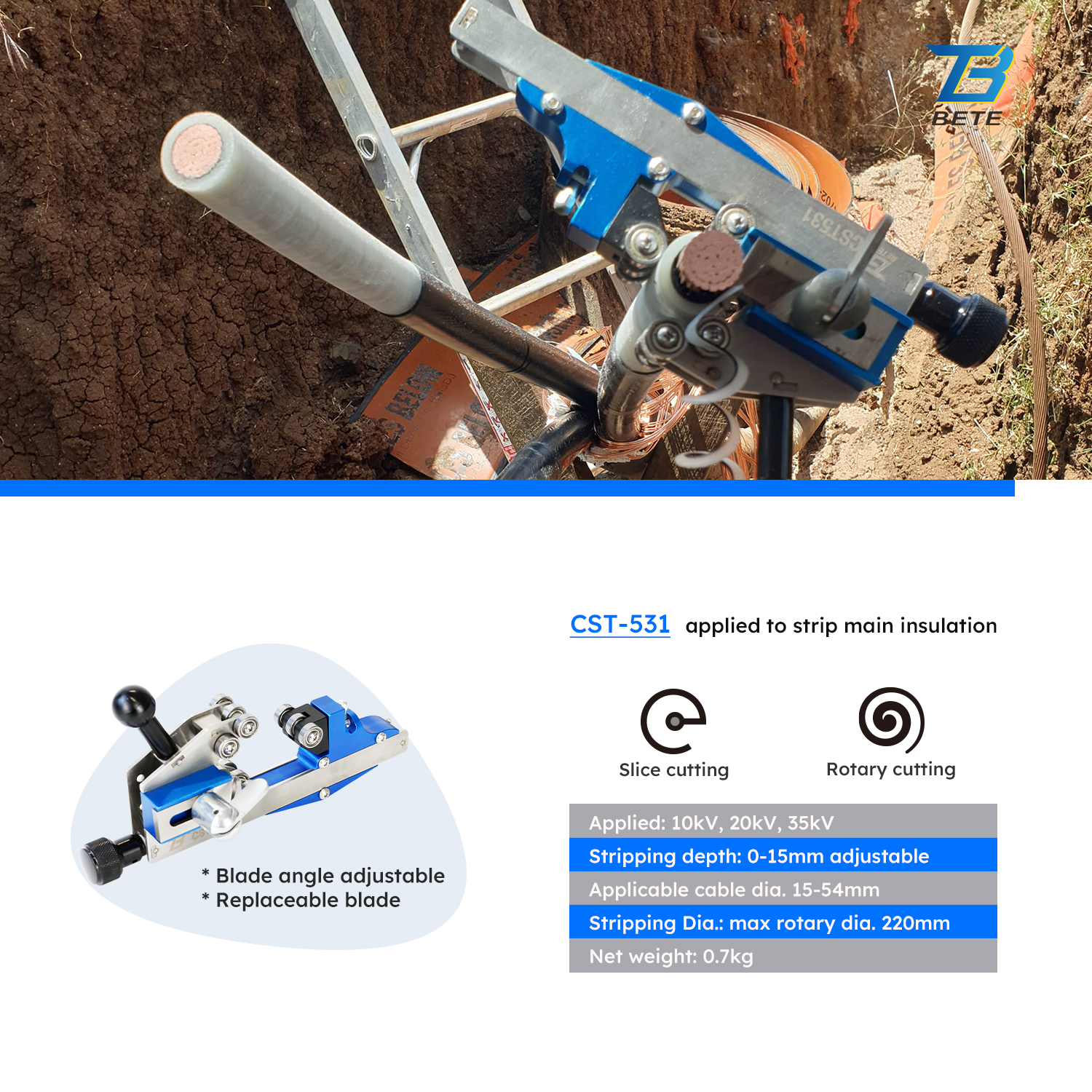

CST531 Main Insulation Stripper
1.Applied to strip main insulation of 10kV, 20kV, 35kV
2.Slice & rotary cutting function, blade angle adjustable
3.Replaceable blade
4.Stripping depth: 0-15mm adjustable
5.Applicable cable diameter 15-54mm
6.Stripping Dia.: max rotary dia. 220mm
7.Weight: 0.7kg
CST240 35kV Insulation Chamfer Tool
1.Max size of rotation: 200 mm
2.Applied to XLPE cable diameter Φ15-60mm insulation chamfer under 35kV
3.Chamfer size: 3*45°
4.Weight: 0.39kg

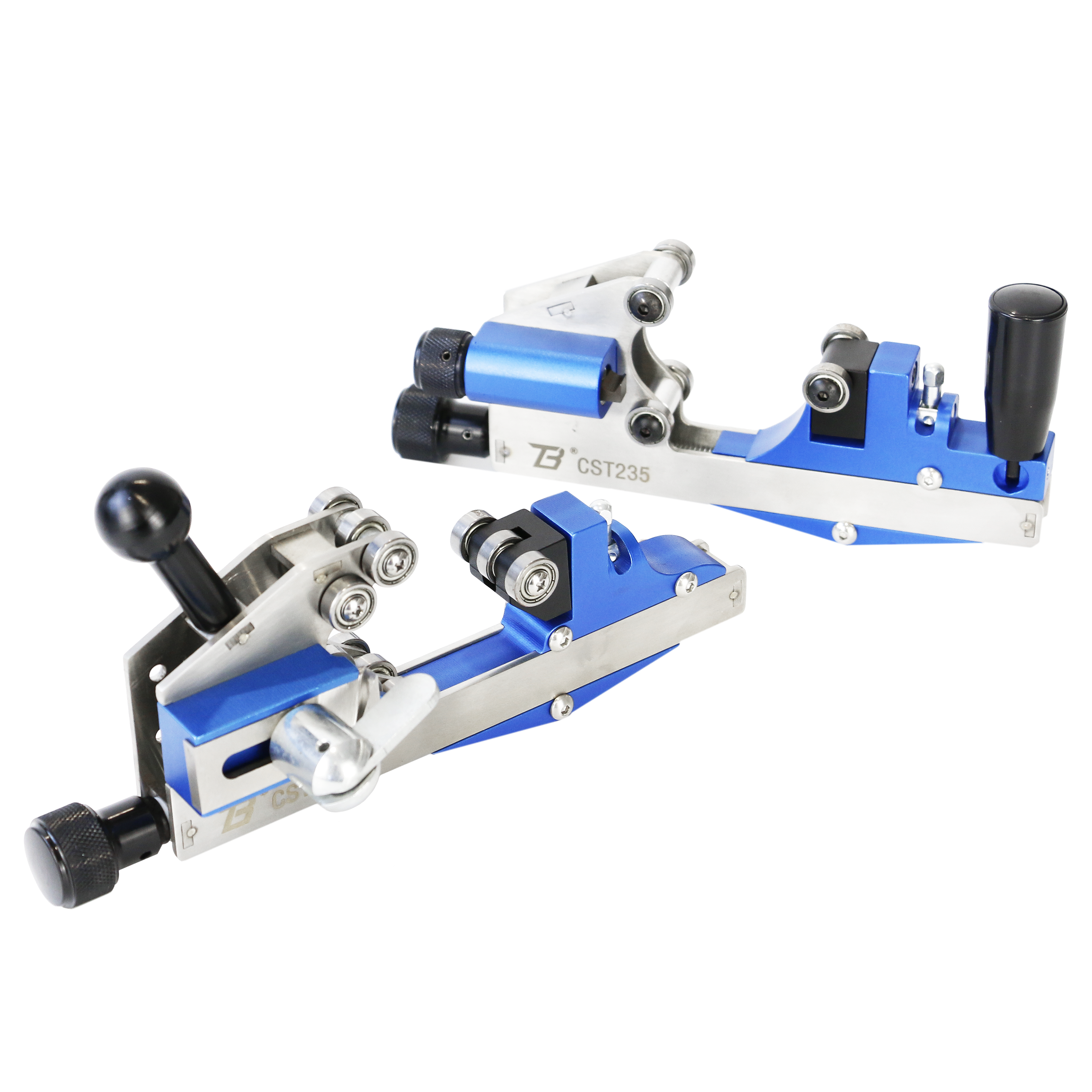

CST235 Non-strippable Semi-con Stripper
1.Applied to 35kV non-strippable semi-conductor
2.With Chamfer on blade, leaving chamfer on semi-conductor
3.One-way stripping
4.Replaceable blade
5.Stripping depth: 0-1.5mm
6.Applicable cable diameter 30-54mm
7.Can be fixed tightly on cable
8.Weight: 0.6kg

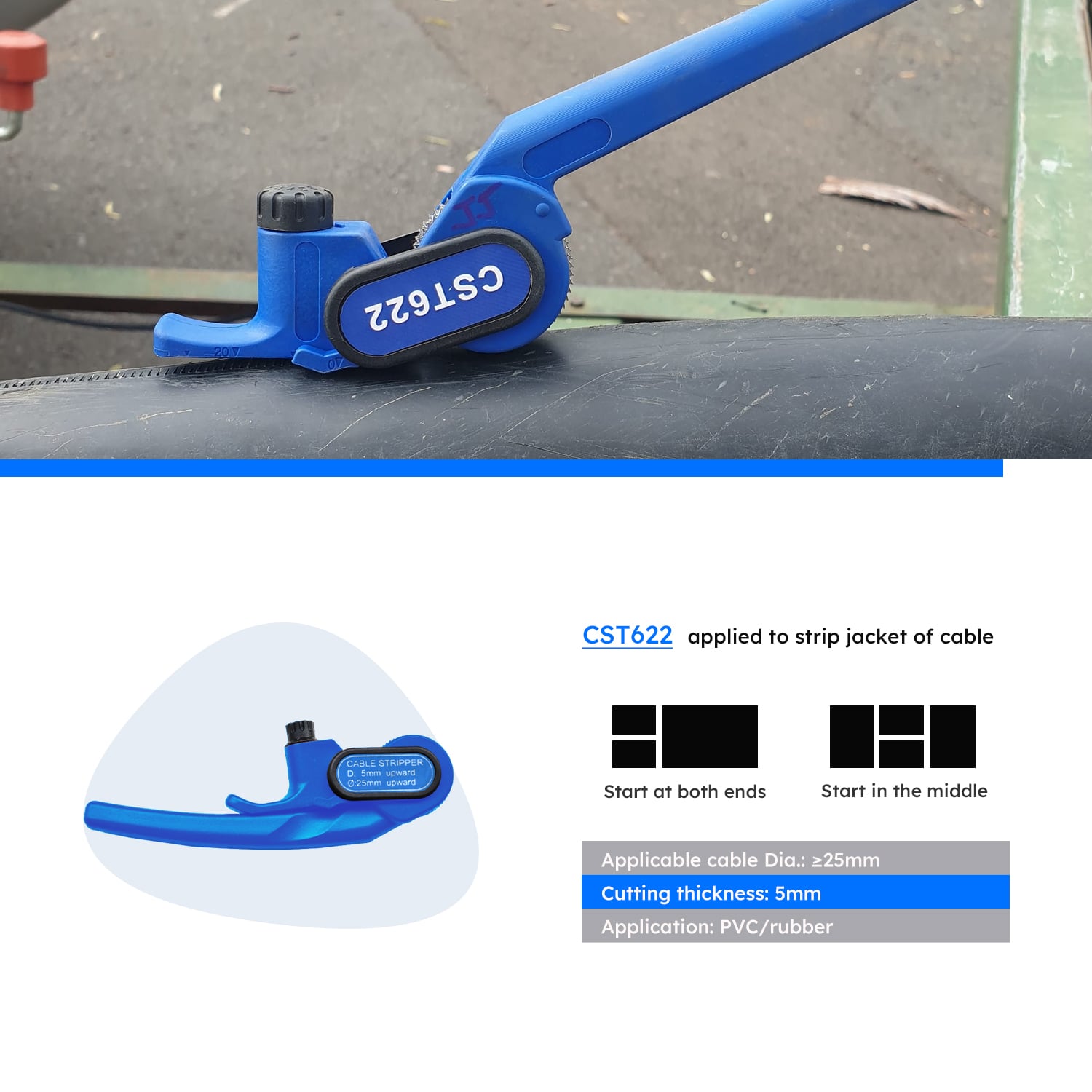

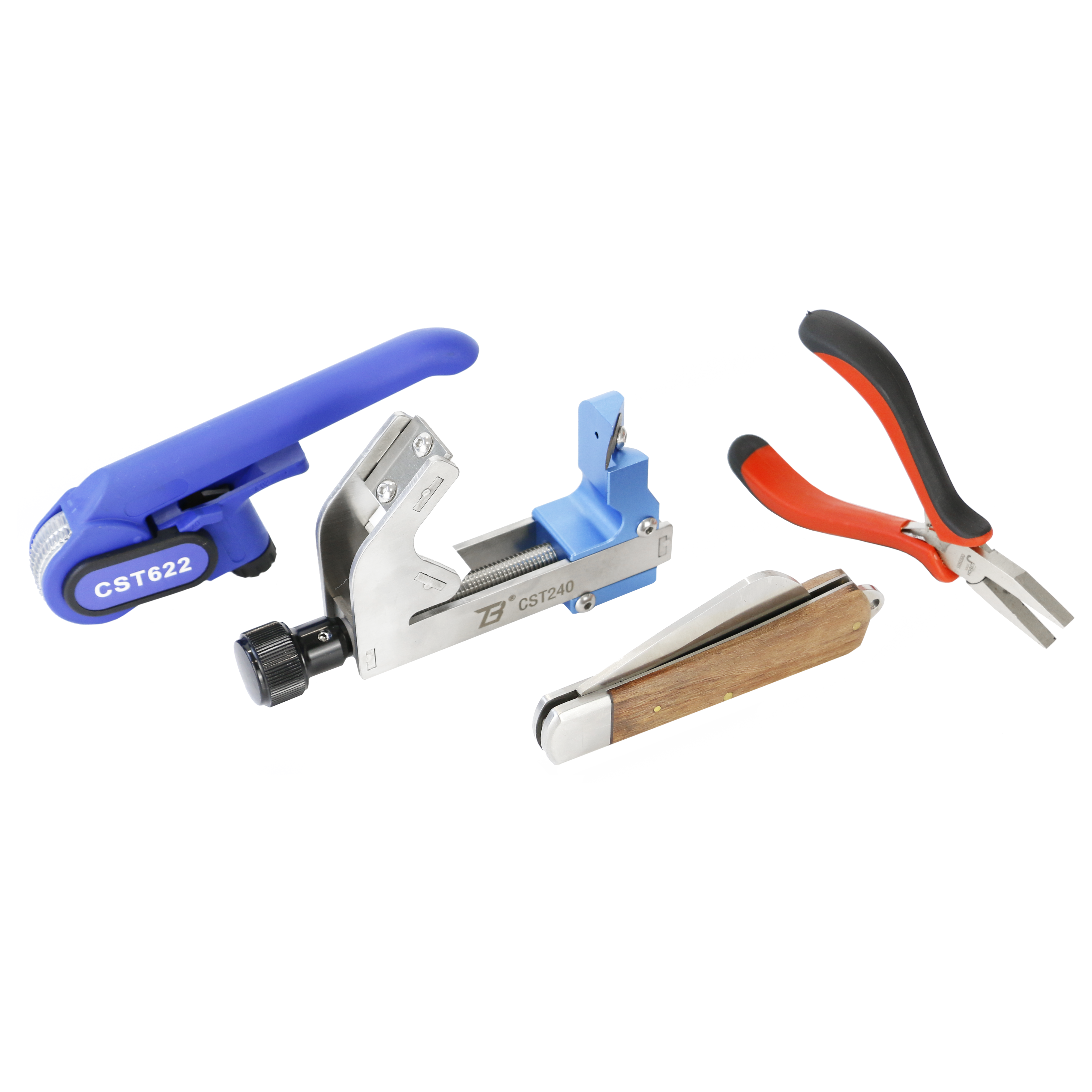

CST622 Cable Jacket Stripper
1.Application: strip jacket of 3-core cable
2.Applicable cable Dia.: ≥25mm
3.Cutting thickness: 5mm

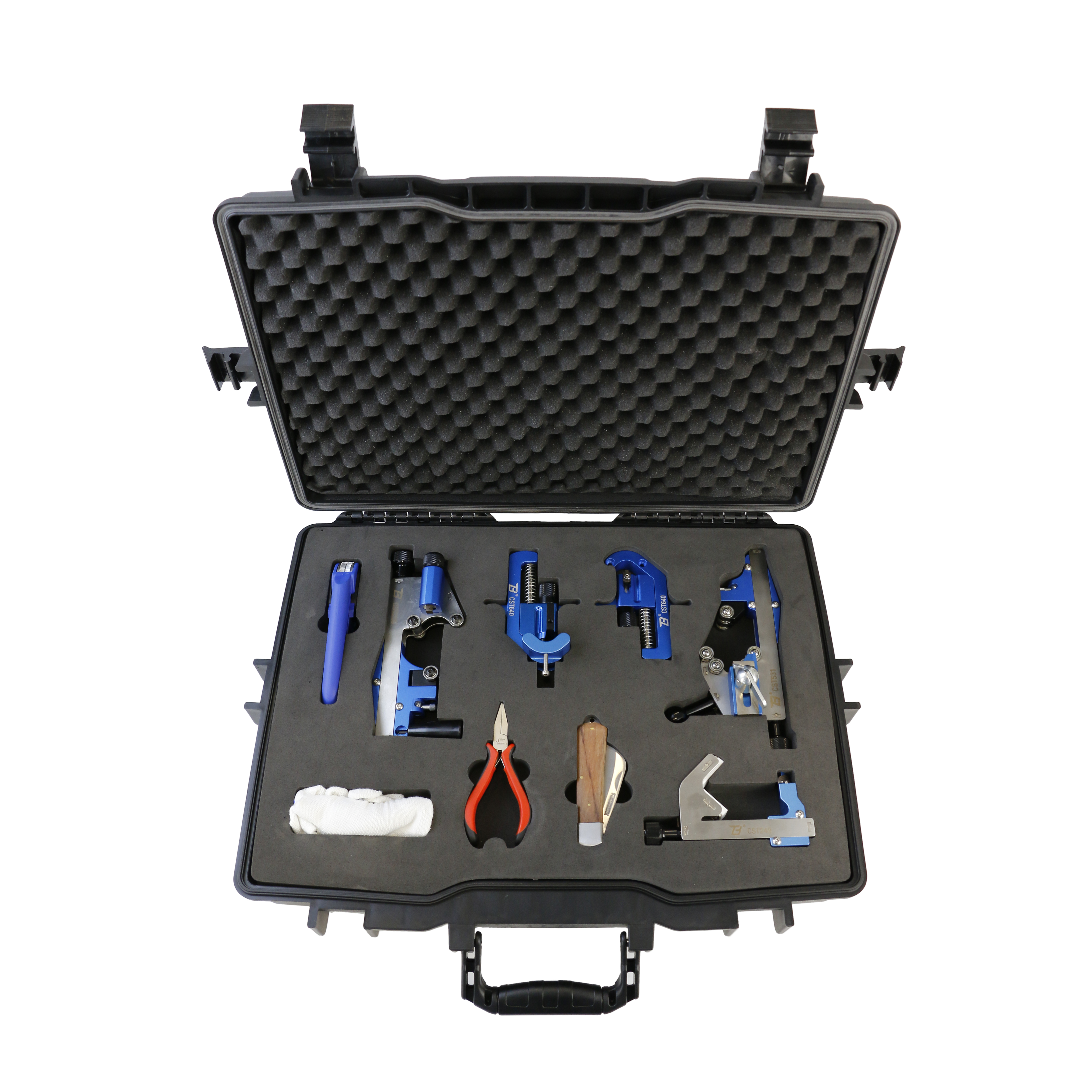

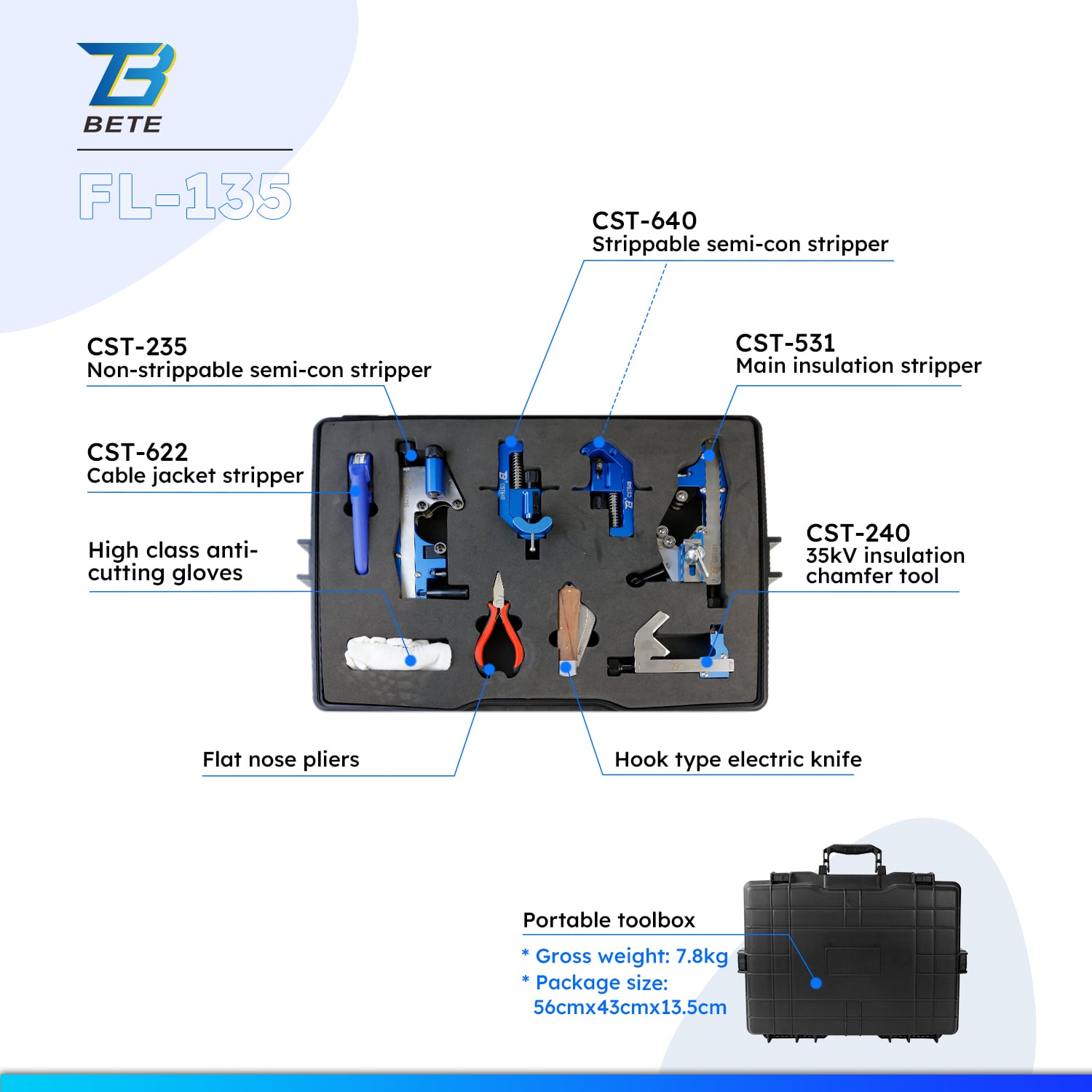

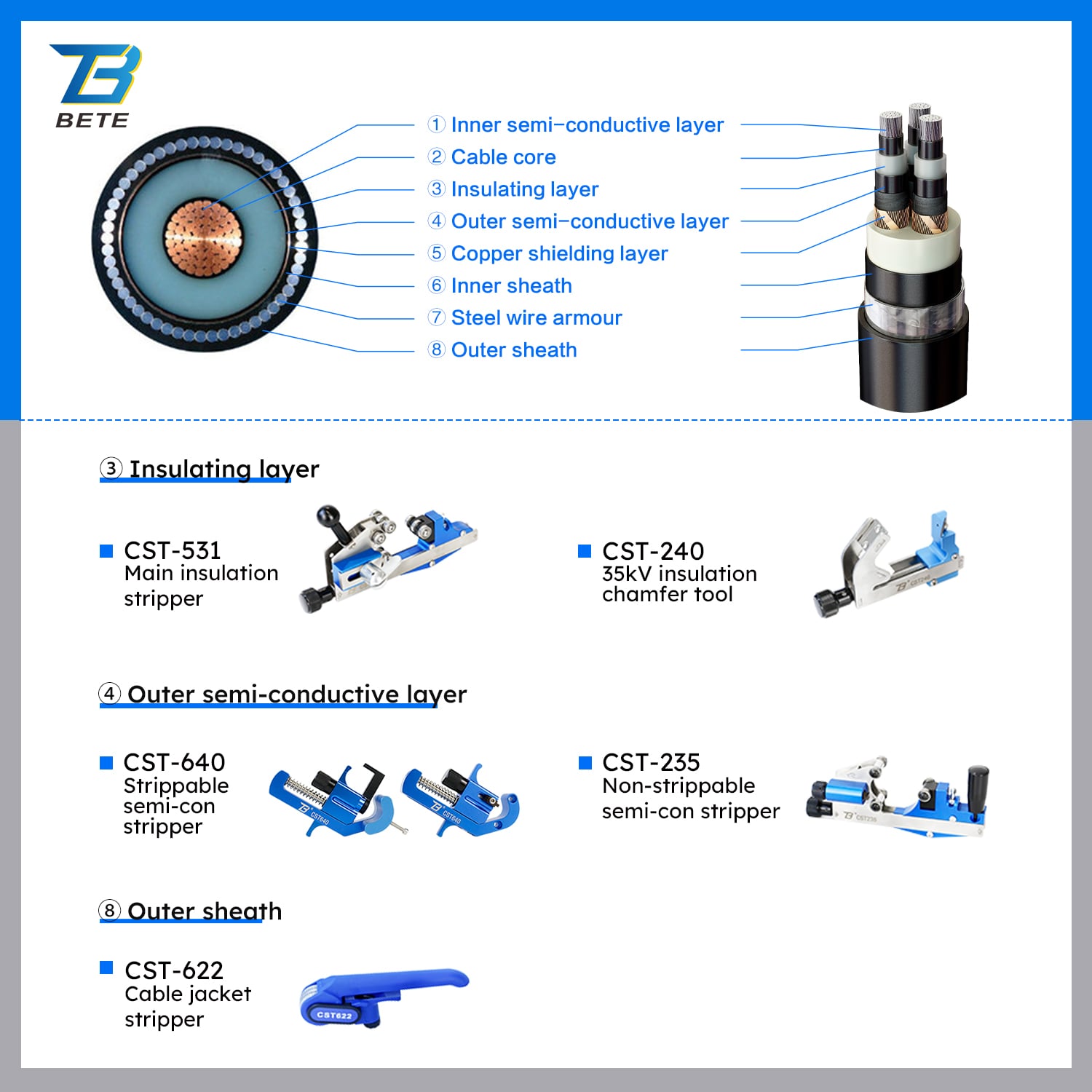

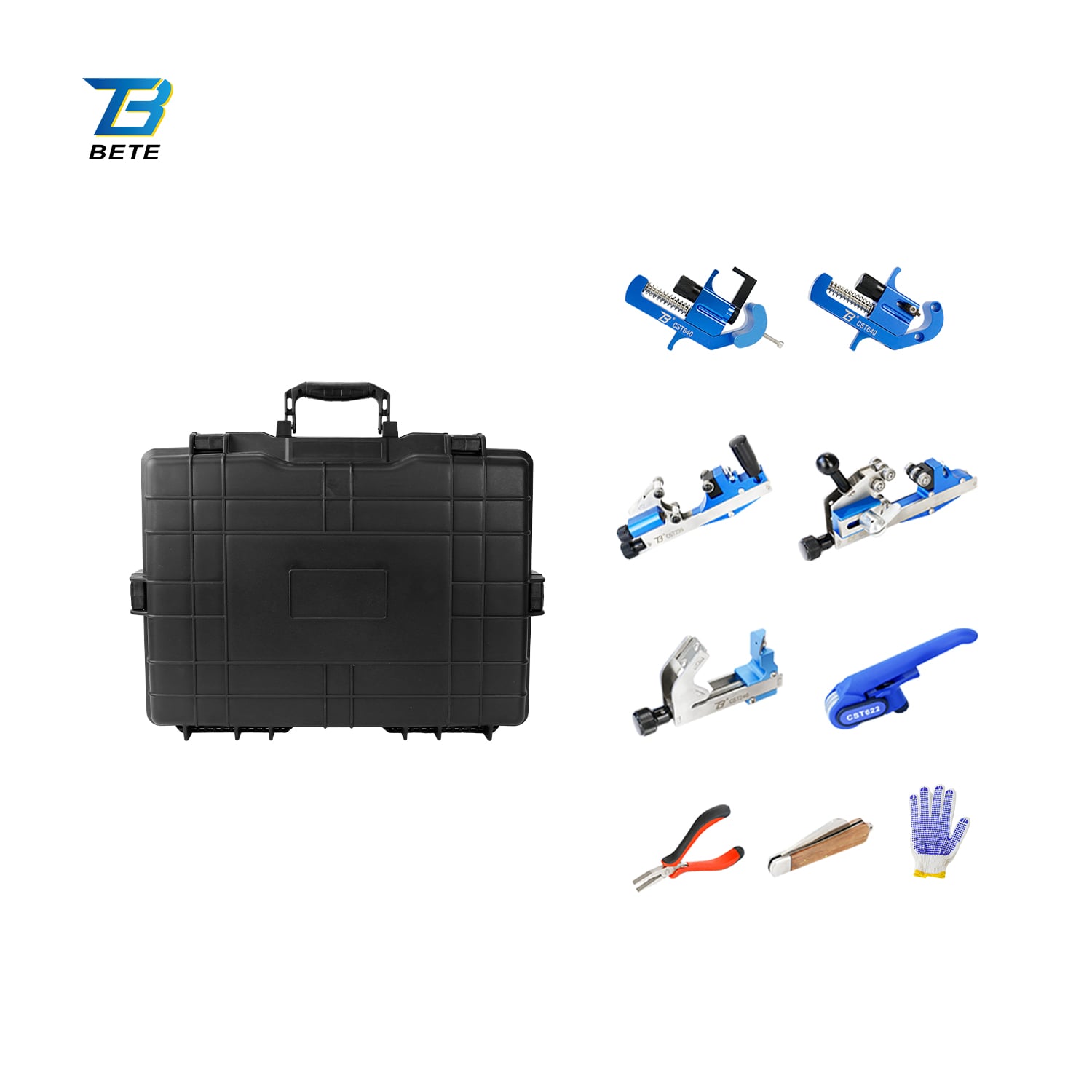

The FL series cable processing solution is a tool set designed to meet the requirements of improving work efficiency and ensuring work safety. It is most suitable for different construction occasions such as power transmission, live, distribution and maintenance operations. The entire design is integrated into a portable tool box. All tools are designed and produced according to the specifications and performance of the cable, providing a series of construction solutions such as cable sheath stripping, semi-conductive layer stripping, insulation stripping and insulation chamfering. The FL series cable processing solution is characterized by high flexibility, small size and strong functions, high productivity and work efficiency, easy and beautiful finished products, and no pollution or noise pollution to the working environment. This manual will help you complete the cable construction operation, making cumbersome steps into easy work and avoiding cable construction accidents.
