Gasoline Engine Pump
1.Retract pressure protection system
2.Low noise, environment friendly
3.Reservoir capacity：10L
4.Engine speed:3600rpm
◢ Dual-circuit manual control, with internal crimping return pressure protection system
◢ Large oil capacity, suitable for large capacity crimping tools and long-time operation without engine overheating

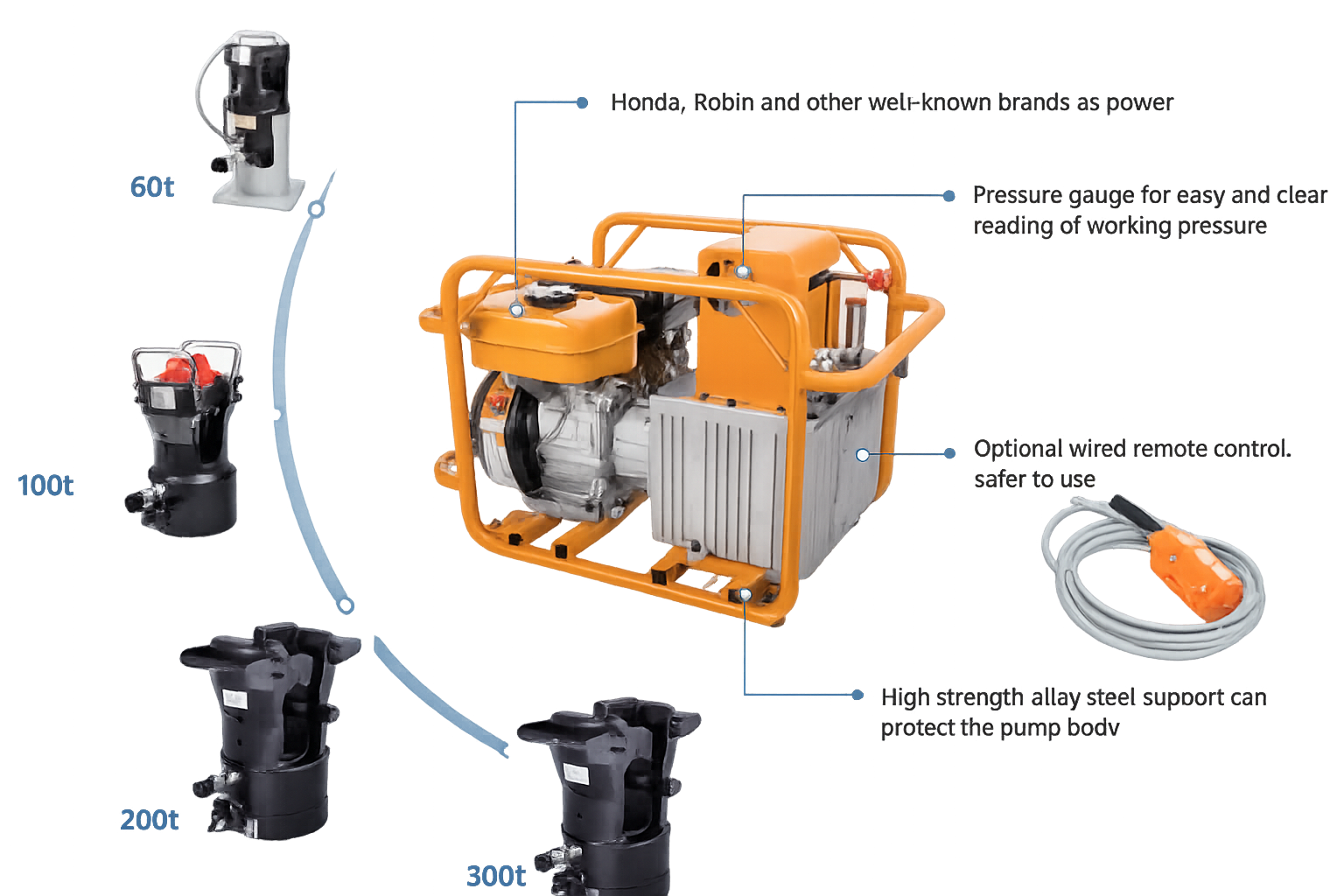

◢ High and low double-speed automatic switch, well-suited for single and double action tools such as 60t, 100t, 200t and 300t
◢ Rated working pressure: 70MPa Max working pressure: 85MPa
◢ Retract pressure protection system & overflow protection valve, safe and reliable
◢ Low noise, environmentally friendly
◢ Equipped with a pressure gauge for pressure reading
Rated Pressure |
700bar |
Oil Delivery at Low Pressure |
7.5L/min |
Oil Delivery at High Pressure |
1.2L/min |
Reservoir Capacity |
10L |
| Engine Speed | 3600 rpm |
| Net Weight | 50kg (oil not included) |
| Packing | Carton/wooden case |
| Packing Size | 70x46x70cm |

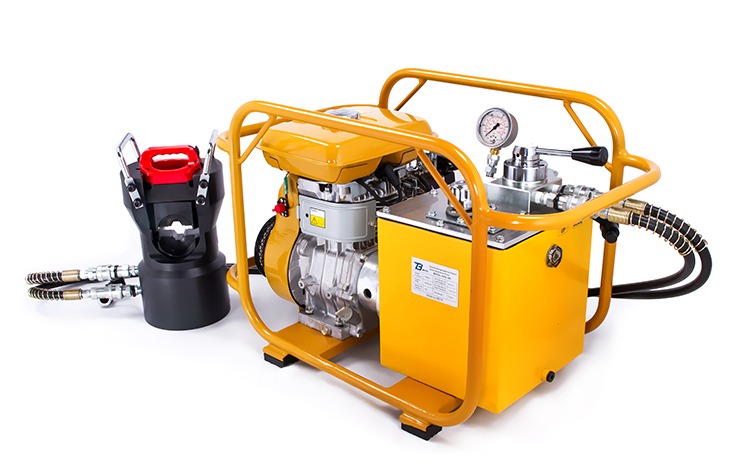

Presenting the HPG-700 High-Pressure Double-Acting Gasoline Pressure Manual Control Hydraulic Pump, just the right addition to virtually any hydraulic system. This pump effective created to offer dependable and efficient procedures in a variety of applications, making it a must-have for commercial, construction, or agricultural.
