LB-150A 15T Industrial Busbar Bending Machine | 150mm Width, 90° Precision, CE-Certified

Introduction

Fertures:

◢ Flip-open design, pick finished parts conveniently
◢ Portable for outdoor work, and can also be fixed in a workshop for batch work
◢ Used to bend Cu/Al busbar
◢ With scale to shoe bending angle; Max bending angle 90°
◢ Finished bending the surface smooth without wrinkles
◢ Quick coupler for easy disassembly
◢ Powered by a single-acting hydraulic pump

Output Force	15T
Rated Pressure	700bar
Bending Thickness	12mm
Bending Width	150mm
Oil Volume	180ml
Gross Weight	25kg
Packing	Steel case + carton case
Packing Size	44x22x32cm

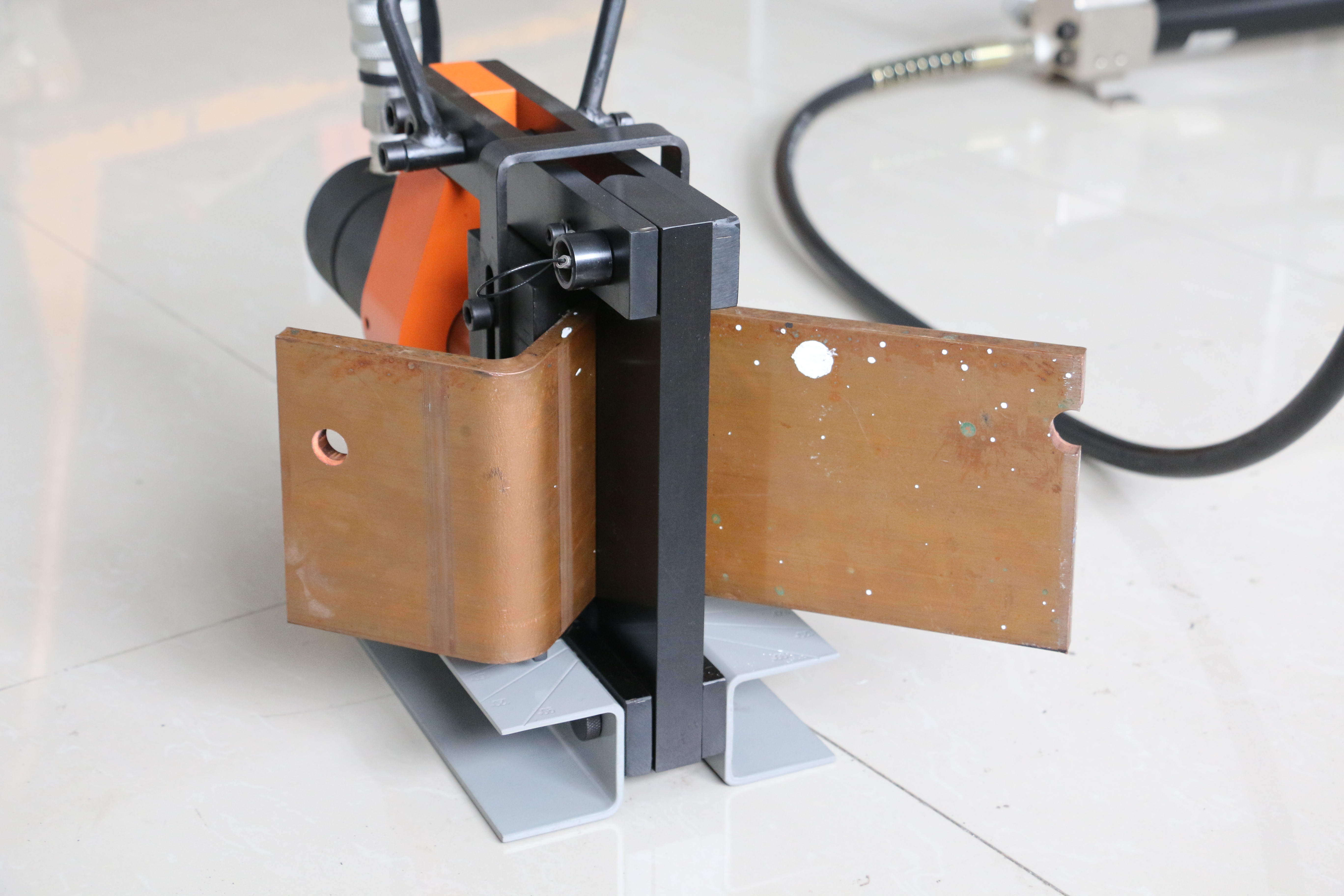

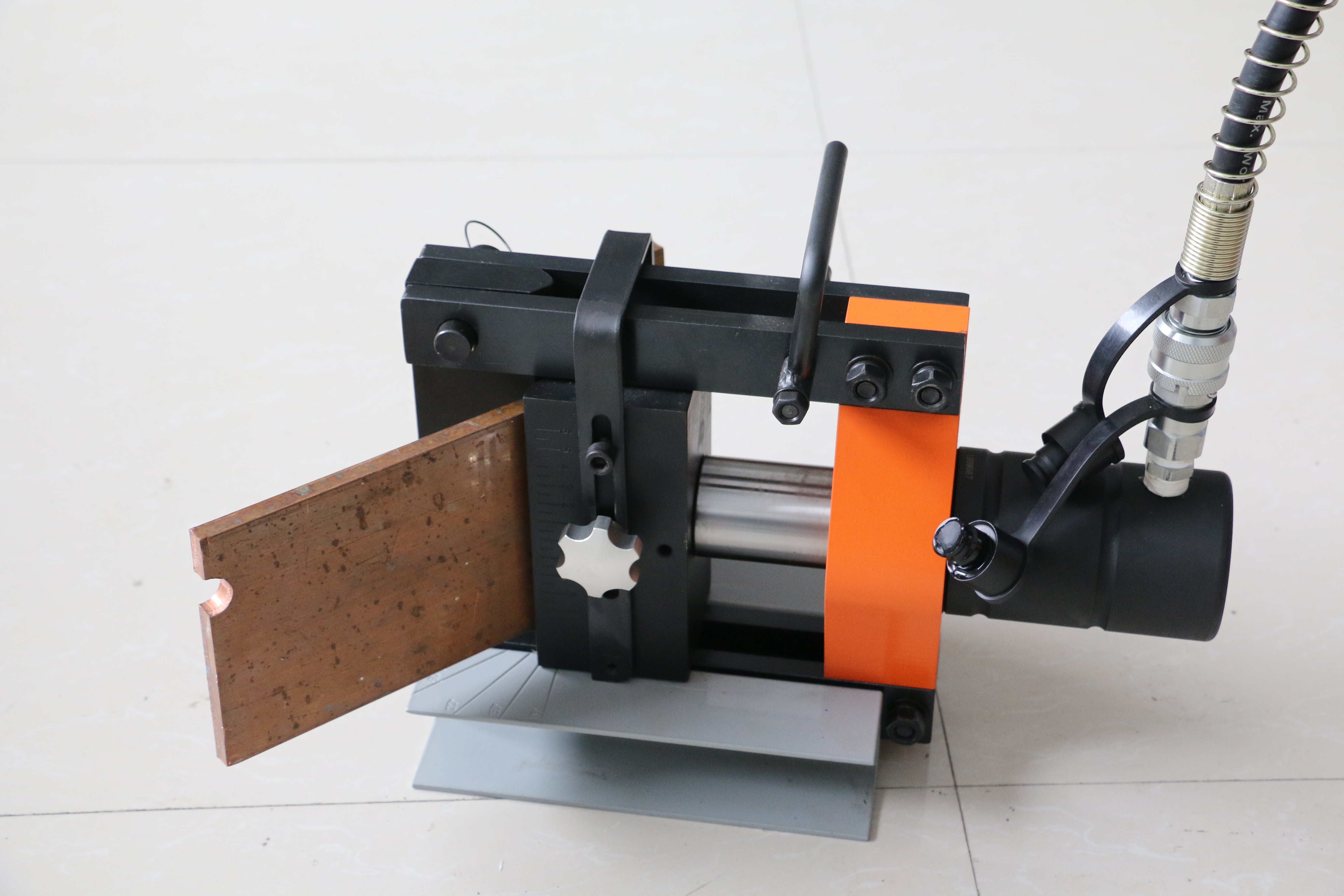

The BETE LB-150A 15T Hydraulic Copper Busbar Bending Machine is the ultimate solution for bending copper busbars up to 150mm wide. Ideal for power distribution cabinets, switchgear, and other electrical installations, this durable machine features a high-quality steel construction and a custom-designed bending die for accurate and repeatable results. Its versatility makes it an excellent addition to any metalworking workshop, allowing for various shapes and sizes. Key features include a flip-open design for easy part removal, portability for outdoor work, and the ability to be fixed in a workshop for batch production. It's designed for bending copper and aluminum busbars, offers a maximum bending angle of 90° with a clear scale, produces smooth, wrinkle-free bends, and has a quick coupler for easy disassembly. It is powered by a single-acting hydraulic pump.
