Introduction

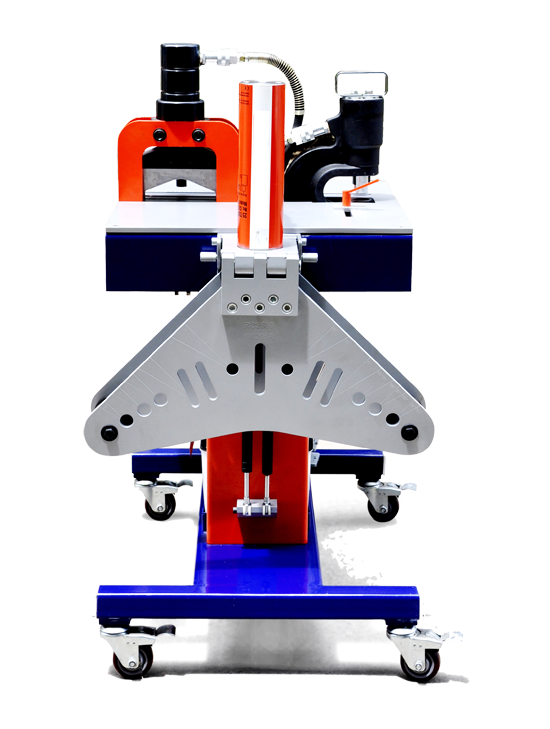

Multifunctional busbar processing machine with cutting, punching, andbending of copper and aluminum busbar.

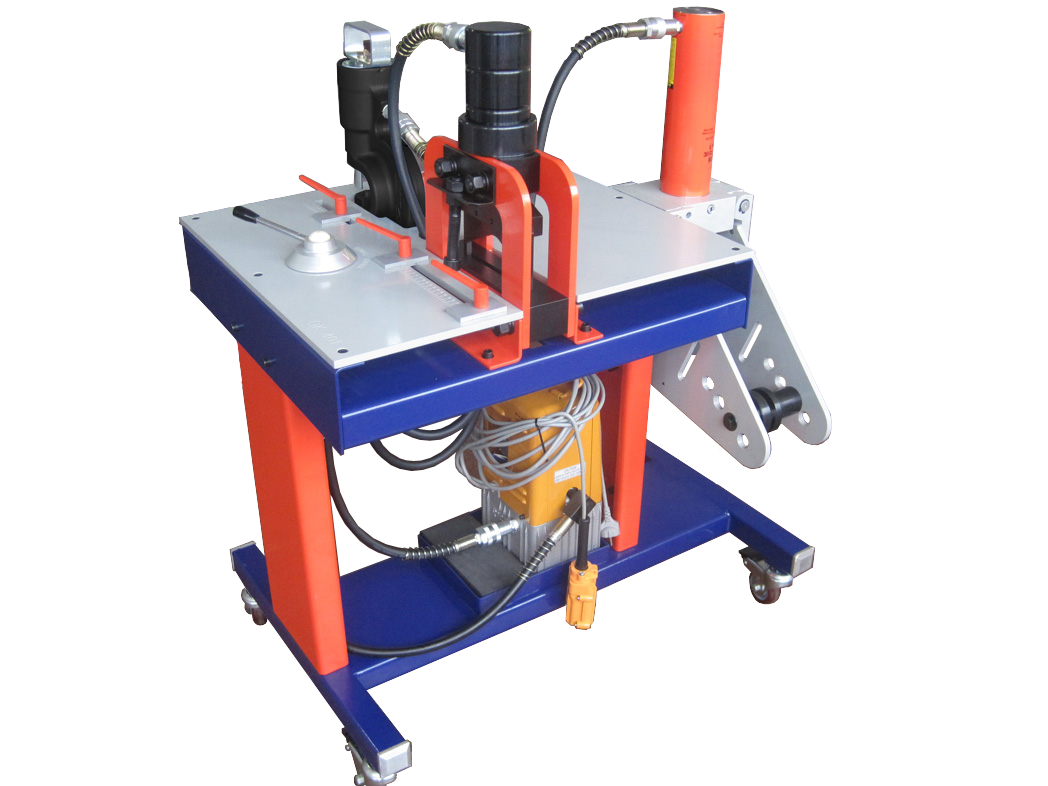

It includes electric hydraulic pump, hydraulic busbar cutting tool, punching tool,busbar and pipe bending tool and dies. With all these tools installed on a portable working bench, this multifunctional machine is widely praised for its efficiency, and convenience.

Features

◢ Bending capacity from 1° to 120 °

◢ With positioning scale for punching, cutting and bending

◢ Open working platform enable work piece not oblique after bending

◢ Punch holes with burr. Cutting surface smooth and cutting angle accurately. It is good for quick and repeat batch procession

◢ Four-way valve control switch accurately guide to the position of punching, cutting and bending

Model	OK-301	OK-401	OK-501
Function	Cutting, punching, horizontal bending	Cutting, punching, horizontal bending, vertical bending	Cutting, punching, horizontal bending, vertical bending, pipe bending
Input Power	220V 50Hz	220V 50Hz	220V 50Hz
Rated Pressure	700bar	700bar	700bar
Cutting Force	25t	25t	25t
Punching Force	31t	31t	31t
Bending Force	25t	25t	25t
Cutting Capacity	Cu/Al: 150mmx12mm	Cu/Al: 150mmx12mm	Cu/Al: 150mmx12mm
Horizontal Bending Capacity	Cu/Al: 150mmx12mm	Cu/Al: 125mmx16mm	Cu/Al: 125mmx16mm
Vertical Bending Capacity	--	Cu/Al: 125mmx12mm	Cu/Al: 125mmx12mm
Pipe Bending Capacity	--	--	3''
Punching Capacity	4-13 mm	4-13 mm	4-13 mm
Standard Punching Dies		Φ10.5, Φ13.5, Φ17.5, Φ20.5mm	Φ10.5, Φ13.5, Φ17.5, Φ20.5mm
Standard Bending Dies	--	Horizontal bending die, Vertical bending die base, 8pcs vertical bending dies (40-80x4, 40-80x5 40-80x6, 40-80x8, 40-80x10, 100x10, 100-125x10, 120-125x12); 6pcs support blocks (4, 5, 6, 8, 10, 12)
Work Bench Size	91x60x100cm	91x66x116cm	91x76x116cm
Weight	115kg	153kg	160kg
Optional Accessories	Φ 8.5, 11.5, 15.5, 18.5mm punching dies (pipe bending dies 1-1/4'' is optional)
