PCS-12042 Crimping Head 12t

1.Head rotate 360 degrees

2.Equipped with quick coupler

3.Crimping capacity：max 400mm²

4.Standard dies：Cu50-400mm²

Introduction

Model	PCS-12042
Crimping Force	12T
Stroke	42mm
Rated Pressure	700bar
Crimping capacity	Max 400mm2
Standard dies	Cu50-400 mm2
Net Weight	4.8kg
Gross Weight	7.4kg
Dimensions	36x12x7cm
Packing Size	41x13x8cm(canvas bag)

Features:

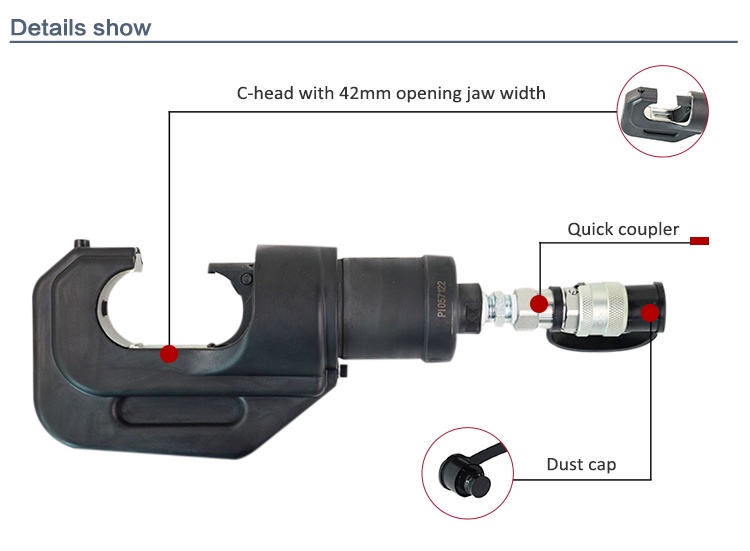

◢ C-head with 42mm opening jaw, connector easy pick & place
◢ Suitable for crimping cable terminal, C-clamp, connector and overhead line
◢ Head rotate 350°, suitable for narrow space operation
◢ Equipped with quick coupler, easy to disassemble
◢ Powered by single acting hydraulic pump
