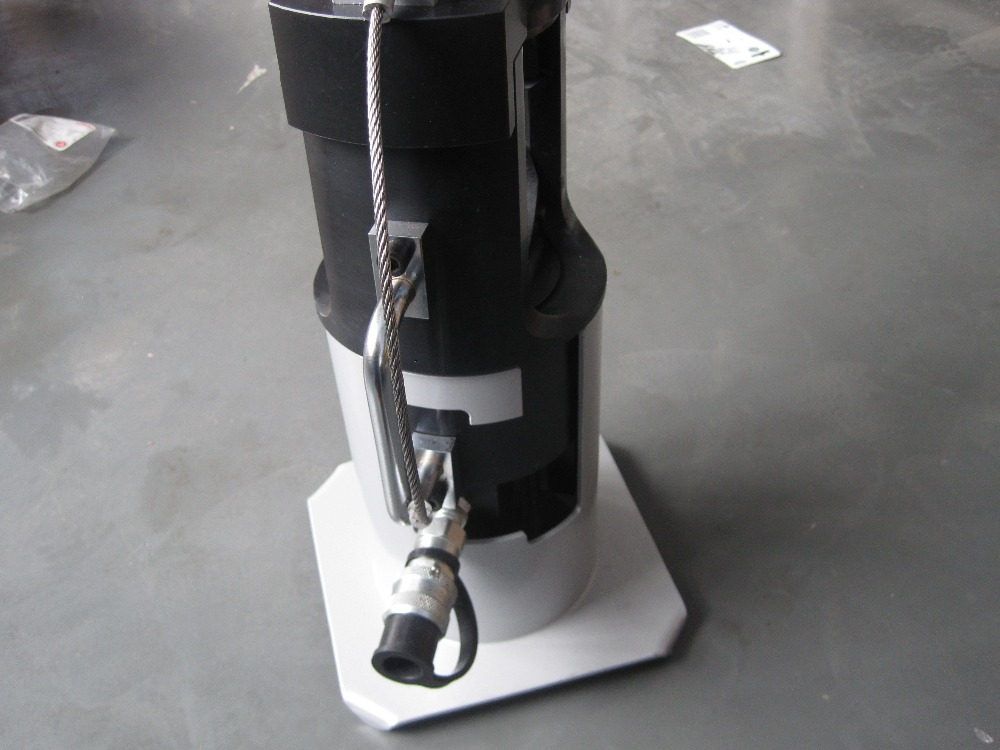

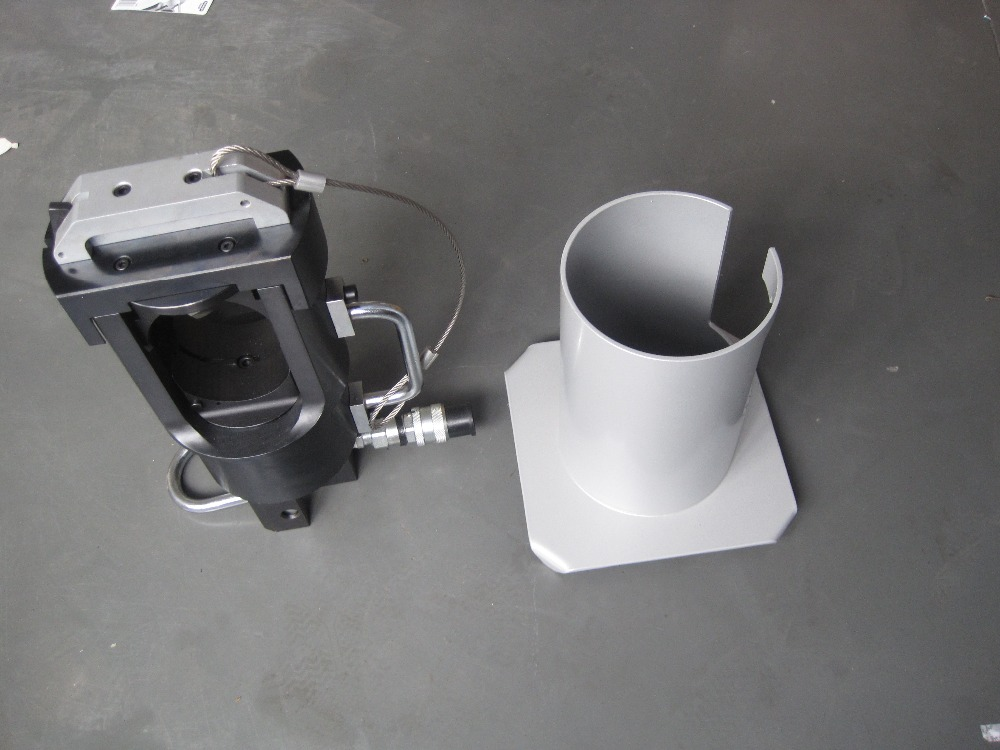

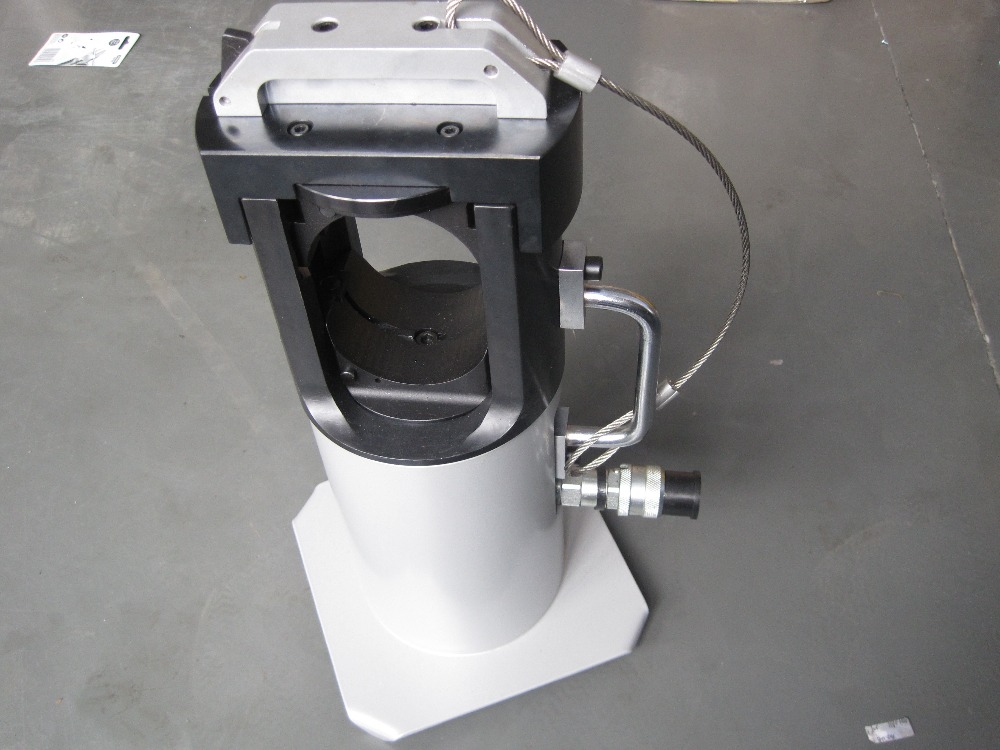

PCS-60A Hydraulic Crimping Head 60t

1.Crimping Force:60t

2.Quick coupler for easy disassembly

3.Powered by single acting hydraulic

4.Crimping capacity：Cu/Al Max 60 mm

Steel Max 26mm

Introduction
More Products

Introduction

BETE takes pride in creating top-notch tools that are created to last. The PCS-60A isn't an exception, with durable construction designed to withstand heavy use and tough conditions. Its tough design guarantees dependability and lasting performance even in the most demanding working environment.

Crimping force	60t
Stroke	38. 5mm
Rated pressure	700bar
Crimping capacity	Max Cu/Al: 60mm, max steel: 26mm
Net Weight	23.4kg
Gross Weight	29.4kg
Packing	Steel case + carton case
Dimensions	242245cm
Packing Size	51x27x23cm

Features:
◢ Crimp overhead line ACSR, splicing sleeves, and strain clamp for 110kV to 220kV power transmission line
◢ The head is the upper die ﬁxed seat, which can be rotated and quickly opened for middle and end crimping operations
◢ Quick coupler for easy disassembly
◢ Powered by a single-acting hydraulic

The PCS-60A Force 60T Hydraulic Crimping Head Tool For Cu Al, ACSR. This ideal device is effective in crimping a lot of different materials, including copper, aluminum, ACSR cables, and wires.

Designed with simplicity and effectiveness in mind, it offers a versatile range of crimping capabilities. Its 60-ton force enables it to confidently crimp a lot of different cable sizes and diameters with simplicity, ensuring a protected and durable connection.

The hydraulic system in this was made for dependable and constant gratification. Its smooth procedure delivers seamless crimping that reduces hand weakness and increases efficiency.
