Aluminum Hydraulic Cylinder Series

The Aluminum Hydraulic Cylinder Series combines high lifting capacity with lightweight portability, making it ideal for applications where weight reduction, mobility, and operational efficiency are critical. Manufactured from high-strength 7075-T6 aluminum alloy, these cylinders deliver excellent performance, corrosion resistance, and durability.

Introduction
More Products

Introduction

BETE Aluminum Hydraulic Cylinder Series is engineered to provide powerful hydraulic lifting solutions while significantly reducing equipment weight compared to traditional steel cylinders. Designed for field operations, maintenance projects, and applications requiring frequent transportation, these cylinders offer an ideal balance of strength, portability, and reliability.

Products Features

1. RAC Series Single-acting Aluminum Alloy Hydraulic Cylinder

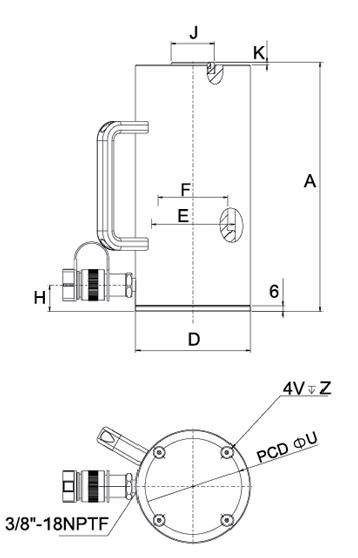

RAC Series Single-acting Aluminum Alloy Hydraulic Cylinder.png

◢ Aluminum alloy construction, lightweight & portable
◢ 7075-T6 aluminum alloy for maximum capacity with minimum weight
◢ Anodized pads and cylinder body for wear resistance and longer service life
◢ High-strength spring for fast plunger retraction
◢ Multi-layer oil seal design to reduce friction and resist side load damage
◢ Top nut prevents plunger over-extension
◢ All models are supplied with a 3/8 NPT quick coupler and a dust cap

Handle Type(S)	Model	Ton (t)	Stroke (mm)	Pressure Area (cm²)	Oil Volume (cm³)	Closed Height A(mm)	Extended Height (mm)	Outer Dia. D(mm)	Inner Dia. E(mm)	Ram Dia. F(mm)	Weight (kg)
■	RAC-202	20	50	31.2	156	174	224	85	63	50	3.6
■	RAC-204	20	100	31.2	312	224	324	85	63	50	4.1
■	RAC-206	20	150	31.2	468	274	424	85	63	50	4.6
■	RAC-302	30	50	44.2	221	181	231	100	75	60	4.5
■	RAC-304	30	100	44.2	442	231	331	100	75	60	5.2
■	RAC-306	30	150	44.2	663	281	431	100	75	60	5.9
■	RAC-502	50	50	70.9	354	186	236	130	95	80	8.5
■	RAC-504	50	100	70.9	709	236	336	130	95	80	9.8
■	RAC-506	50	150	70.8	1063	286	436	130	95	80	11.1
■	RAC-1004	100	100	143.1	1431	271	371	180	135	110	19.6
■	RAC-1006	100	150	143.1	2147	321	471	180	135	110	21.9
■	RAC-1008	100	200	143.1	2863	371	571	180	135	110	24.2
■	RAC-1506	150	150	227	3405	343	493	230	170	140	33.3

2. RAR Series Double-acting Aluminum Alloy Hydraulic Cylinder

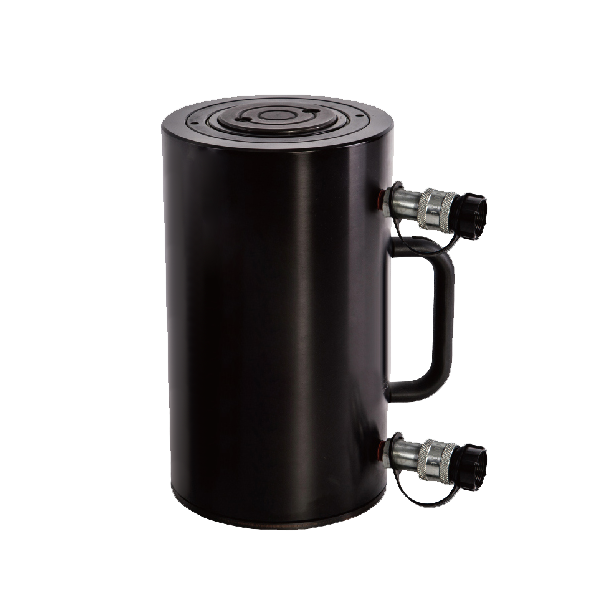

RAR Series Double-acting Aluminum Alloy Hydraulic Cylinder.png

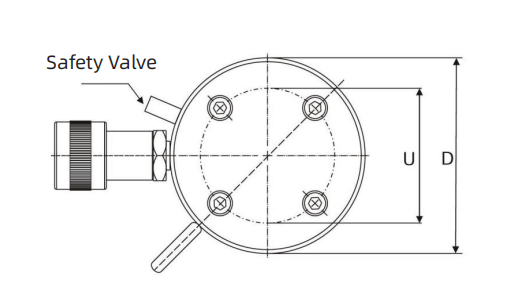

RAR Series Technical drawings

◢ Aluminum alloy design, lightweight and portable
◢ Manufactured from 7075-T6 aluminum alloy for maximum capacity with minimum weight
◢ Anodized cylinder body and support block for wear resistance and extended service life
◢ High-strength spring for fast piston rod retraction
◢ Multi-layer oil seal design reduces metal friction and prevents side-load damage
◢ Top nut protects against piston rod over-travel
◢ All models include a 3/8 NPT quick coupler and a dust cap

Hydraulic Power Unit
Double-acting hydraulic jacks must be matched with hydraulic power units equipped with 4-port valves.

Hydraulic Cylinder Capacity Selection
Hydraulic cylinders with a capacity exceeding 1000 tons are also available for manufacturing.

RAR Series Double-acting Aluminum Alloy Hydraulic Cylinder Technical drawings.png

Model	Ton (t)	Stroke (mm)	Force (t) Push	Force (t) Pull	Pressure Area(mm2) Push	Pressure Area(mm2) Pull	Oil Volume (cm3) Push	Oil Volume (cm3) Pull	Closed Height A (mm)	Extended Height B (mm)	Inner Dia. D(mm)	Outer Dia. E(mm)	Ram Dia. F(mm)	Bottom Inlet Port Position	Top Inlet Port Position	Spacer Pad Dia. J(mm)	Protrusion Height K (mm)	Weight (kg)
RAR-202	20	50	218	130	31.2	18.6	156	93	189	239	113	63	40	30	50	30	3	7.4
RAR-204	20	100	218	130	31.2	18.6	312	186	239	339	113	63	40	30	50	30	3	8
RAR-206	20	150	218	130	31.2	18.6	468	279	289	439	113	63	40	30	50	30	3	8.6
RAR-208	20	200	218	130	31.2	18.6	624	372	339	539	113	63	40	30	50	30	3	9.2
RAR-2010	20	250	218	130	31.2	18.6	780	465	389	639	113	63	40	30	50	30	3	9.8
RAR-302	30	50	309	171	44.2	24.5	221	123	201	251	125	75	50	30	55	40	3	8.6
RAR-304	30	100	309	171	44.2	24.5	442	245	251	351	125	75	50	30	55	40	3	9.5
RAR-306	30	150	309	171	44.2	24.5	663	368	301	451	125	75	50	30	55	40	3	10.4
RAR-308	30	200	309	171	44.2	24.5	884	490	351	551	125	75	50	30	55	40	3	11.3
RAR-3010	30	250	309	171	44.2	24.5	1105	613	401	651	125	75	50	30	55	40	3	12.2
RAR-502	50	50	496	187	70.9	26.7	354	134	201	251	145	95	75	30	56	50	3	11.1
RAR-504	50	100	496	187	70.9	26.7	709	267	251	351	145	95	75	30	56	50	3	12.7
RAR-506	50	150	496	187	70.9	26.7	1063	401	301	451	145	95	75	30	56	50	3	14.3
RAR-508	50	200	496	187	70.9	26.7	1417	534	351	551	145	95	75	30	56	50	3	15.9
RAR-5010	50	250	496	187	70.9	26.7	1771	668	401	651	145	95	75	30	56	50	3	17.5
RAR-1002	100	50	1002	556	143.1	79.5	715	398	251	301	185	135	90	43	80	75	3	16.4
RAR-1004	100	100	1002	556	143.1	79.5	1431	795	301	401	185	135	90	43	80	75	3	19.3
RAR-1006	100	150	1002	556	143.1	79.5	2147	1193	351	501	185	135	90	43	80	75	3	22.2
RAR-1008	100	200	1002	556	143.1	79.5	2863	1590	401	601	185	135	90	43	80	75	3	25.1
RAR-10010	100	250	1002	556	143.1	79.5	3578	1988	451	701	185	135	90	43	80	75	3	28
RAR-1502	150	50	1589	924	227	132	1135	660	248	298	230	170	110	38	75	113	3	24.2
RAR-1504	150	100	1589	924	227	132	2270	1320	298	398	230	170	110	38	75	113	3	28.9
RAR-1506	150	150	1589	924	227	132	3405	1980	348	498	230	170	110	38	75	113	3	33.2
RAR-1508	150	200	1589	924	227	132	4540	2610	398	598	230	170	110	38	75	113	3	37.9
RAR-15010	150	250	1589	924	227	132	5675	3300	448	698	230	170	110	38	75	113	3	42.6

Application

The Aluminum Hydraulic Cylinder Series is designed for lifting, positioning, maintenance, and load-handling applications where portability and ease of transportation are critical. Manufactured from high-strength 7075-T6 aluminum alloy, these cylinders provide the same powerful performance as conventional steel cylinders while significantly reducing overall weight.

Widely used in construction, bridge maintenance, power generation, mining, railway systems, shipbuilding, and industrial plant maintenance, the series is particularly suitable for field operations that require frequent equipment relocation. The lightweight design helps improve operator efficiency, reduce transportation effort, and simplify setup in remote or hard-to-access working environments while maintaining reliable lifting performance and durability.
