ECT-120UNV Multi-functional Electric Cable Crimping Tool 12t

ECT-120UNV Multi-functional Electric Cable Crimping Tool 12t

1. Crimping head rotates 360°
2.Automatic pressure release
3.Crimping capacity：Max 400mm²
4.Punching Capacity：Angle Steel: 6mm thicknessBasbar Cu/Al: Max 6.5mm thickness
5.Cutting Capacity：Max 44mm ACSR

Introduction
More Products

Introduction

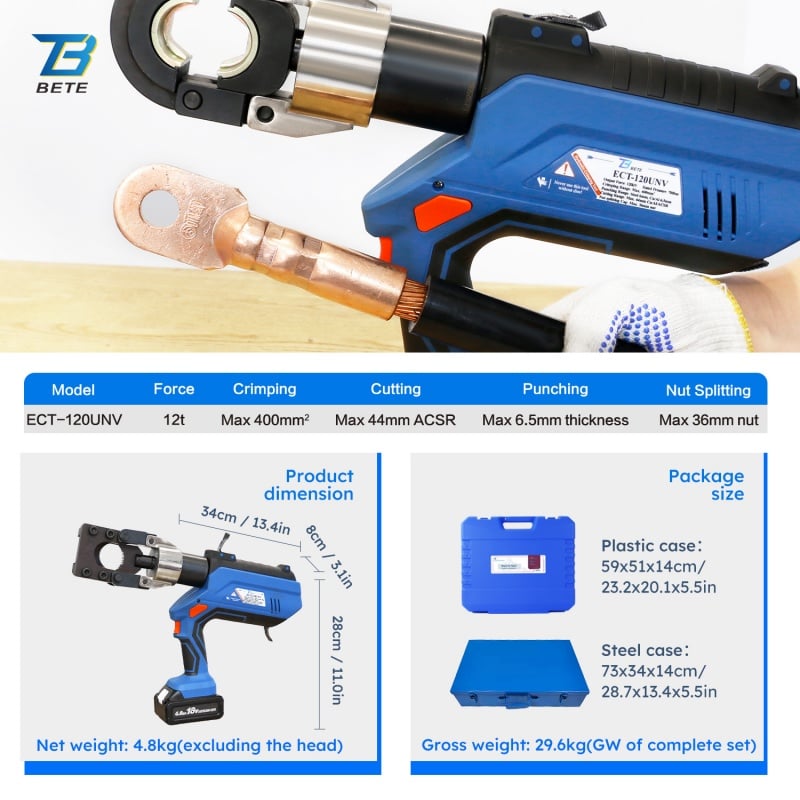

Product Specifications

Model	ECT-120UNV
Crimping Force	12T
Rated Pressure	700bar
Crimping Capacity	Max 400mm2
Punching Capacity	Angle Steel: 6mm thickness Busbar Cu/Al: Max. 6.5 mm thickness
Punching Capacity
Cutting Capacity	Max 44mm ACSR
Nut Splitting Capacity	Max 36mm Nut
Net Weight	4.8kg(excluding the head)
Gross Weight	29.6kg(GW of complete set)

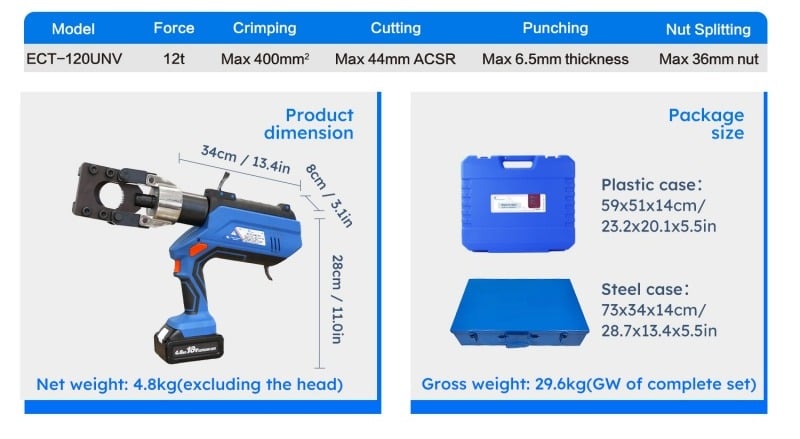

Dimensions	34x28x8cm
Packing Size	59x51x14cm-plastic case 73x34x14cm-steel case

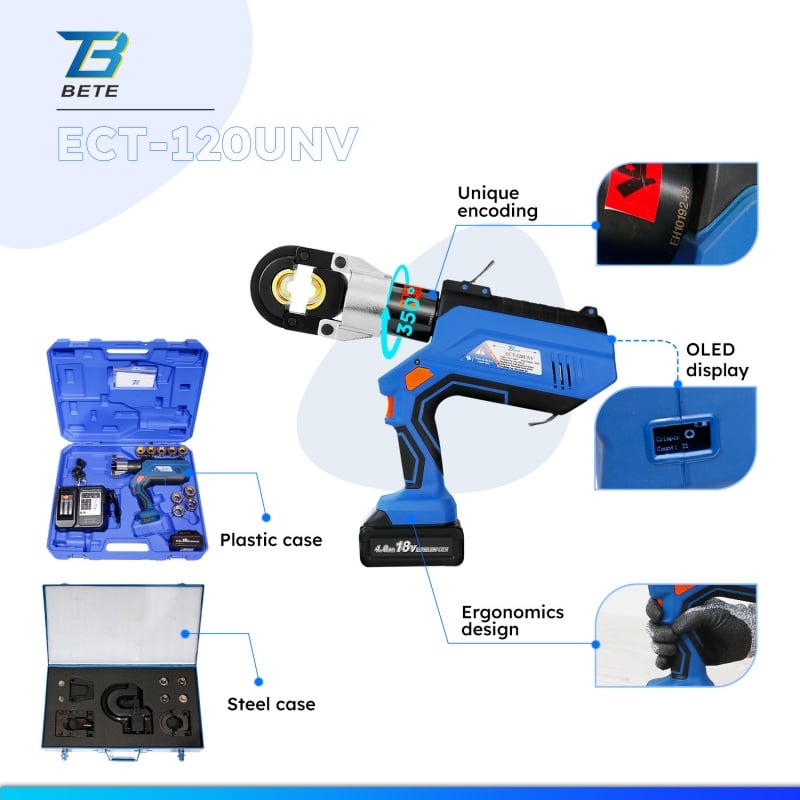

Features:

◢ One tool for multifunction: crimping, cutting, punching, and nut splitting
◢ Flip-open head, crimping head rotates 360°

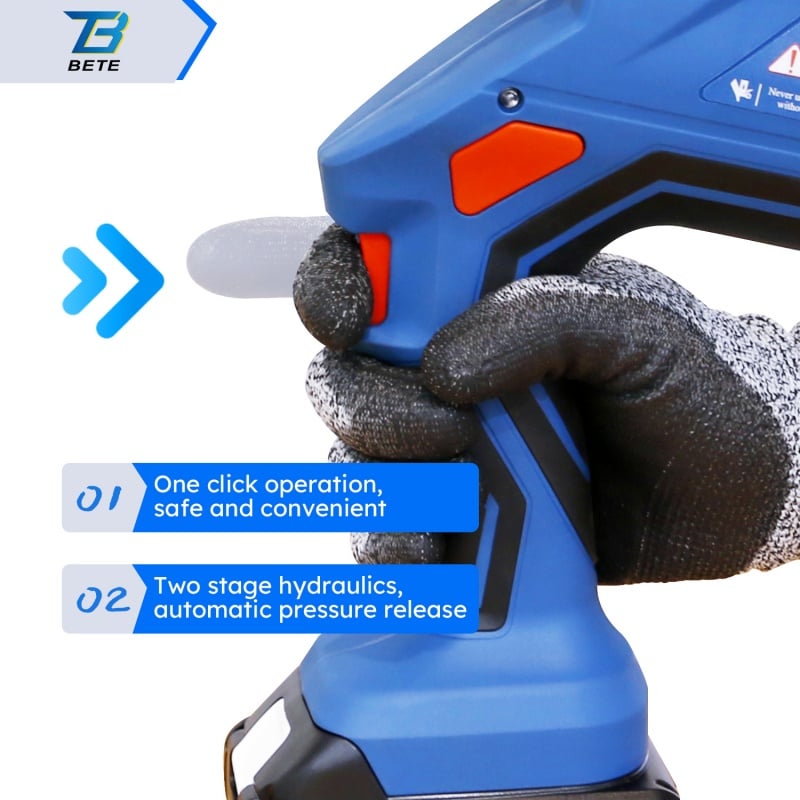

◢ Two-stage hydraulics, automatic pressure release
◢ Built-in intelligent computer chip, OLED display makes it easy to read information
◢ Equipped with an LED work light to make work easier
◢ High-capacity 18V power-on display lithium battery, with fast charger
◢ PP plastic, molding in one, strong and anti-impact

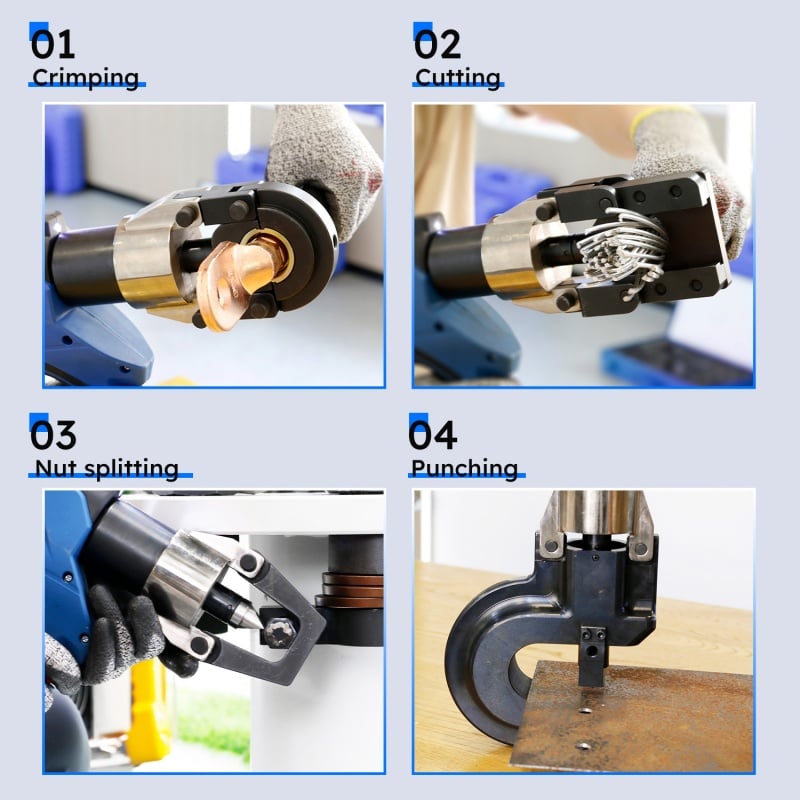

Crimping	Cutting

Nut splitting	Punching

Standard	1PC	Crimping dies	9 pcs(Cu50-400mm2）
Crimping head	1PC	Blade holder	1PC
Cutting head	1PC	Nut splitting blade	2PCS
Nut crushing head	1PC	Punching dies	4 pcs(10.5 13.5 17.5 20.5)
Punching head	1PC	Lithium batteries	2
Main unit	1	Durable toolbox	1
Shoulder strap	1	Fast charger	1
		Steel case	1

Application

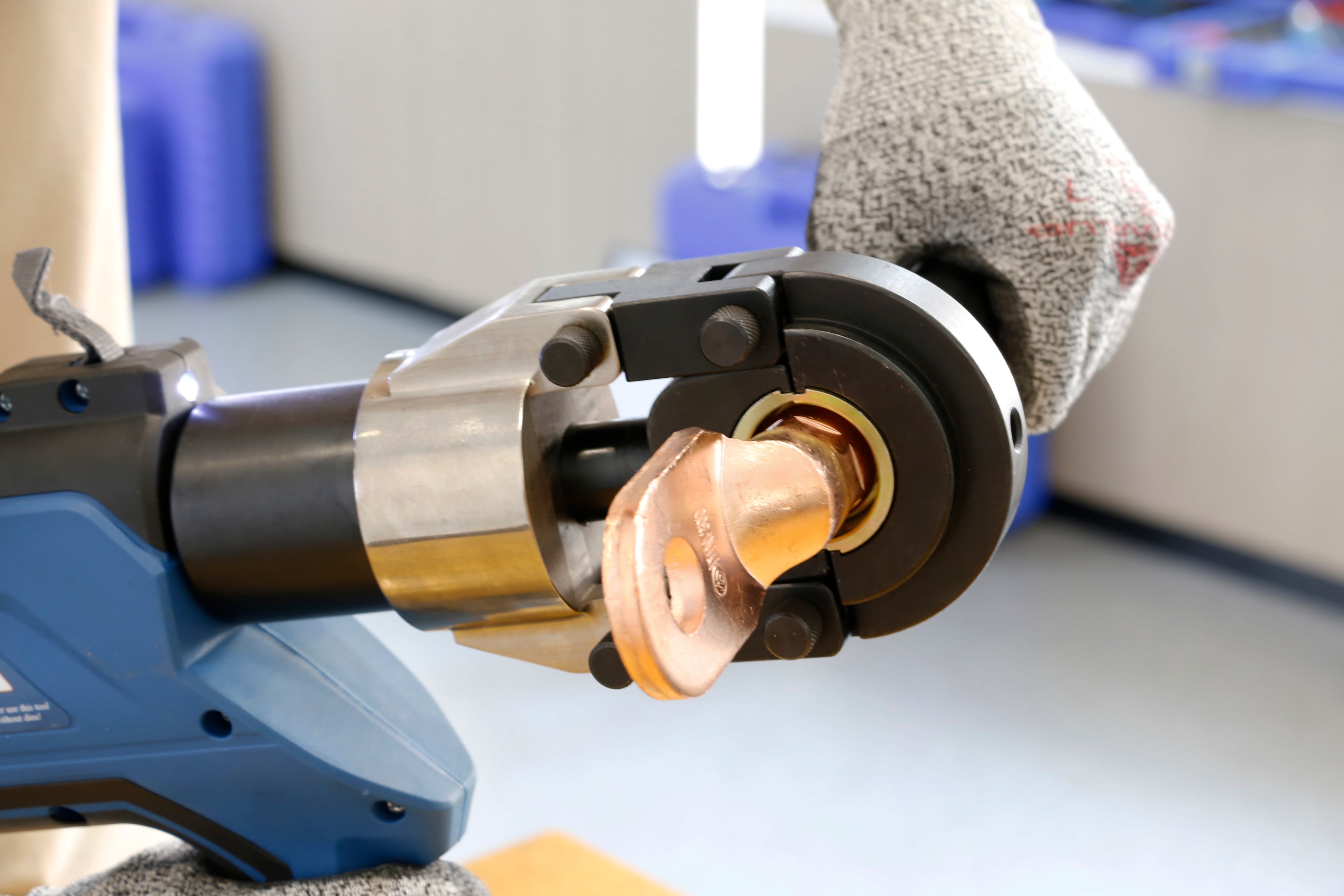

Cable Crimping

◆ Copper and aluminum cable terminals and lugs
◆ Power cable connectors and compression joints
◆ Cable connection work in power distribution systems

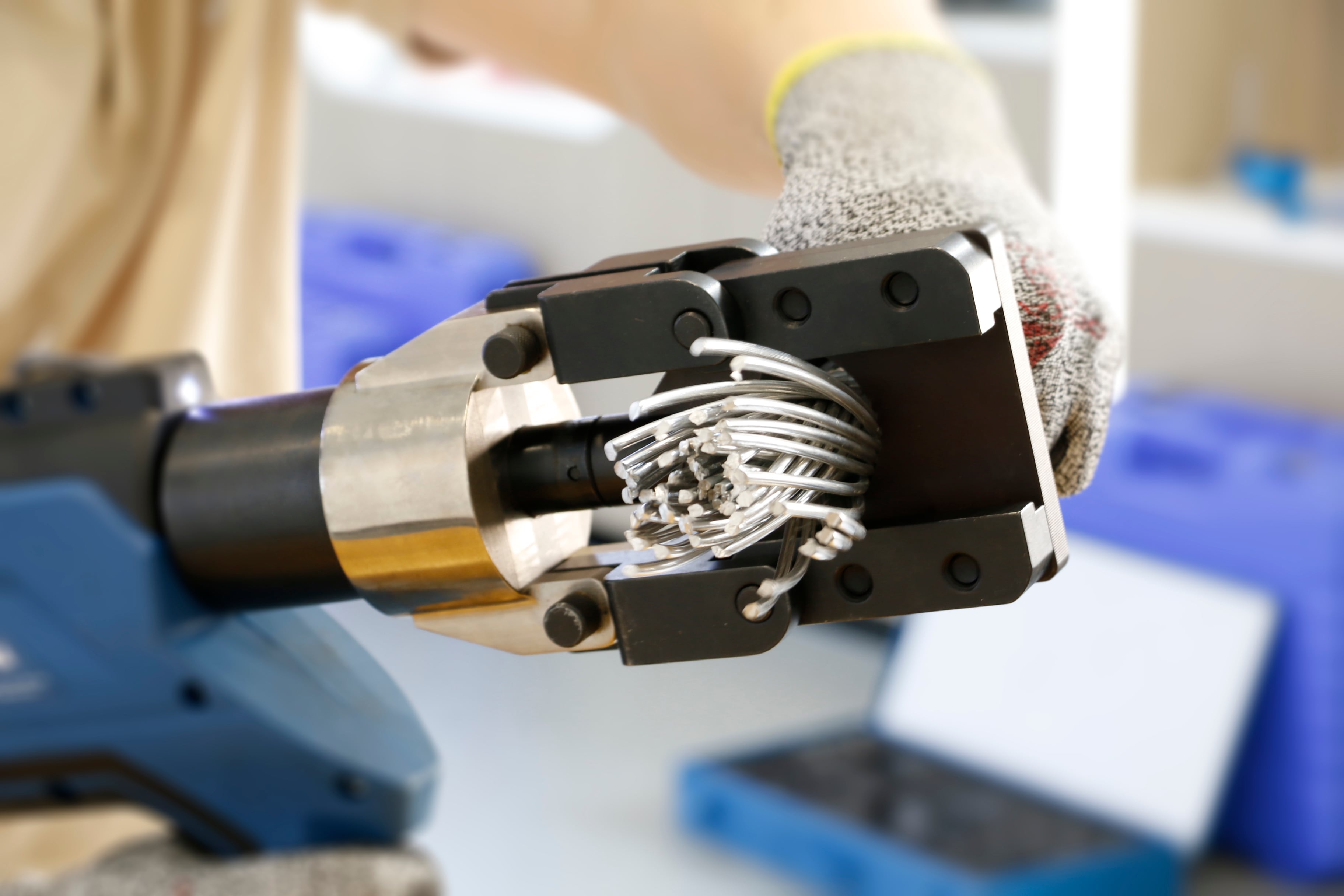

Cable Cutting

◆ Copper and aluminum power cables
◆ ACSR and overhead conductors
◆ Cable preparation and maintenance operations

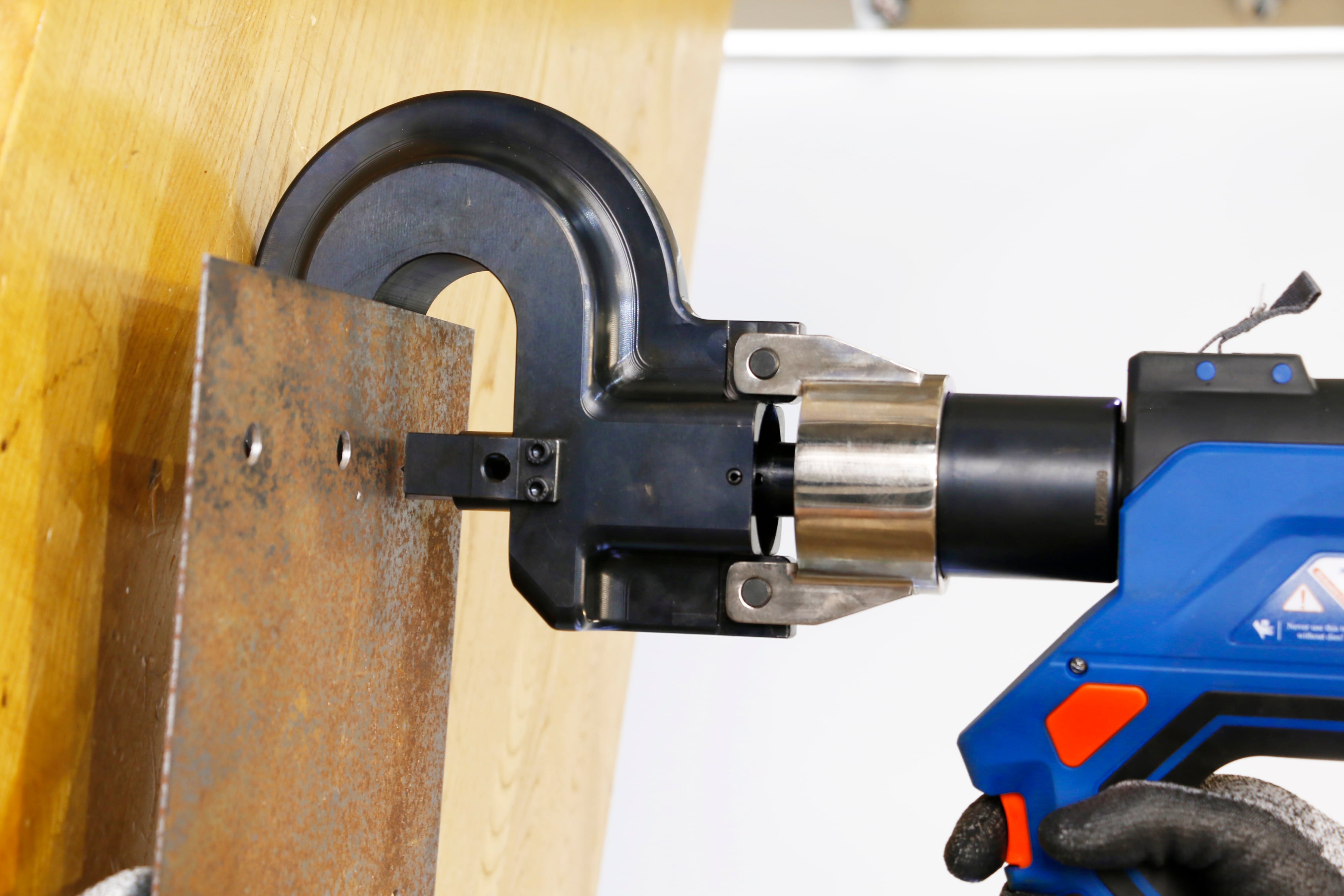

Metal Punching

◆ Copper and aluminum busbars up to 6.5mm thickness
◆ Angle steel up to 6mm thickness
◆ Electrical installation and substation construction work

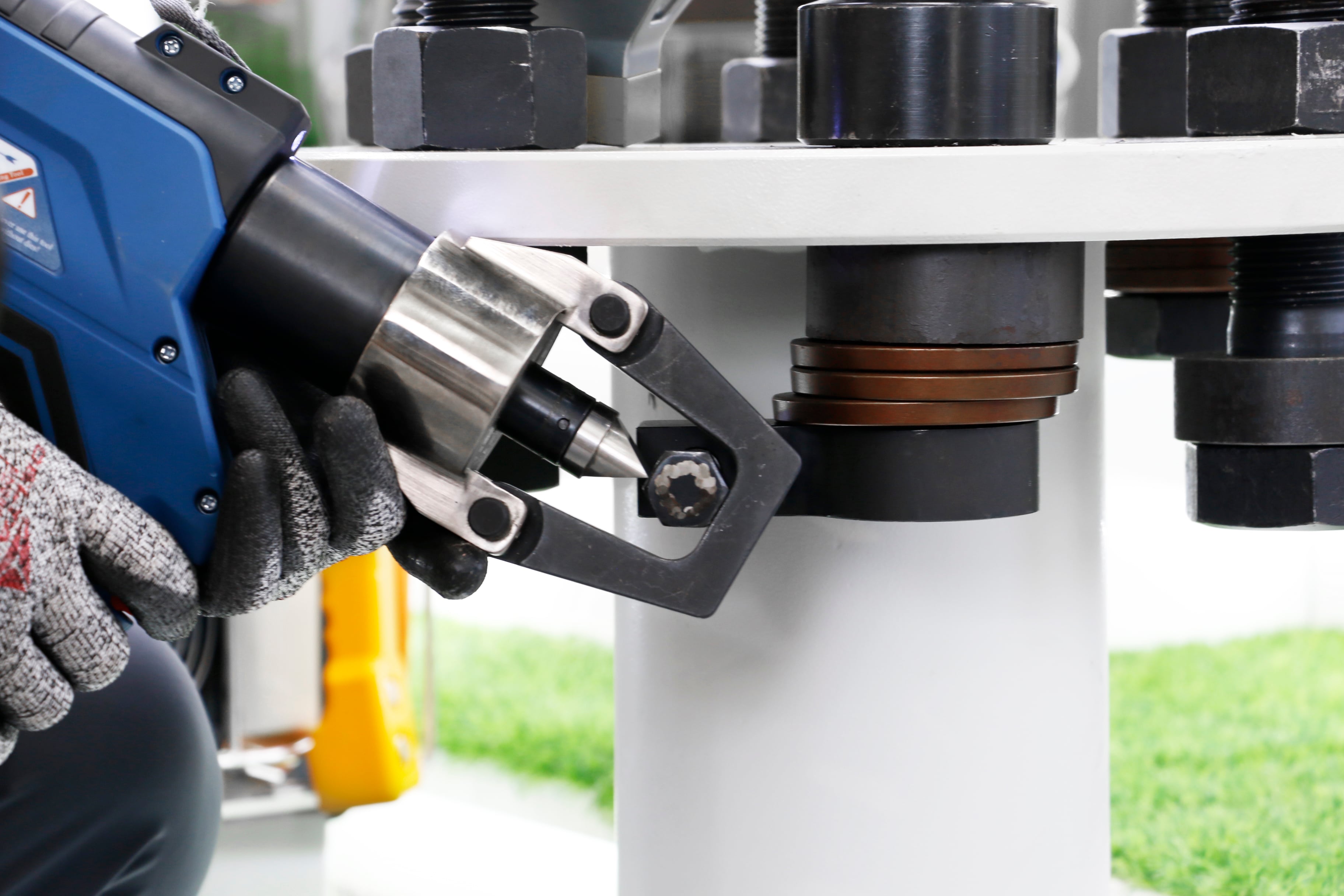

Nut Splitting

◆ Rusted and seized nuts up to 36mm
◆ Bolted connections in power equipment maintenance
◆ Tower and substation maintenance applications

FAQ

Q1: What functions does the ECT-120UNV support?

The ECT-120UNV is a 4-in-1 tool system. One power unit drives four interchangeable heads: crimping (Cu/Al up to 400mm²), cutting (ACSR up to 44mm), punching (angle steel 6mm, busbar 6.5mm), and nut splitting (up to 36mm).

Q2: How does the interchangeable head system work?

The flip-open design allows quick tool-free head changes. Open the latch, swap the working head, and lock it back. Each head is purpose-built for its specific function, ensuring optimal performance across all four operations.

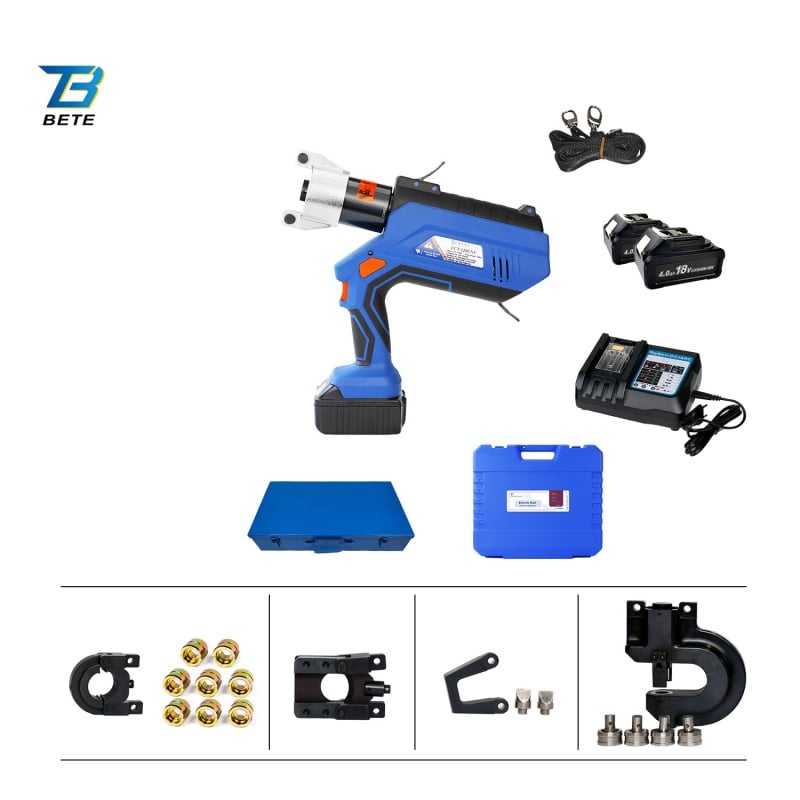

Q3: What is included in the complete set?

The complete set includes: 1 main power unit, 4 working heads (crimping, cutting, punching, nut splitting), 2 batteries (18V 4.0Ah), 1 fast charger, 1 shoulder strap, 1 standard die set (9 pcs), 1 durable carrying case, and 1 steel case.
