Battery Hydraulic Crimping Tools
Home > Products > Hydraulic Crimping Tools > Battery Hydraulic Crimping Tools
1.Crimping head rotates 360°
2.Automatic pressure release
3.Crimping capacity:max 300mm²
4.Standard dies：Cu50-300mm²

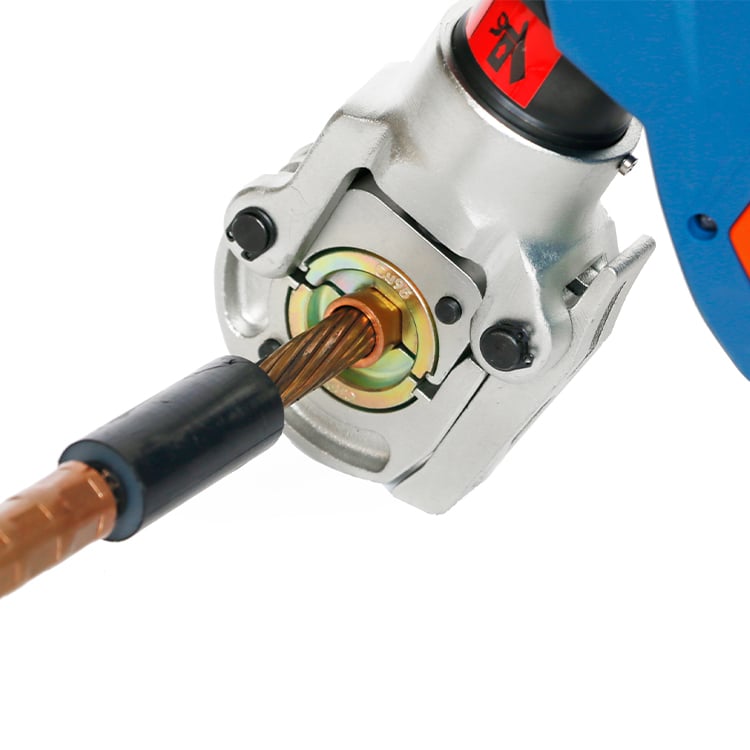

The flip-open C-head rotates 360°, allowing operators to position the tool in switchgear cabinets, overhead line work, and trench installations where workspace is limited. The two-stage hydraulic system rapidly advances the ram to the connector, then engages high-pressure mode for a controlled crimp cycle, with automatic pressure release once the rated force is reached.
An OLED display provides cycle count, battery status, and maintenance alerts. The 18V Li-ion battery platform supports approximately 120 crimps per charge on Cu 150 mm² connectors. At 4.1 kg and measuring 29 × 28 × 7 cm, the ECT-6022 fits standard tool cases and can be carried with the included shoulder strap for elevated-platform and climbing work.
|

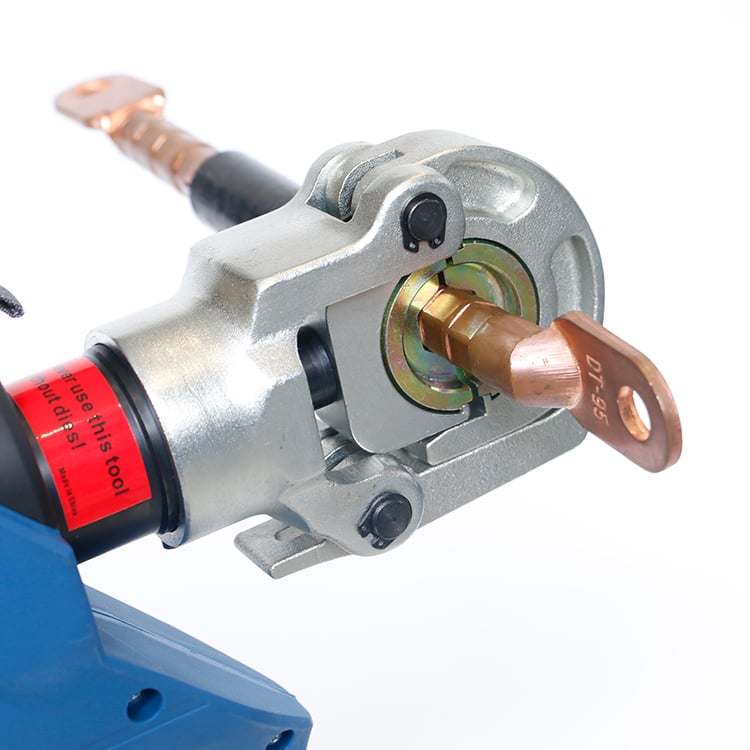

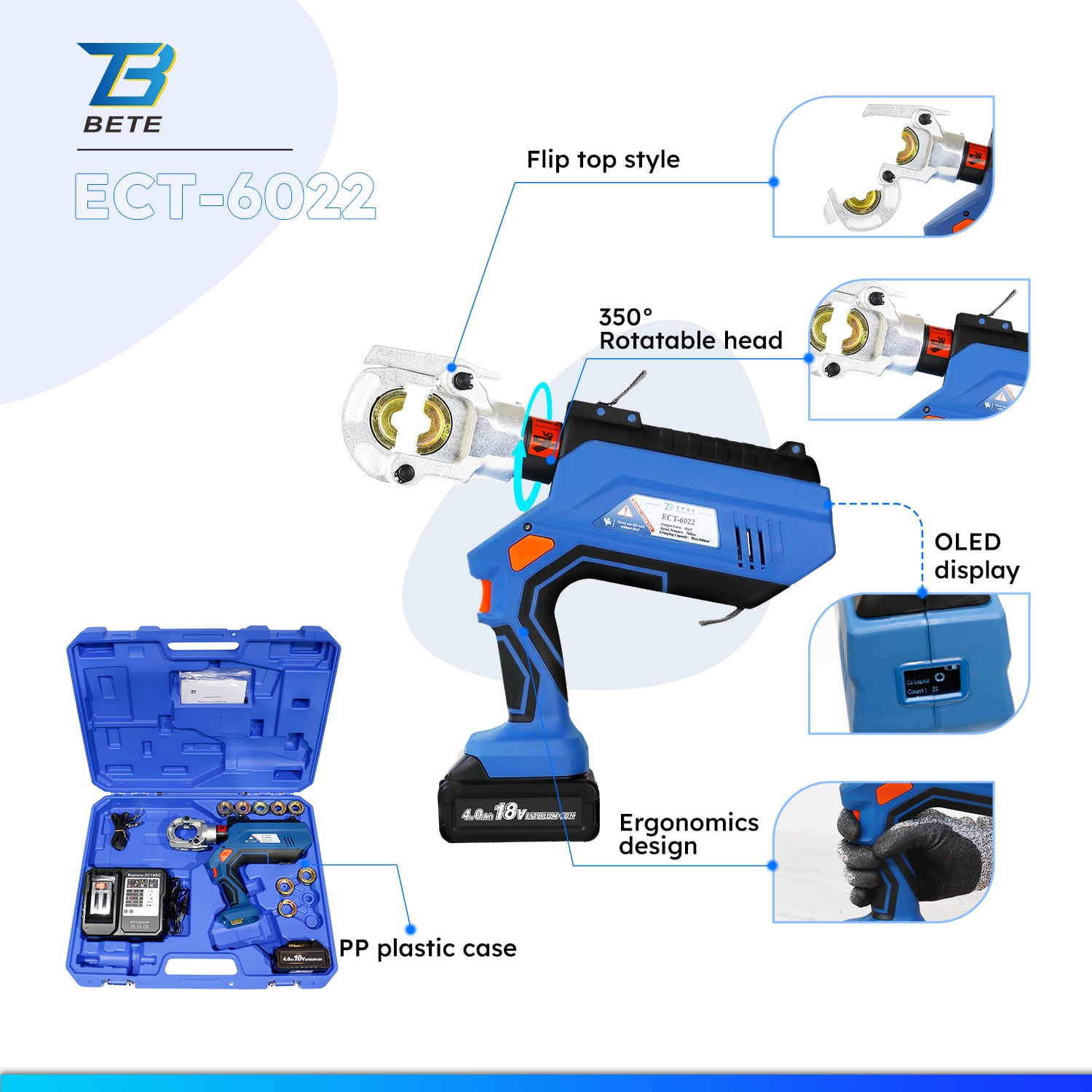

◢ Flip-open head, crimping head rotates 360°

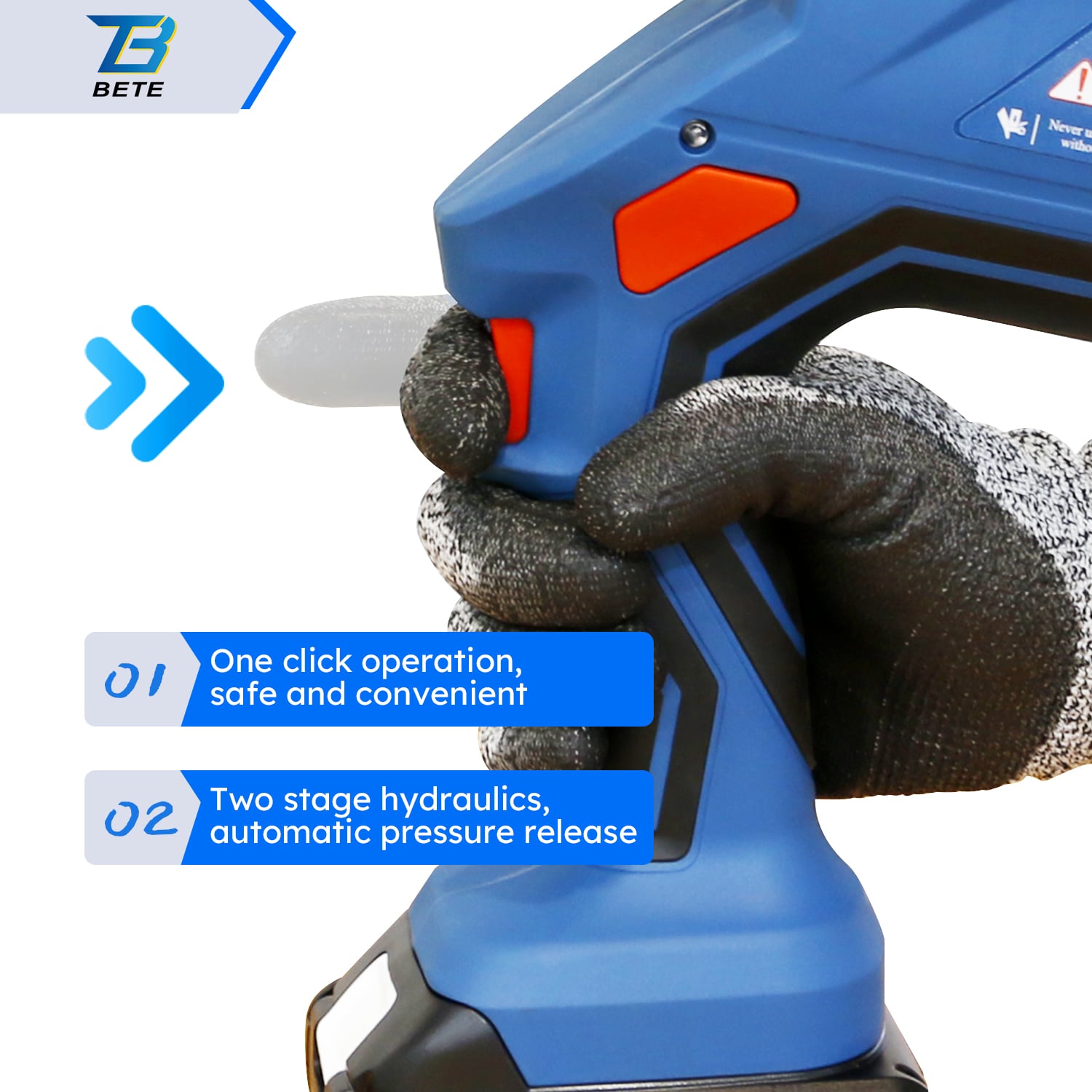

◢ Two-stage hydraulics, automatic pressure release
◢ Built-in intelligent computer chip, OLED display is easy to read information
◢ Equipped with an LED work light to make work easier
◢ High-capacity 18V power-on display lithium battery with fast charger
◢ PP plastic, molding in one, strong and anti-impact
|
 |
Crimping Force |
6t |
Stroke |
22mm |
Rated Pressure |
700bar |
Crimping Capacity |
Max 300mm2 |
Oil volume |
About 160mL |
Standard Dies |
Cu50-300mm2 |
Net Weight |
4.1kg |
Gross Weight |
11.5kg |
Dimensions |
29x28x7cm |
Packing Size |
59x52x14cm |
 |
 |

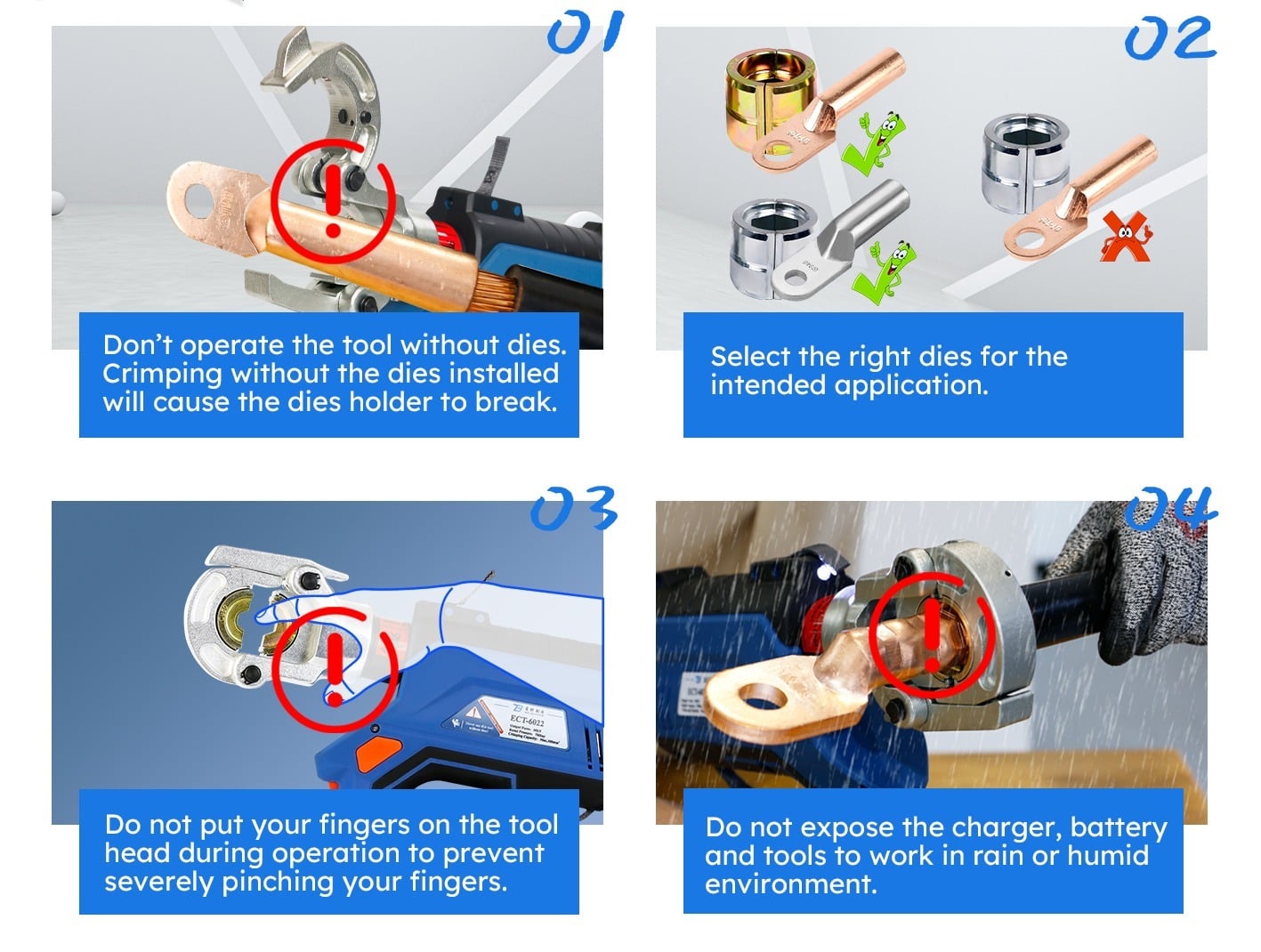

Operational Precautions
Please strictly observe the precautions.

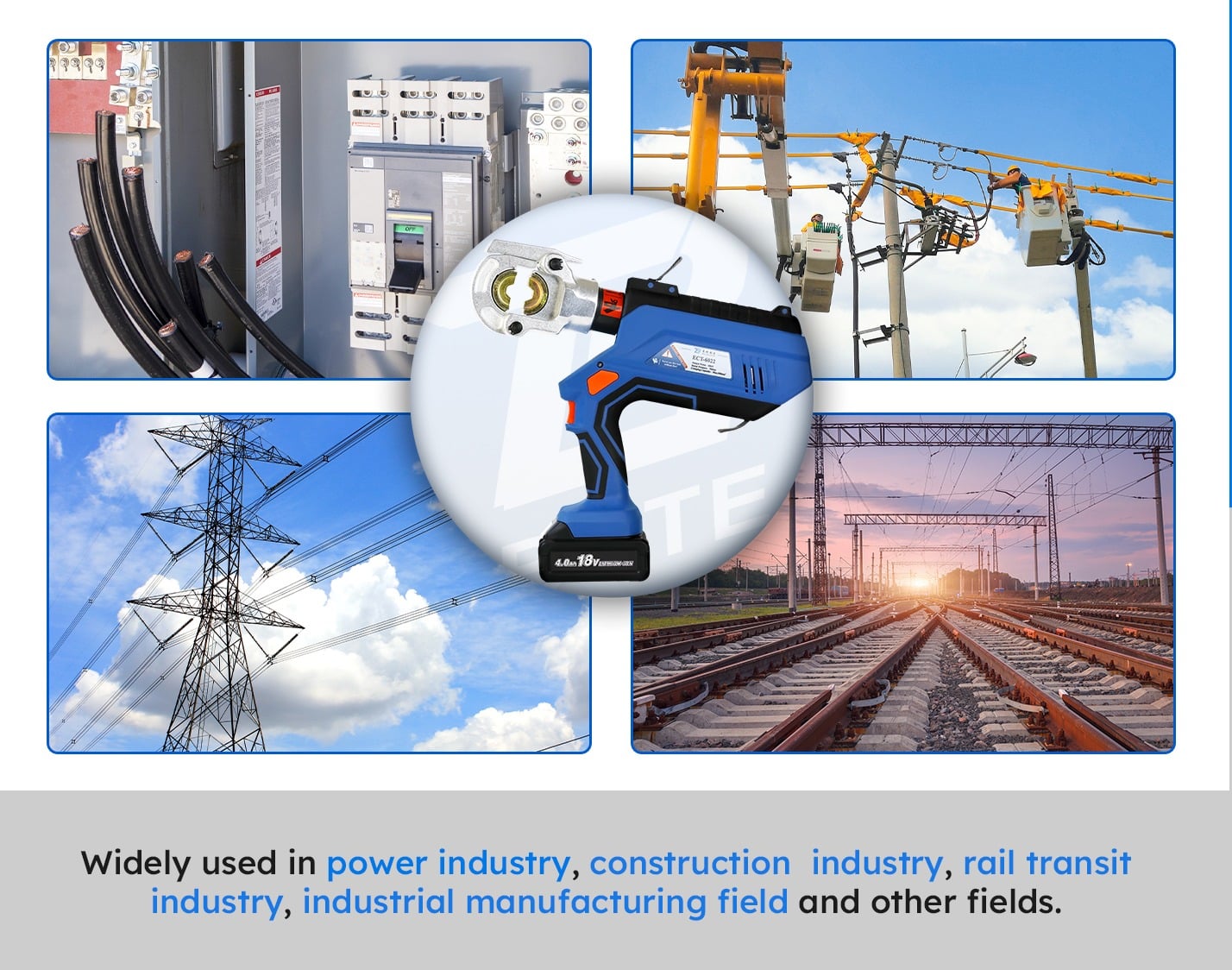

Applications
Power Distribution
Crimping copper and aluminum lugs in low-voltage switchgear, distribution panels, and transformer terminations up to 300 mm².
Building Electrical Construction
On-site termination of building wiring, control cabinet harnesses, and busbar tap-off connections. The rotating head suits confined enclosure work in commercial and industrial installations.
Railway Signaling and Trackside Equipment
Crimping signal and power cable connections for trackside cabinets, signaling relays, and rail infrastructure wiring within the 300 mm² capacity range.
Panel Building and OEM Assembly
Repetitive crimping of control panel wiring harnesses in manufacturing environments. Automatic pressure release provides uniform results across high-volume production.
Field Maintenance and Repair
On-site servicing of cable connections in utility substations, industrial plants, and wind turbine nacelles. Battery operation eliminates generator setup for single-tool tasks.
