The Flange Alignment & Spreading Tool Series is designed for safe, efficient, and precise flange maintenance operations in pipeline, oil & gas, petrochemical, power generation, and industrial facilities. Featuring flange alignment tools and flange spreaders, the series helps technicians quickly correct flange misalignment, create safe working gaps, and improve maintenance efficiency without causing flange damage.

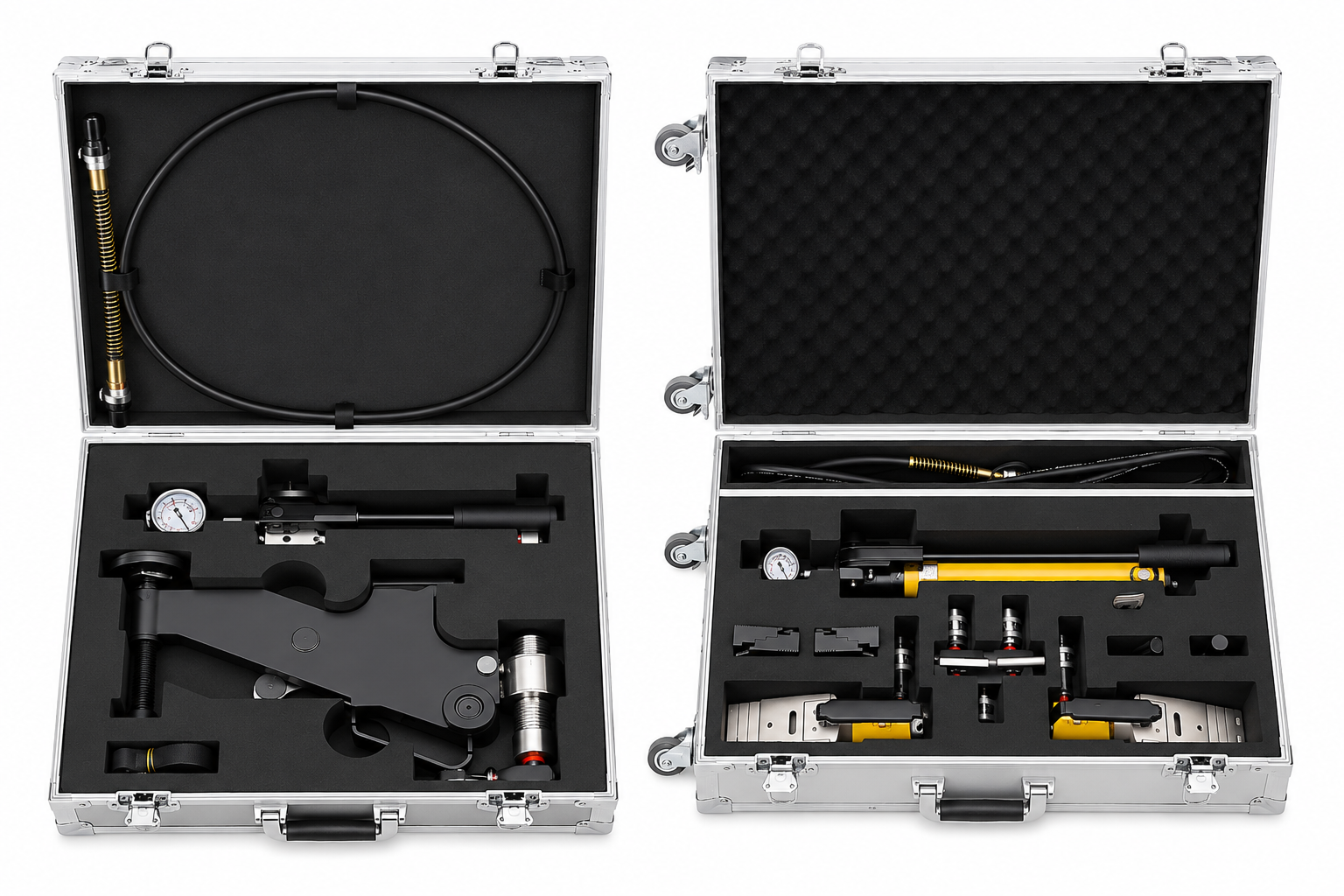

BETE Flange Alignment & Spreading Tool Series provides professional solutions for flange installation, maintenance, repair, and inspection operations. Designed to improve safety and efficiency during pipeline maintenance, the series includes flange alignment tools to correct flange positioning and flange spreaders to create controlled separation between flange faces.
 |

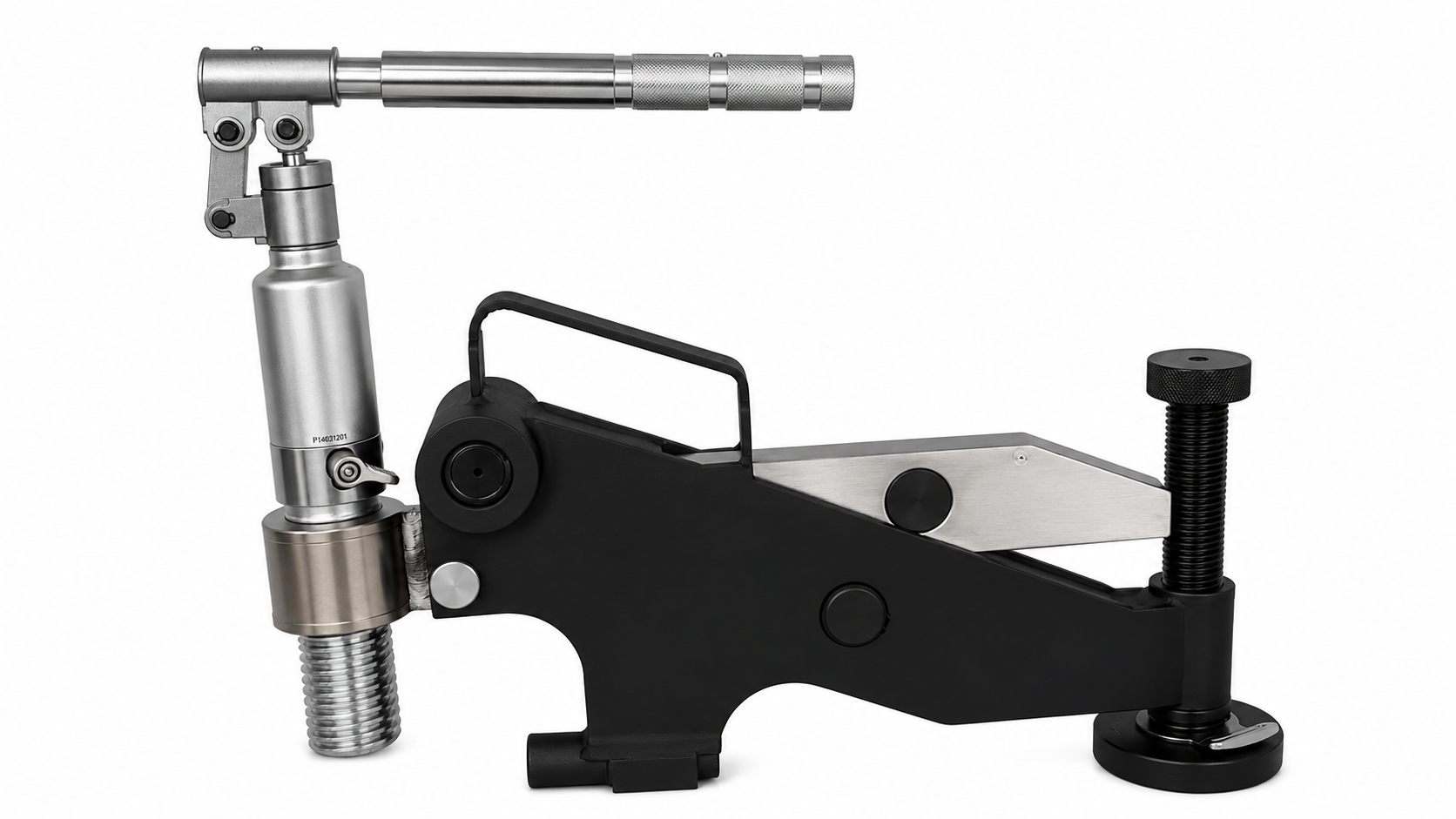

◢ Suitable for alignment and realignment of pipeline flanges during routine maintenance ◢ Attaches to misaligned flanges for easy push-pull operation to achieve proper alignment ◢ Safely and quickly corrects misalignment without external power support ◢ Compatible with most ANSI, API, BS, and DIN standard flanges ◢ Eliminates the need for slings, hooks, or hoisting gear assistance ◢ Operable in any orientation (horizontal/vertical installation) ◢ Lightweight, portable design for easy handling in outdoor operations. |
|
 |
 |
|
 |
 |
 |
| Model | Max Lifting Force (kN/t) | Min Bolt Size (in/mm) | Flange Thickness (incl. flange) (in/mm) | Weight (kg) |
| FSA-4TM | Apr-40 | 0.95/24 | 1.18-5.23/30-133 | 8.6 |

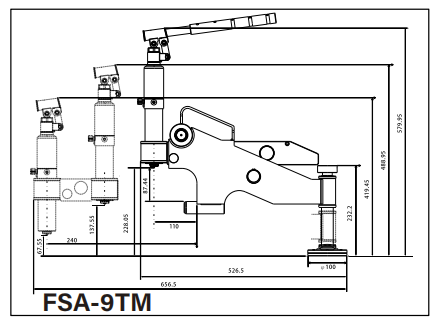

| FSA-9TM | Oct-90 | 1.24/31.5 | 3.66-9.00/93-228 | 16.5 |
| FSA-9TE | Oct-90 | 1.24/31.5 | 3.66-9.00/93-228 | 16.5 |
