HP-700A Mini High Pressure 0.72L Oil 700 Bar Manual Hydraulic Pump

HP-700A Mini High Pressure 0.72L Oil 700 Bar Manual Hydraulic Pump

1.It has a safety valve that automatically releases pressure when it reaches the set pressure

2.High and low pressure two-stage oil inlet design, the piston advances quickly

3.Vacuum oil receptacle can work at any angle

4.Longer handle makes labor saving and quick oil output

5.The strong metal structure increases the strength and durability, and will not burn when used in a welding environment

Introduction

◢ It has a safety valve that automatically releases pressure when it reaches the set pressure
◢ High and low pressure two-stage oil inlet design, the piston advances quickly
◢ Vacuum oil receptacle can work at any angle
◢ Longer handle makes labor saving and quick oil output
◢ The strong metal structure increases the strength and durability, and will not burn when used in a welding environment

Products Description

Model	HP-700A	Rated Pressure	700bar
Reservoir Capacity	0. 72L	Oil Delivery at High Pressure	2. 26cc/stroke
Oil Delivery at Low Pressure	12. 26cc/stroke	Standard Accessories	2m hydraulic hose
Packing	Carton case	Dimensions	661318cm
Net Weight	9. 4kg	Gross Weight	10.1kg
Packing Size	74x20x22cm

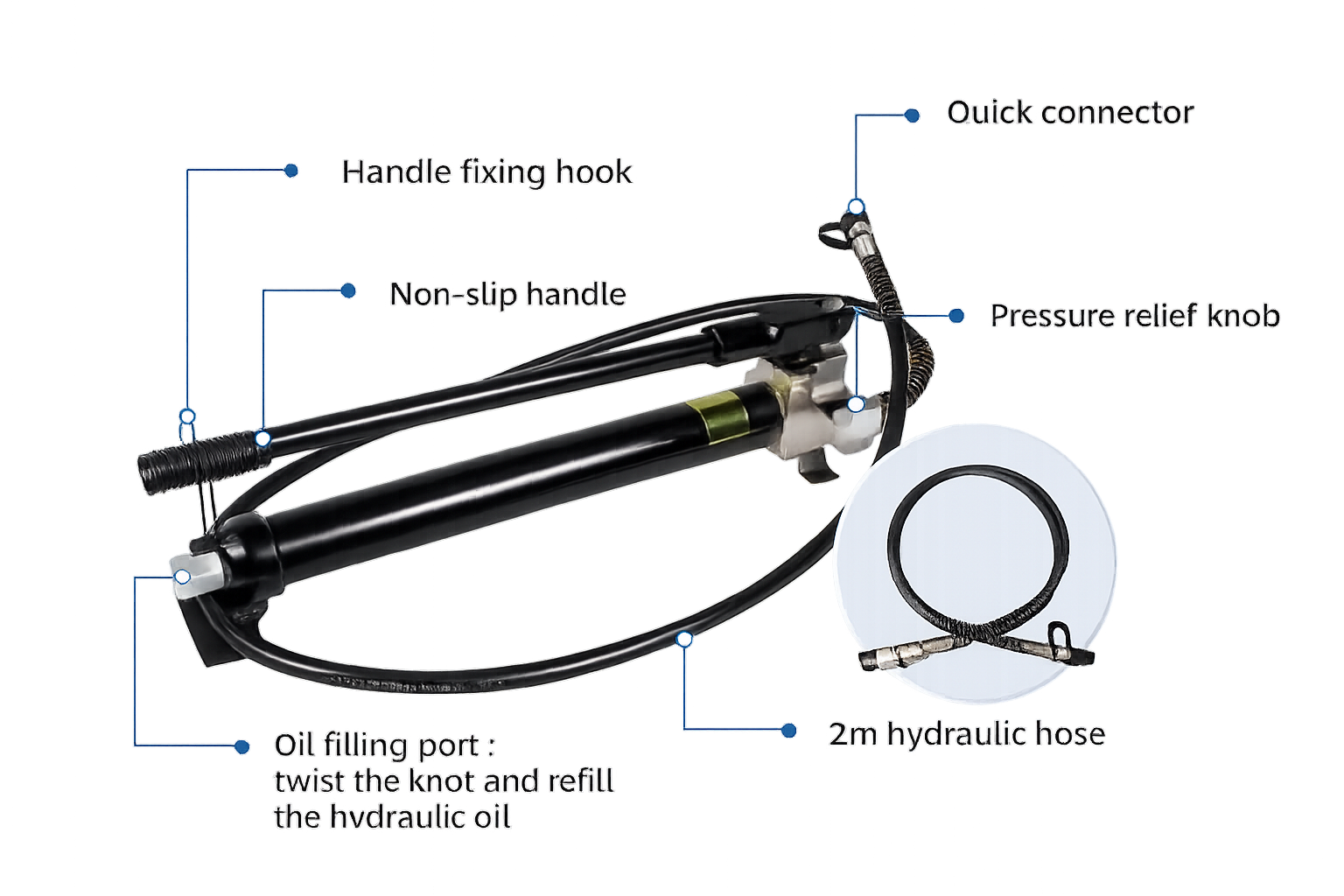

Pressure Relief Knob	Handle Fixing Hook	High-pressure Hose
Hold pressure clockwise and relieve pressure counterclockwise	Easy to store	With quick-swap connectors, easy to use

The HP-700A Manual Hydraulic Pump is a compact and reliable solution. With a maximum output of 700 bar and a 0.72L oil capacity, it delivers stable performance for lifting, pressing, and powering hydraulic tools. Built with durable materials, it performs well even under demanding conditions. Weighing 9.4 kg, this pump is easy to carry. Its simple, user-friendly design allows precise control of pressure and flow, making it a practical choice for construction, maintenance, and portable hydraulic systems.
