BETE Hydraulic Cylinder Series provides versatile hydraulic force solutions for a wide range of industrial applications. Designed for lifting, pushing, pulling, pressing, positioning, and maintenance operations, the series includes single-acting and double-acting hydraulic cylinders as well as hollow hydraulic cylinders for specialized applications requiring tensioning, pulling, or fixture-assisted operations.

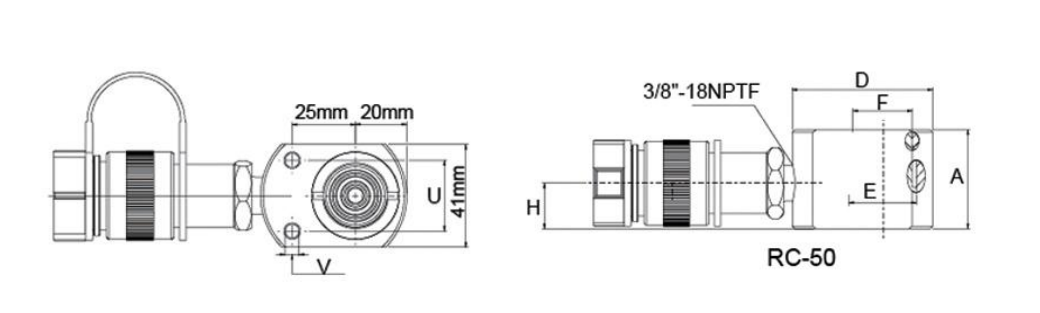

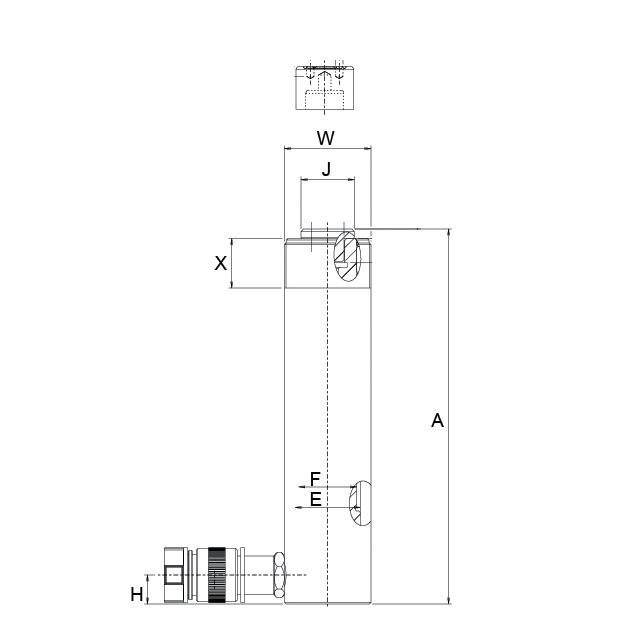

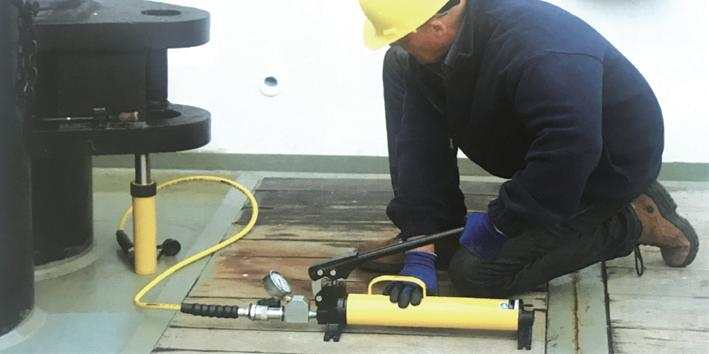

1. RC Series Single-acting Universal Hydraulic Cylinder

Product Features

1. RC Series Single-acting Universal Hydraulic Cylinder

	◢ Single-acting cylinder, spring return for fast & easy operation ◢ High-strength alloy steel piston, durable & long service life ◢ Paint-coated surface for better corrosion resistance; equipped with a handle for easy carrying

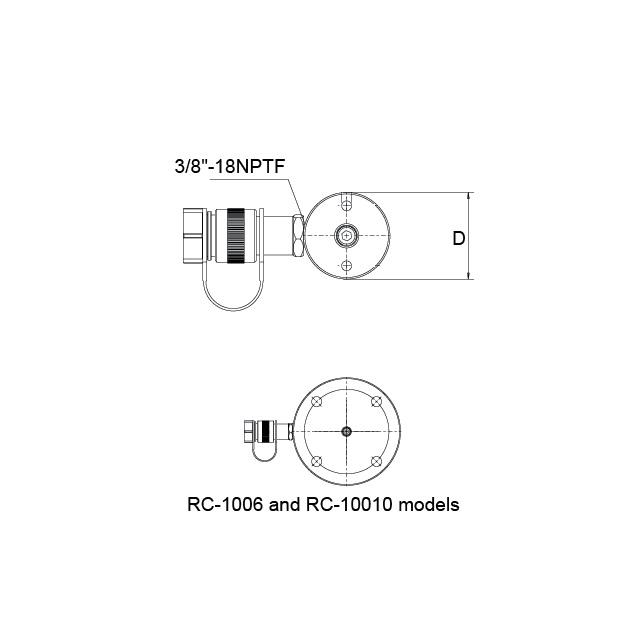

Handle Type (O)	Handle Type (S)	Model	Ton (t)	Stroke (mm)	Pressure Area (cm²)	Oil Volume (cm³)	Closed Height A(mm)	Extended Height (mm)	Outer Dia. D(mm)	Inner Dia. E(mm)	Ram Dia. F(mm)	Thread Length X(mm)	Weight (kg)
		RC50	5	16	6.5	11	42	58	28.7	25.4	1½"-16	28	1.1
		RC51	5	25	6.5	16	110	38	28.7	25.4	1½"-16	28	1.1
		RC53	5	76	6.5	50	165	38	28.7	25.4	1½"-16	28	1.5
		RC55	5	127	6.5	83	215	38	28.7	25.4	1½"-16	28	1.9
		RC57	5	177	6.5	115	273	38	28.7	25.4	1½"-16	28	2.4
		RC59	5	232	6.5	151	323	38	28.7	25.4	1½"-16	28	2.8
		RC101	10	26	14.5	38	89	57	42.9	38.1	2¼"-14	27	1.8
		RC102	10	54	14.5	78	121	57	42.9	38.1	2¼"-14	27	2.3
		RC104	10	105	14.5	152	171	57	42.9	38.1	2¼"-14	27	3.3
		RC106	10	156	14.5	226	247	57	42.9	38.1	2¼"-14	27	4.4
		RC108	10	203	14.5	294	298	57	42.9	38.1	2¼"-14	27	5.4
		RC1010	10	257	14.5	373	349	57	42.9	38.1	2¼"-14	27	6.4
		RC1012	10	304	14.5	441	400	57	42.9	38.1	2¼"-14	27	6.8
		RC1014	10	356	14.5	516	450	57	42.9	38.1	2¼"-14	27	8.2
		RC151	15	25	20.3	51	124	70	50.8	41.4	2¾"-16	30	3.3
		RC152	15	51	20.3	104	149	70	50.8	41.4	2¾"-16	30	4.1
		RC154	15	101	20.3	205	200	70	50.8	41.4	2¾"-16	30	5
		RC156	15	152	20.3	308	271	70	50.8	41.4	2¾"-16	30	6.8
		RC158	15	203	20.3	411	322	70	50.8	41.4	2¾"-16	30	8.2
		RC1510*	15	254	20.3	516	373	70	50.8	41.4	2¾"-16	30	9.5
		RC1512*	15	305	20.3	619	423	70	50.8	41.4	2¾"-16	30	10.9
		RC1514*	15	356	20.3	723	474	70	50.8	41.4	2¾"-16	30	11.8
		RC251	25	26	33.2	86	139	85	65	57.2	3"-12	49	5.9
		RC252	25	50	33.2	166	165	85	65	57.2	3"-12	49	6.4
		RC254	25	102	33.2	339	215	85	65	57.2	3"-12	49	8.2
		RC256	25	158	33.2	525	273	85	65	57.2	3"-12	49	10
		RC258	25	210	33.2	697	323	85	65	57.2	3"-12	49	12.2
		RC2510*	25	261	33.2	867	374	85	65	57.2	3"-12	49	14.1
		RC2512*	25	311	33.2	1033	425	85	65	57.2	3"-12	49	16.3
		RC2514	25	362	33.2	1202	476	85	65	57.2	3"-12	49	17.7
	■	RC308	30	209	42.1	880	387	102	73.2	57.2	-	-	18.1
	■	RC502	50	51	71.2	361	176	127	95.2	79.5	5"-12	55	15
	▲	RC504	50	101	71.2	719	227	127	95.2	79.5	5"-12	55	19.1
	▲	RC506	50	159	71.2	1131	282	127	95.2	79.5	5"-12	55	23.1
	▲	RC5013	50	337	71.2	2399	460	127	95.2	79.5	5"-12	55	37.6
▲	●	RC756	75	156	102.6	1601	285	147	114.3	95.2	5¾"-12	44	29.5
▲	★	RC7513*	75	333	102.6	3417	492	147	114.3	95.2	5¾"-12	44	59
▲	★	RC1006	100	168	133.6	2239	357	177	130.3	104.9	6¾"-12	44	59
▲	★	RC10010	100	260	133.6	3466	449	177	130.3	104.9	6¾"-12	44	72.6

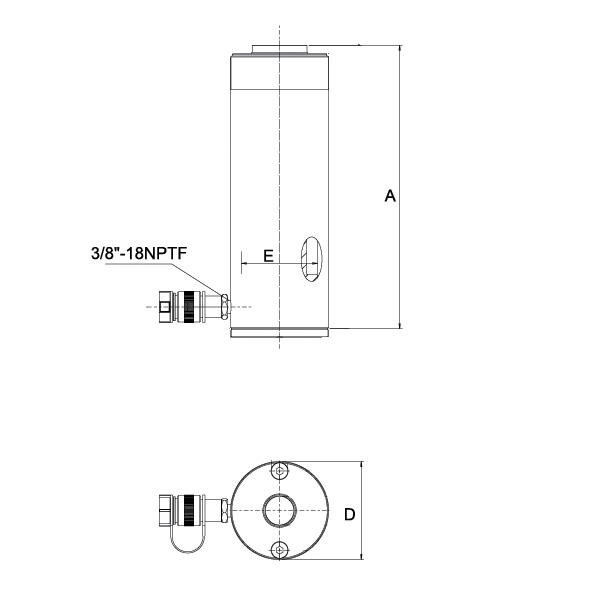

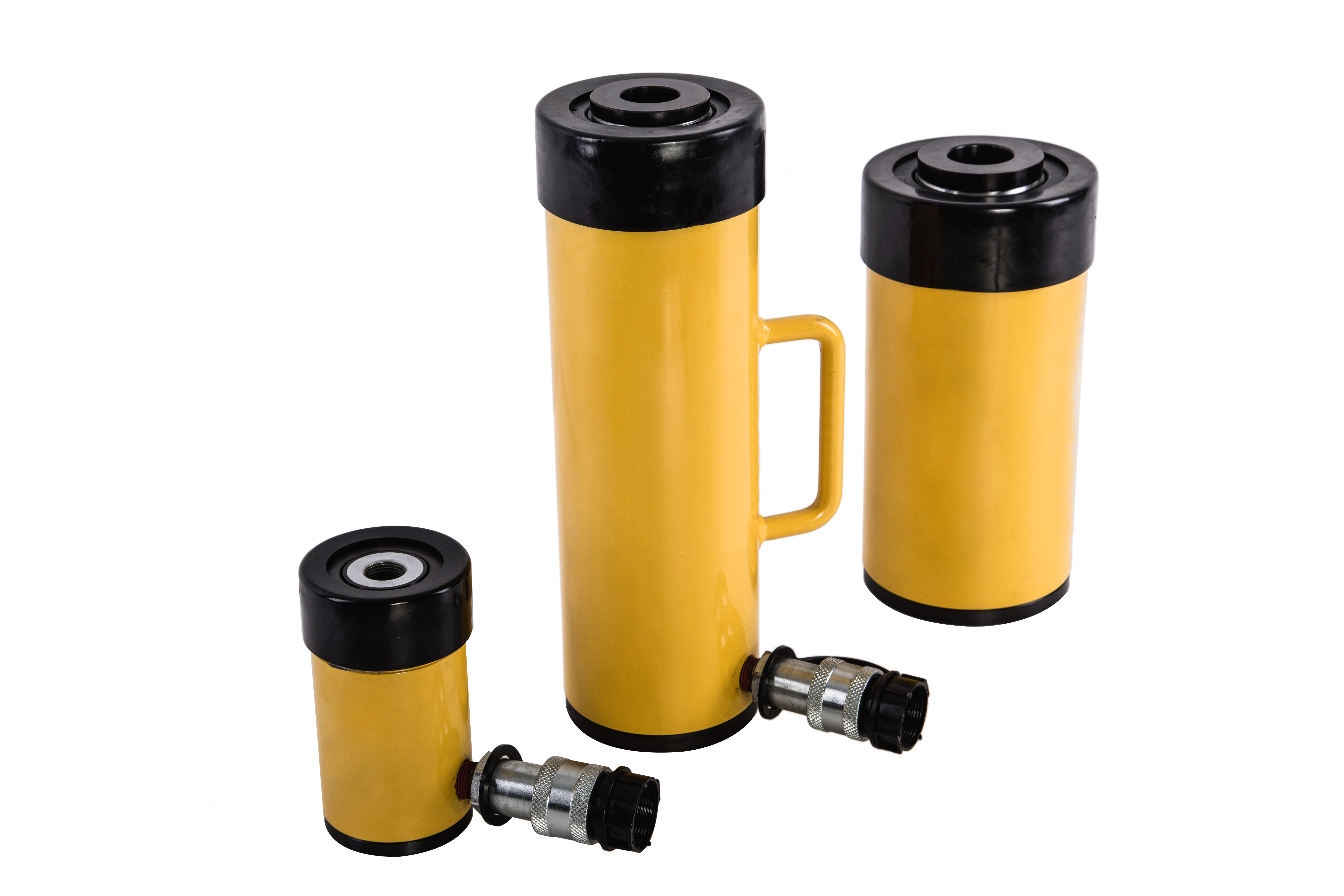

2. RCH Series Single-acting Hollow Hydraulic Cylinder

	◢ Hollow plunger design for pushing and pulling with ﬁxtures ◢ Single-acting cylinder with spring return for fast, easy operation ◢ Paint-coated surface for excellent corrosion resistance

Handle Type (S)	Model	Ton (t)	Stroke (mm)	Pressure Area (cm2)	Oil Volume (cm3)	Closed Height A(mm)	Extended Height (mm)	Outer Dia. D(mm)	Inner Dia. E(mm)	Ram Dia. F(mm)	Weight (kg)
	RCH120	12	8	17.9	14	55	63	69	54.1	35	1.5
	RCH121	12	42	17.9	75	120	162	69	54.1	35	2.8
	RCH1211	12	42	17.9	75	120	162	69	54.1	35	2.8
	RCH123	12	76	17.9	136	184	260	69	54.1	35	4.4
●	RCH202	20	50	30.7	150	162	211	99	73.1	55	7.7
●	RCH206	20	155	30.7	476	306	461	99	73.1	55	14.1
●	RCH302	30	64	46.6	298	179	242	115	88.9	63.5	10.9
●	RCH306	30	155	46.6	722	331	485	115	88.9	63.5	21.8
▲	RCH603	60	77	82.3	626	248	323	160	123.9	92	28.1
▲	RCH606	60	152	82.3	1259	325	476	160	123.9	92	35.4
▲	RCH1003	100	76	133	1011	254	330	212	165.1	127	63

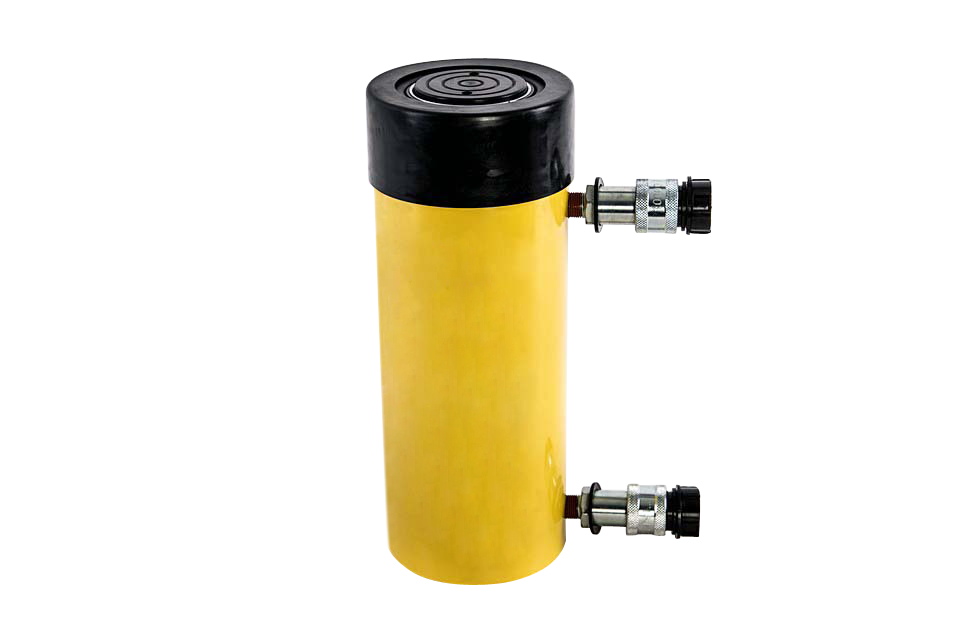

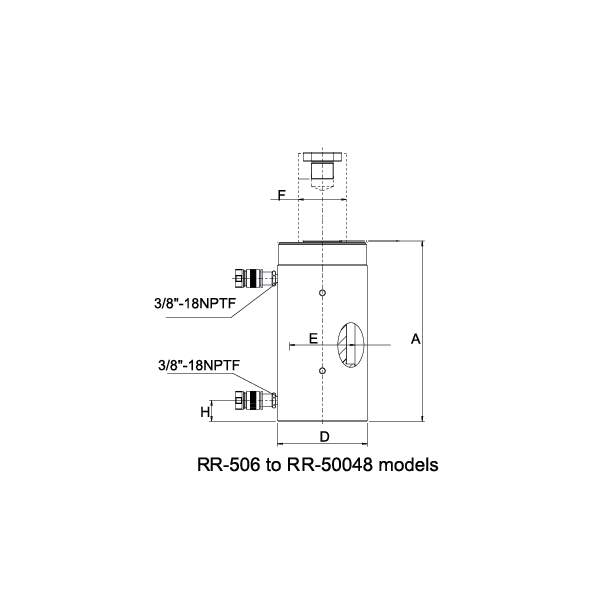

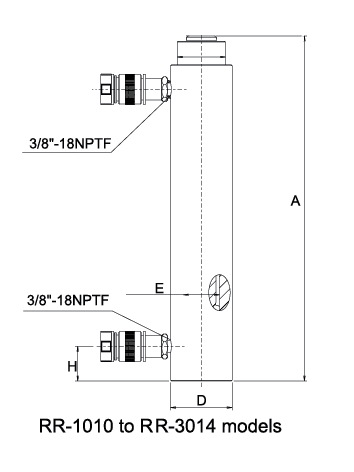

3. RR Series Double-acting Hydraulic Cylinder

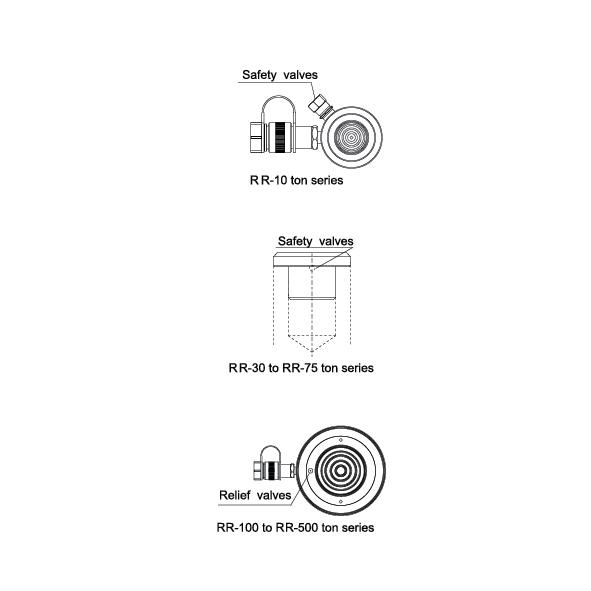

	◢ Double-acting design for pushing and pulling applications ◢ Built-in safety valve prevents overpressure damage ◢ External cylinder thread, plunger thread, and base tapped holes for easy mounting ◢ Hard chrome-plated plunger for wear and corrosion resistance ◢ The dust ring protects the cylinder bore from contamination ◢ Top nut prevents plunger over-extension ◢ Powder-coated surface for appearance, corrosion, and rust resistance ◢ All models are supplied with a 3/8 NPT quick coupler and a dust cap ◢ Suitable for bridge lifting, construction renovation, shipbuilding, utilities, and mining equipment maintenance ◢ RR Series is ideal for applications with load holding and precise pressure control

Notice：

Double-acting hydraulic jacks must be used with 4-port valve hydraulic pumps.

The actual retraction capacity of thejack/hydraulic cylinder may be lower than the calculated value, due to the relief valve pressure setting.

RR-308/3014: 4000psi

RR-506/5013/5020: 6950psi

RR-756/7513: 7200psi

Handle Type (O)	Handle Type (S)	Model	Ton (t)	Stroke (mm)	Force (t) Push	Force (t) Pull	Pressure Area(mm²) Push	Pressure Area(mm²) Pull	Oil Volume (cm³) Push	Oil Volume (cm³) Pull	Closed Height A (mm)	Extended Height B (mm)	Inner Dia. D (mm)	Outer Dia. E (mm)	Ram Dia. F (mm)	Weight (kg)
		RR-1010	10	254	101	33	14.5	4.8	368	122	409	663	73	42.9	34.9	12
		RR-1012	10	305	101	33	14.5	4.8	442	147	457	762	73	42.9	34.9	14
		RR-308	30	209	295	53	42.1	19.1	879	400	387	596	101	73.2	54.1	18
		RR-3014	30	368	295	53	42.1	19.1	1549	703	549	917	101	73.2	54.1	29
▲	★	RR-506	50	156	498	103	71.2	21.5	1111	335	331	487	127	95.2	79.5	30
▲	★	RR-5013	50	334	498	103	71.2	21.5	2378	718	509	843	127	95.2	79.5	52
▲	★	RR-5020	50	511	498	103	71.2	21.5	3638	1099	733	1244	127	95.2	79.5	68
▲	★	RR-756	75	156	718	156	102.6	31.4	1601	490	347	503	146	114.3	95.2	41
▲	★	RR-7513	75	333	718	156	102.6	31.4	3417	1046	525	858	146	114.3	95.2	68
	★	RR-1006	95	168	933	435	133.3	62.4	2238	1045	357	525	177	130.3	95.2	61
	★	RR-10013	95	333	933	435	133.3	62.4	4439	2071	524	857	177	130.3	95.2	93
▲	★	RR-10018	95	460	933	435	133.3	62.4	6132	2861	687	1147	177	130.3	95.2	117
	★	RR-1502	140	57	1386	668	198.1	95.4	1129	544	196	253	203	158.8	114.3	49
▲	★	RR-1506	140	156	1386	668	198.1	95.4	3090	1488	385	541	203	158.8	114.3	93
▲	★	RR-15013	140	333	1386	668	198.1	95.4	6598	3177	582	915	203	158.8	114.3	124
▲	★	RR-15032	140	815	1386	668	198.1	95.4	16145	7775	1116	1931	203	158.8	114.3	238
▲	★	RR-2006	200	152	1995	1017	285	145.3	4332	2209	430	582	247	190.5	133.4	147
▲	★	RR-20013	200	330	1995	1017	285	145.3	9405	4795	608	938	247	190.5	133.4	199
▲	★	RR-20018	200	457	1995	1017	285	145.3	13025	6640	765	1222	247	190.5	133.4	204
▲	★	RR-20024	200	610	1995	1017	285	145.3	17385	8863	917	1527	247	190.5	133.4	279
	★	RR-20036	200	914	1995	1017	285	145.3	26049	13280	1222	2136	247	190.5	133.4	383
	★	RR-20048	200	1219	1995	1017	285	145.3	34741	17712	1527	2746	247	190.5	133.4	483
	★	RR-3006	325	153	3201	1703	457.3	243.2	6997	3721	485	638	311	241.3	165.1	200
	★	RR-30012	325	305	3201	1703	457.3	243.2	13947	7418	638	943	311	241.3	165.1	312
	★	RR-30018	325	457	3201	1703	457.3	243.2	20889	11114	790	1247	311	241.3	165.1	385
	★	RR-30024	325	609	3201	1703	457.3	243.2	27850	14811	943	1552	311	241.3	165.1	469
	★	RR-30036	325	915	3201	1703	457.3	243.2	41843	22253	1247	2162	311	241.3	165.1	628
	★	RR-30048	325	1219	3201	1703	457.3	243.2	55745	29646	1552	2771	311	241.3	165.1	780
	★	RR-4006	440	152	4292	2297	613.3	328.1	9319	4987	538	690	358	279.4	190.5	303
	★	RR-40012	440	305	4292	2297	613.3	328.1	18700	10007	690	955	358	279.4	190.5	399
	★	RR-40018	440	457	4292	2297	613.3	328.1	28018	14995	843	1300	358	279.4	190.5	453
	★	RR-40024	440	610	4292	2297	613.3	328.1	37400	20014	955	1605	358	279.4	190.5	597
	★	RR-40036	440	914	4292	2297	613.3	328.1	56037	29988	1300	2214	358	279.4	190.5	792
	★	RR-40048	440	1219	4292	2297	613.3	328.1	74737	39996	1605	2824	358	279.4	190.5	980
	★	RR-5006	520	153	5108	2838	729.7	405.4	11164	6203	577	730	397	304.8	203.2	432
	★	RR-50012	520	305	5108	2838	729.7	405.4	22256	12365	730	1035	397	304.8	203.2	589
	★	RR-50018	520	457	5108	2838	729.7	405.4	33347	18526	882	1339	397	304.8	203.2	680
	★	RR-50024	520	609	5108	2838	729.7	405.4	44440	24689	1035	1644	397	304.8	203.2	816
	★	RR-50036	520	915	5108	2838	729.7	405.4	66766	36973	1339	2254	397	304.8	203.2	1002
	★	RR-50048	520	1219	5108	2838	729.7	405.4	88951	49418	1644	2863	397	304.8	203.2	1224

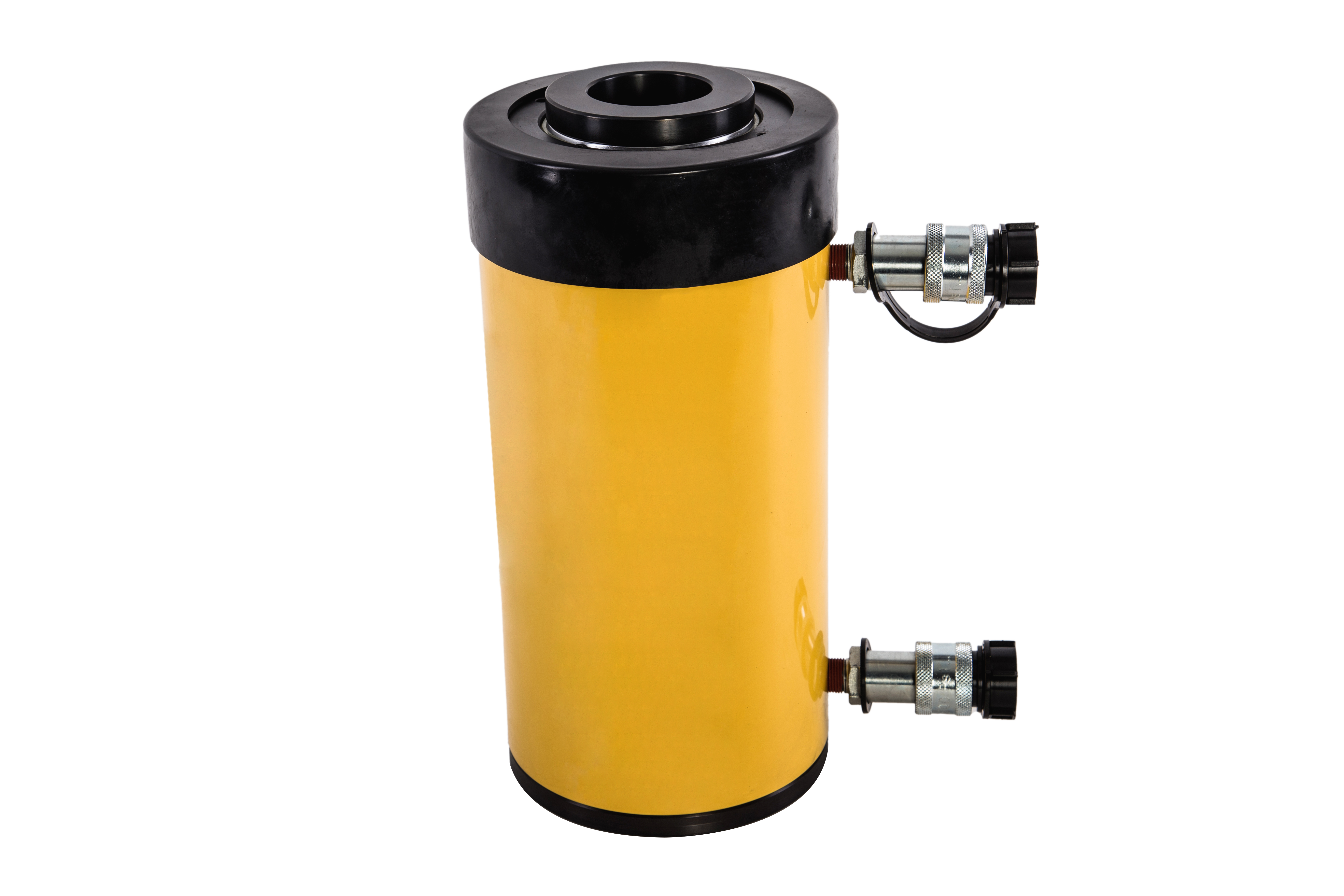

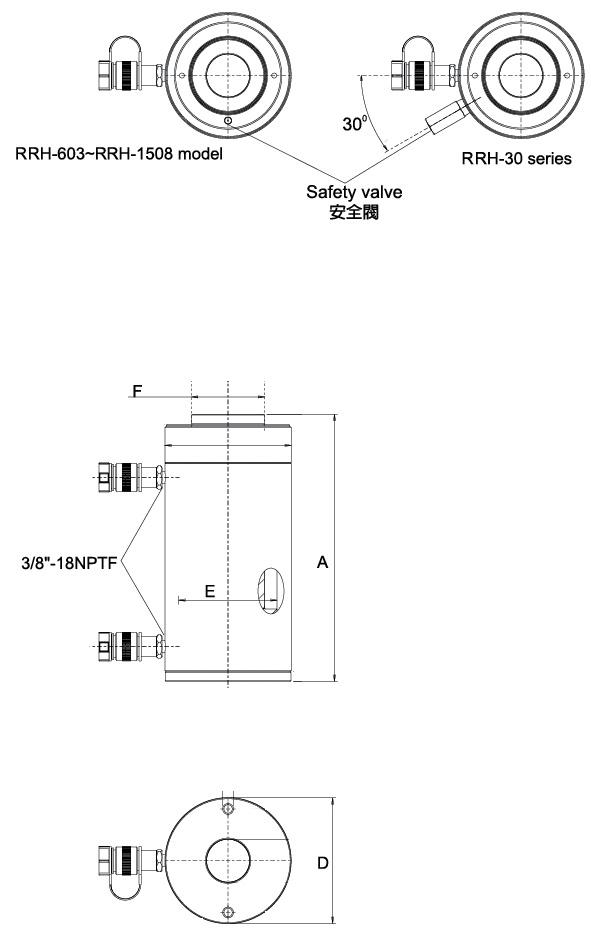

4. RRH Series Double-acting Hollow Hydraulic Cylinder


◢ Hollow plunger design for both pushing and pulling with ﬁxtures ◢ Built-in safety valve protects against overload ◢ Double-acting cylinder with fast return speed ◢ Composite coating for excellent corrosion resistance

Handle Type	Model	Ton (t)	Stroke (mm)	Force (t) Push	Force (t) Pull	Pressure Area (mm2) Push	Pressure Area (mm2) Pull	Oil Volume(cm3) Push	Oil Volume(cm3) Pull	Closed Height A (mm)	Extended Height B (mm)	Inner Dia. D (mm)	Outer Dia. E (mm)	Ram Dia. F (mm)	Weight (kg)
▲	RRH307	30	178	326	213	46.6	30.4	829	541	330	508	114	88.9	63.5	21
▲	RRH3010	30	258	326	213	46.6	30.4	1202	784	431	689	114	88.9	63.5	27
▲	RRH603	60	89	576	380	82.3	54.2	733	482	247	336	159	123.9	92.2	28
▲	RRH606	60	166	576	380	82.3	54.2	1366	900	323	489	159	123.9	92.2	35
▲	RRH6010	60	257	576	380	82.3	54.2	2115	1393	438	695	159	123.9	92.2	45
▲	RRH1001	100	38	931	612	133	87.4	505	333	165	203	213	165.1	127	33
▲	RRH1003	100	76	931	612	133	87.4	1011	666	254	330	213	165.1	127	61
▲	RRH1006	100	153	931	612	133	87.4	2035	1337	342	495	213	165.1	127	79
▲	RRH10010	100	257	931	612	133	87.4	3420	2246	460	717	213	165.1	127	106
▲	RRH1508	150	203	1429	718	204.1	102.6	4144	2083	349	552	247	190.5	152.4	111
