PC-55 Hydraulic Cutting Head 12t

1. Flip top style for easy access to the fitting

2. Powered by single acting hydraulic pump

3. The exact cutting capacity depends on the type of cable or rope

4.Cutting Capacity：Max Φ55mm Cu/Al/ACSR, MaxΦ22mm steel bar

Introduction

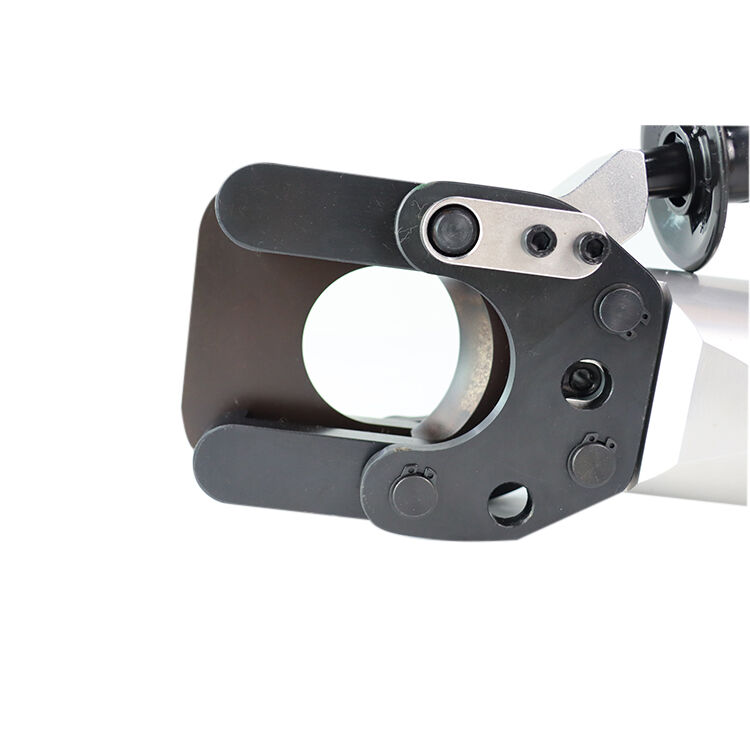

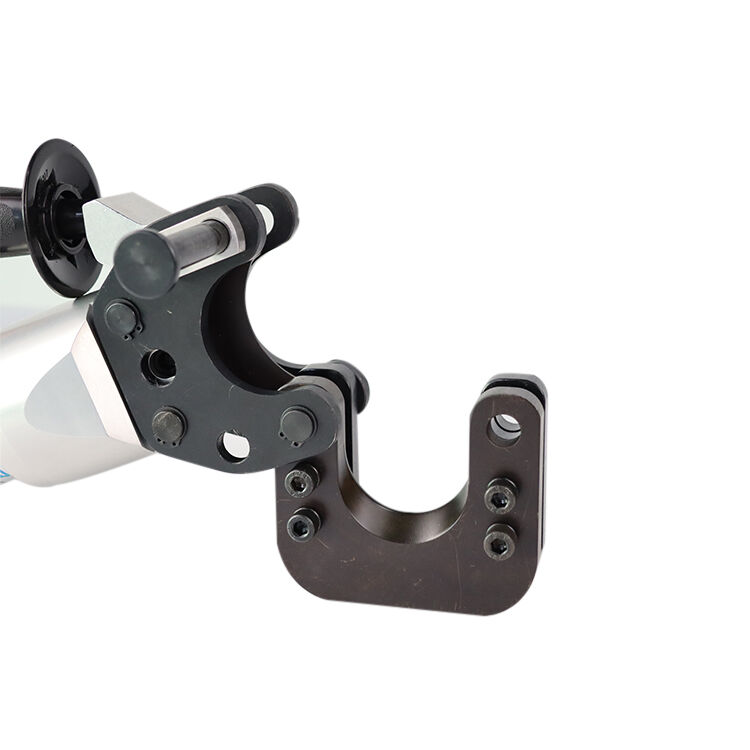

◢ Flip-open head easy access to the ﬁtting
◢ Powered by a single-acting hydraulic pump
◢ The exact cutting capacity depends on the type of cable

Cutting force	12t
Cutting Capacity	Max Φ85mm Cu/Almax(10kV) 3x185mm² light armored cable
Rated pressure	700bar
Net Weight	4.1kg
Gross Weight	4.8kg
Packing	Canvas bag + carton case
Dimensions	47x18x7cm
Packing Size	51x22x11cm

Get the task done quickly and effectively, whether you need to cut through copper, aluminum, or metal cables. You will end up impressed by its precision and rate, enabling you to finish your jobs very quickly.

Trust BETE to provide the best tools for your job and choose the Bete PC-55 12t Cable Cutter Cutting Pliers Hydraulic Cable Cutting Head.
