Hydraulic Busbar Bending Tools
Home > Products > Hydraulic Busbar Tools > Hydraulic Busbar Bending Tools
Features:
◢ Flip-open design, pick finished parts conveniently
◢ Portable for outdoor work, can also be fixed in a workshop for batch work
◢ Used to bend Cu/Al busbar
◢ With scale to shoe bending angle; Max bending angle 90°

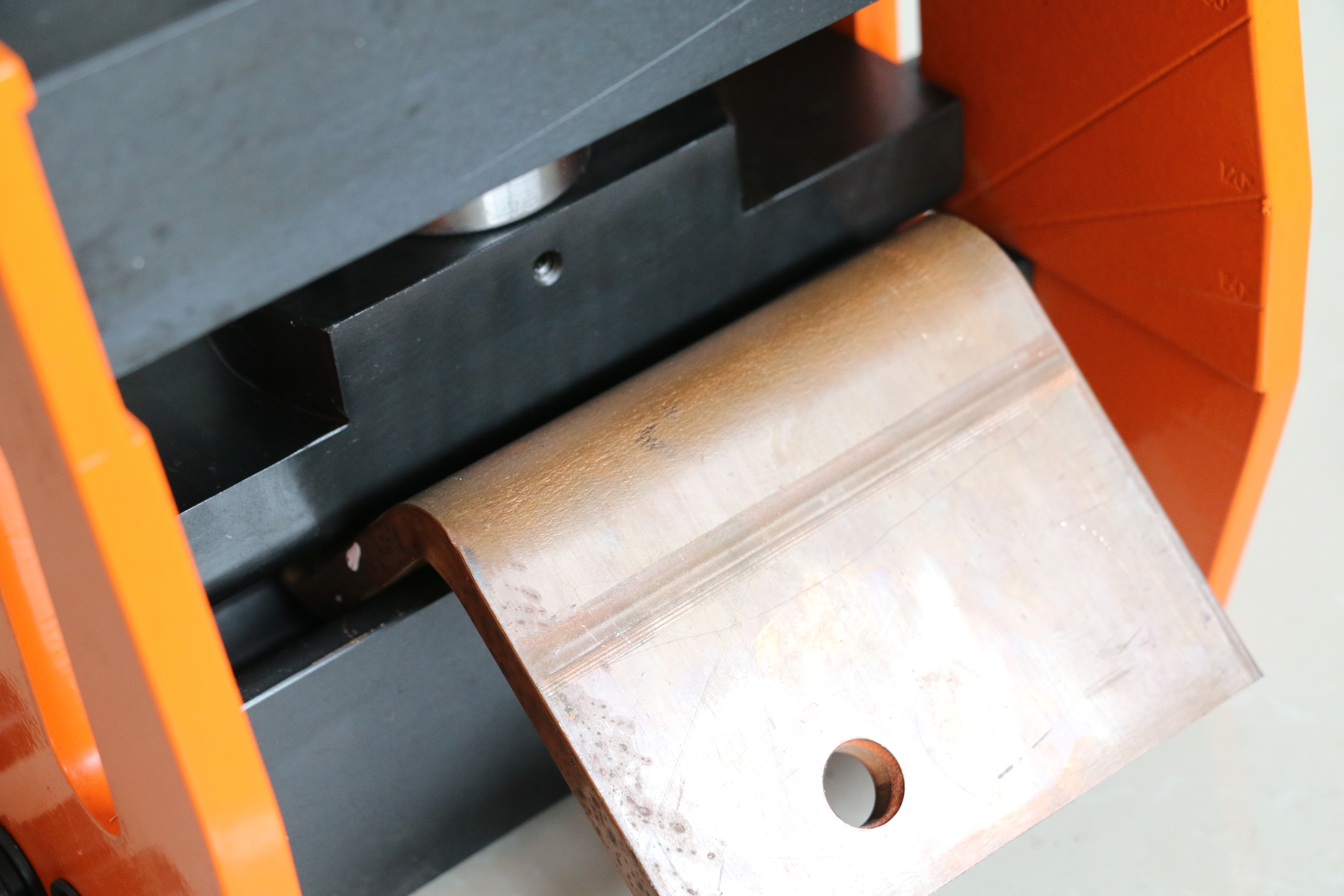

◢ Finished bending the surface smooth without wrinkles
◢ Quick coupler for easy disassembly
◢ Powered by a single-acting hydraulic pump
| Model | LB-200C |
| Output Force | 20t |
| Rated Pressure | 700bar |
| Bending thickness | 12mm |
| Bending width | 200mm |
| Oil Volume |
158ml |
| Gross Weight | 32.1kg |
| Packing | Steel case + carton case |
| Packing Size | 32x26x38cm |

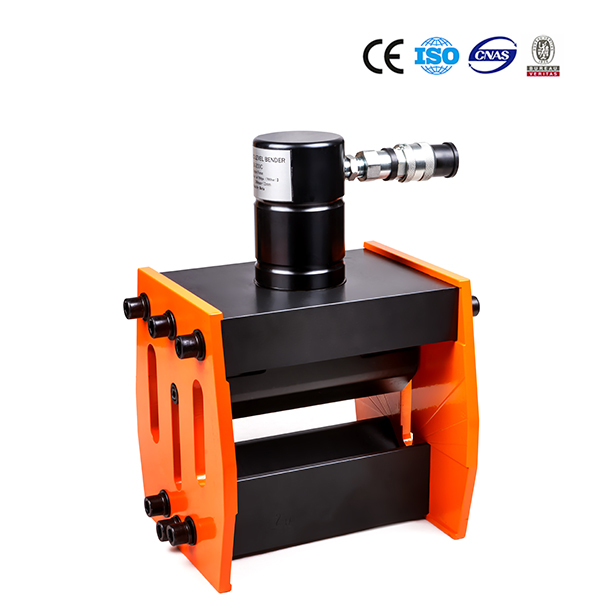

The BETE LB-200C Hydraulic Busbar Bender is designed for efficiently bending Cu/Al busbars up to 200mm wide and 90° with smooth, wrinkle-free results. Its flip-open design allows for easy part removal, and a quick coupler enables simple disassembly. Portable for on-site jobs with built-in wheels, it can also be fixed in a workshop for batch work. Powered by a single-acting hydraulic pump, this durable tool streamlines busbar bending, saving time and increasing productivity. Its intuitive design and adjustable bending angle ensure precise and effortless operation.
