PCS-22 Hydraulic Crimping Head 6t

1.Equipped with quick coupler

2.Suitable for narrow space operation

3.Crimping capacity:Max 300mm²

4.Standard dies:Cu50-300mm²

Introduction

Model	PCS-22
Crimping Force	6T
Stroke	17mm
Rated Pressure	700bar
Crimping capacity	Max 300mm2
Net Weight	2. 6kg
Gross Weight	6.3kg
Standard Dies	Cu50-300mm2
Dimensions	32x10x6cm

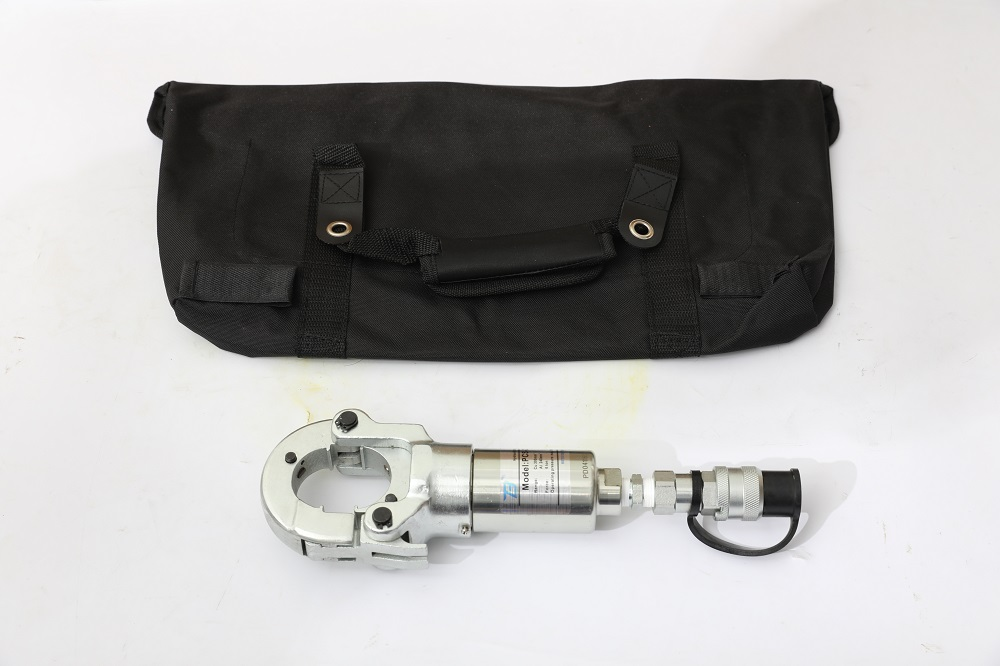

Packing Size	41x13x8cm(canvas bag)

Features:

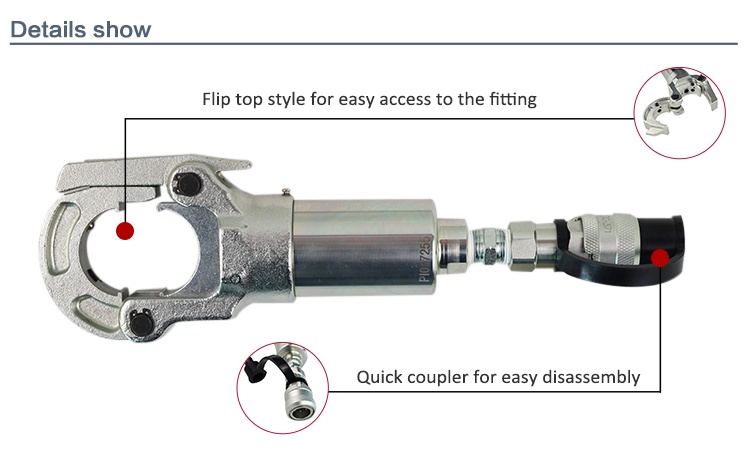

◢ Flip-open head for easy access to the ﬁtting
◢ Head rotates 350°, suitable for narrow space operation
◢ Equipped with a quick coupler, easy to disassemble
◢ Powered by a single-acting hydraulic pump
