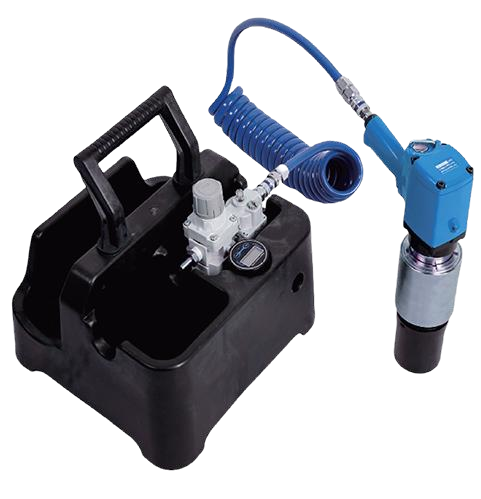

The Pneumatic High-Speed Torque Wrench is designed with lightweight construction, high-power pneumatic drive technology, and intelligent control options. The series provides an efficient solution for heavy-duty bolting tasks in demanding industrial environments.
◢ Compact & lightweight design with high-power imported motor and aluminum-titanium alloy body.
◢ Stable torque output, accuracy ±4%, repeatability ±2%.
◢ No reaction force impact, easy and safe to operate.
◢ Ergonomic handle for effective fatigue reduction.
◢ Optional: digital torque adjustment (10 N ·m step).
◢ Optional: bluetooth/Wi-Fi module for smart socket connection.
◢ Optional: sensor system for high-precision control (up to ±2 %).
◢ Equipped with a portable tool basket for easy station movement.
| Model | Min Torque (N·m) | Max Torque (N·m) | Square Drive S (mm) | D (mm) | L (mm) | H (mm) | R1 (mm) | R2 (mm) | Weight (kg) | Max Speed (rpm) |
| PTG-05 | 100 | 500 | ¾" | 65 | 280 | 210 | 53 | 105 | 4 | 34.3 |
| PTG-10 | 150 | 1000 | ¾" | 69 | 290 | 210 | 60 | 105 | 4.8 | 18 |
| PTG-15 | 200 | 1500 | 1" | 800 | 340 | 210 | 66 | 126 | 5.2 | 10.3 |
| PTG-20 | 300 | 2000 | 1" | 80 | 340 | 210 | 66 | 126 | 5.5 | 8.6 |
| PTG-30 | 500 | 3000 | 1" | 88 | 355 | 210 | 85 | 150 | 7.5 | 5.1 |
| PTG-40 | 700 | 4000 | 1-½" | 98 | 365 | 210 | 80 | 150 | 9.5 | 3.4 |
| PTG-60 | 1000 | 6000 | 1-½" | 105 | 410 | 210 | 88 | 158 | 14 | 2.6 |
| PTG-80 | 2000 | 8000 | 1-½" | 125 | 420 | 210 | 120 | 200 | 16 | 1.7 |
| PTG-100 | 2000 | 10000 | 1-½" | 125 | 420 | 210 | 120 | 200 | 20 | 1.6 |
| PTG-120 | 3500 | 12000 | 1-½" | 128 | 450 | 210 | 120 | 200 | 21 | 1 |
