Hydraulic Flange Spreader Series

The Hydraulic Flange Spreader Series is designed for safe and efficient flange separation in industrial maintenance and pipeline applications. Featuring compact structure, automatic retraction, and anti-slip design, the series includes SWR-8, SWR-40, SWR-401, and 24T Split-type models to meet different flange spreading requirements in confined working environments.

Introduction
More Products

Introduction

The series includes compact hydraulic flange spreaders for routine maintenance tasks as well as high-capacity split-type spreaders for heavy-duty flange separation applications. Featuring narrow jaw designs, anti-slip mechanisms, automatic retraction systems, and high-strength forged components, these tools help operators achieve safe and precise flange opening while reducing downtime and manual labor.

Whether used for gasket replacement, flange alignment, pipeline inspection, or equipment maintenance, the Hydraulic Flange Spreader Series delivers dependable performance in confined spaces and demanding industrial environments.

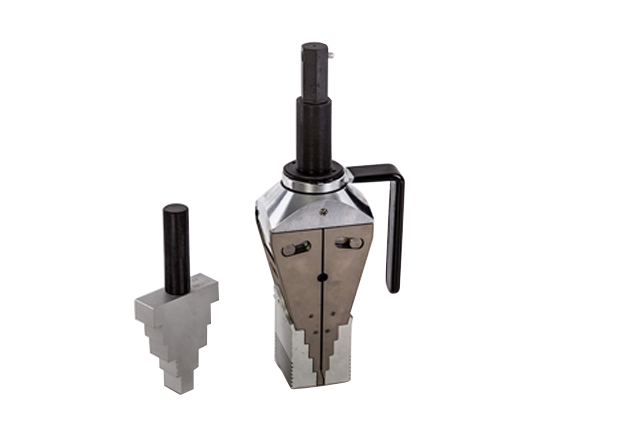

SWR-8 Hydraulic Flange Spreader

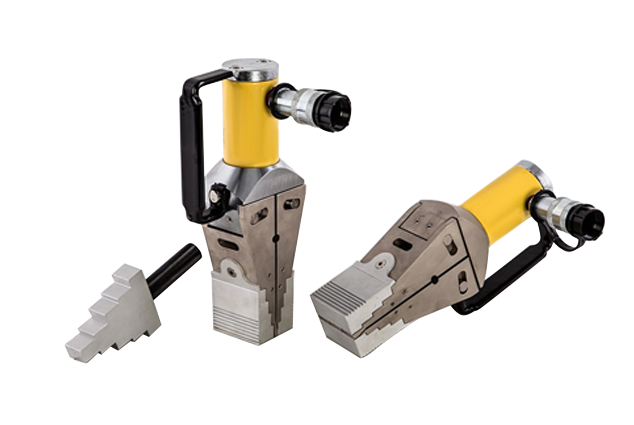

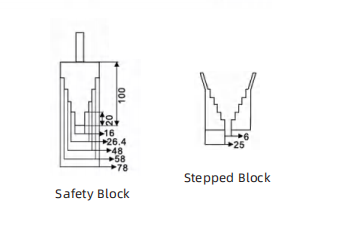

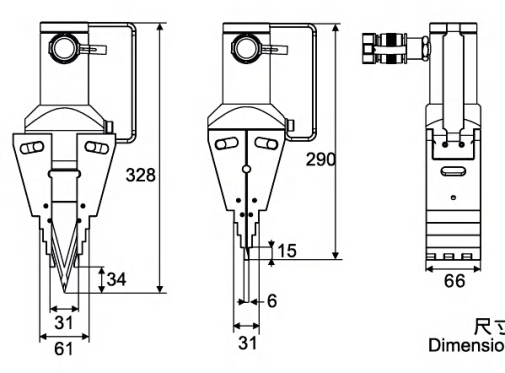

SWR-40 Hydraulic Flange Spreader

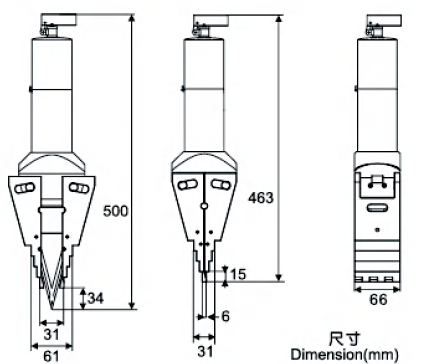

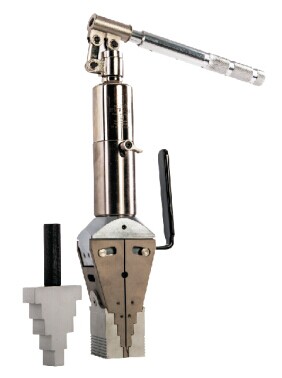

SWR-401 Hydraulic Flange Spreader

Features：

◢ Only 0.24 (6mm) gap

◢ No ﬁrst-step bending and anti-slip design

◢ Automatic retraction

Model	SWR-8	SWR-40	SWR-401
Stretch Force	8t (72kN)	14t (125kN)	15t (134kN)
Top Gap	6mm	6mm	6mm
Stretch Distance	81mm	81mm	81mm
Oil Requirement		78cm³	152cm³
Weight	6.5kg	7.1kg	8.0kg

Split-type Flange Spreader 24T

24T Split Type Flange Spreader.png

Features：

◢ 360° rotating high-strength plastic handle: Rotates around the tool’s central axis for easy vertical/horizontal alignment and convenient carrying

◢ Detachable handle for better performance

◢ Scale design for intuitive visual monitoring of the flange separation stroke

◢ Key components adopt the forging process for enhanced strength and reliability

◢ Narrow jaw design to reduce tool wear

◢ Optimized structure with quickly replaceable jaws and wedge plates for improved work efficiency

Split-type Flange Spreader 24T.png

Model	Max Spreading Force (t)		Spreading Distance (mm)1st			Configuration	Size (mm)	Weight(kg)
Model	1st Stage	4th Stage	1st Step	Stage 1 - No Shim	Stage 2 - With Shim	Configuration	Size (mm)	Weight(kg)
SHF-25	20	24	6-40	6-87.5	48.5-103.5	Single-head Flange Spreader: Includes shim, hex key, safety sling; Net weight: 6.4kg	580x330x165	11.6
SHF-25S	20	24	6-40	6-87.5	48.5-103.5	1-to-1 Configuration: Manual pump, single-head flange spreader, pressure gauge & accessories, 2m hydraulic hose, shim, hex key, safety sling	920x500x205	20.7
SHF-25D	20	24	6-40	6-87.5	48.5-103.5	Manual pump, double-head flange spreader, pressure gauge & accessories, 2m hydraulic hose, shim, hex key, safety sling	920x500x205	33

Application

The Hydraulic Flange Spreader Series is widely used in oil & gas, petrochemical, power generation, marine, and industrial maintenance industries. It provides a safe and efficient solution for flange separation during pipeline installation, inspection, repair, and gasket replacement operations. Whether performing routine maintenance on process pipelines, servicing power generation equipment, separating flanges in petrochemical facilities, or supporting offshore platform maintenance projects, these tools help operators create controlled flange gaps while minimizing damage to flange faces and sealing surfaces. Their compact design and reliable spreading force make them ideal for both onshore and offshore applications where safety, efficiency, and precision are critical.
