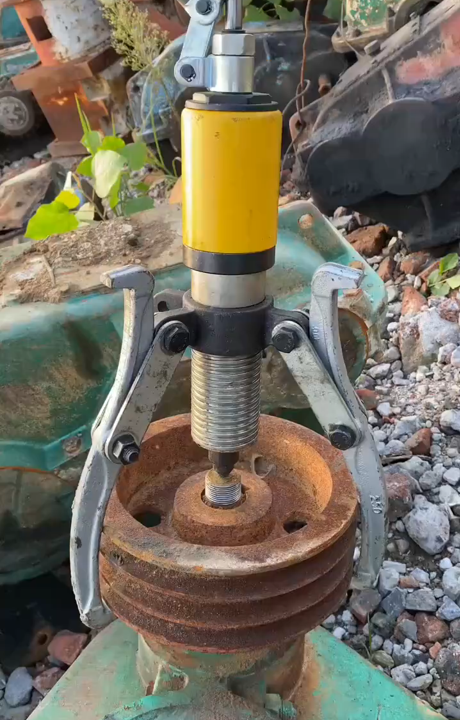

BETE Hydraulic Puller Series provides professional solutions for dismantling tightly fitted mechanical components while minimizing damage to shafts, bearings, gears, and surrounding equipment. Utilizing hydraulic force instead of manual pulling methods, these tools significantly improve efficiency, safety, and pulling capacity in maintenance and repair operations.
Product Features

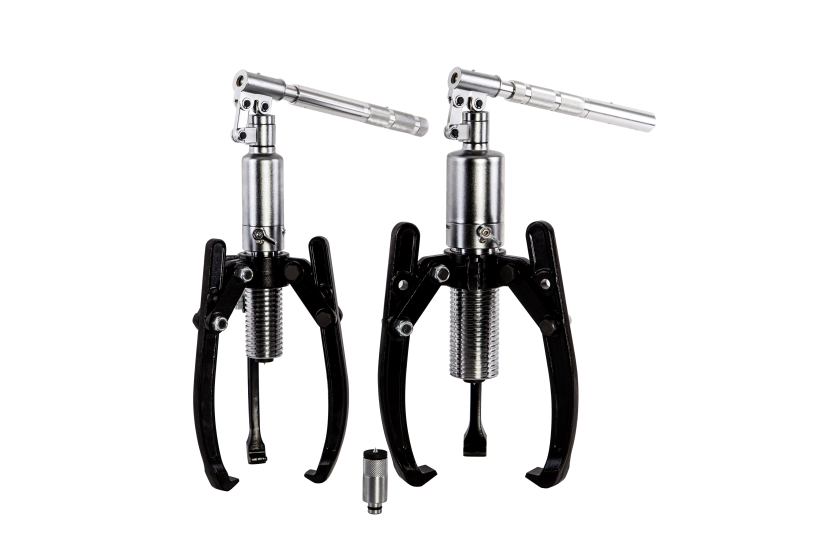

1. HSP Series Integrated Three Jaws Hydraulic Puller
◢ High-strength alloy steel forged
◢ Four sections, a foldable and removable handle, and easy to operate
◢ 360 ° swivel seat
◢ The puller body is equipped with a safety valve
◢ Hydraulic cylinder hard chrome treatment to strengthen the hardness
◢ Claw load is more than 120% of the rated load
| Model |
Force(t) |
Stroke(A)(mm) |
Pressure Area(cm2) |
Claw Depth(mm) |
Claw Distance(mm) |
Top(mm)B |
Top(mm)C |
Top(mm)D |
Claw End(mm)A1 |
Claw End(mm)B1 |
Claw End(mm)C1 |
Weight(kg) |
| HSP-600 |
6 |
70 |
8.04 |
245 |
330 |
45 |
23 |
91 |
13 |
10 |
22 |
6.2 |
| HSP-800 |
8 |
85 |
11.34 |
230 |
350 |
55 |
26 |
112 |
11 |
10 |
25 |
8.2 |
| HSP-1200 |
12 |
85 |
14.45 |
260 |
375 |
60 |
28 |
118 |
14 |
10 |
29 |
9.5 |
| HSP-2000 |
20 |
111 |
28.26 |
350 |
520 |
80 |
40 |
162 |
20 |
27 |
33 |
34.5 |
| HSP-3000 |
30 |
111 |
42 |
435 |
550 |
98 |
50 |
155 |
20 |
27 |
38 |
36 |

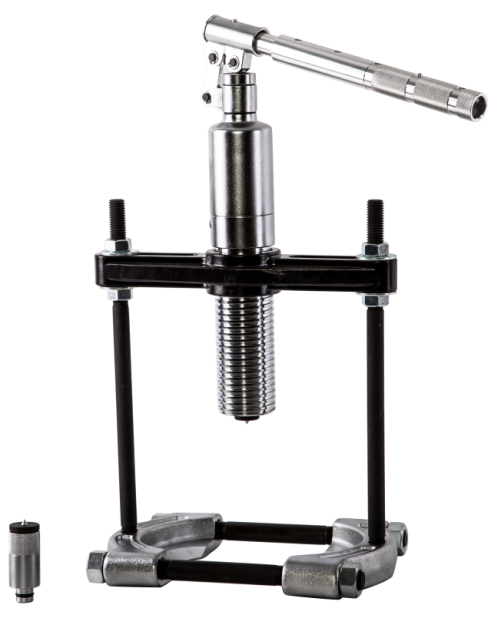

2. HSP Series Two Jaws Hydraulic Puller
| Model |
Force(t) |
Stroke(A)mm |
Claw Depth(mm) |
Claw Distance(mm)A |
Claw Distance(mm)B |
Top(mm)D |
Top(mm)E |
Top(mm)F |
Weight(kg) |
| HSP-610 |
6 |
70 |
270 |
95 |
180 |
45 |
23 |
92 |
11 |
| HSP-810 |
8 |
85 |
270 |
95 |
220 |
50 |
25 |
122 |
14.3 |
| HSP-1210 |
12 |
85 |
381 |
120 |
290 |
60 |
28 |
118 |
23.8 |

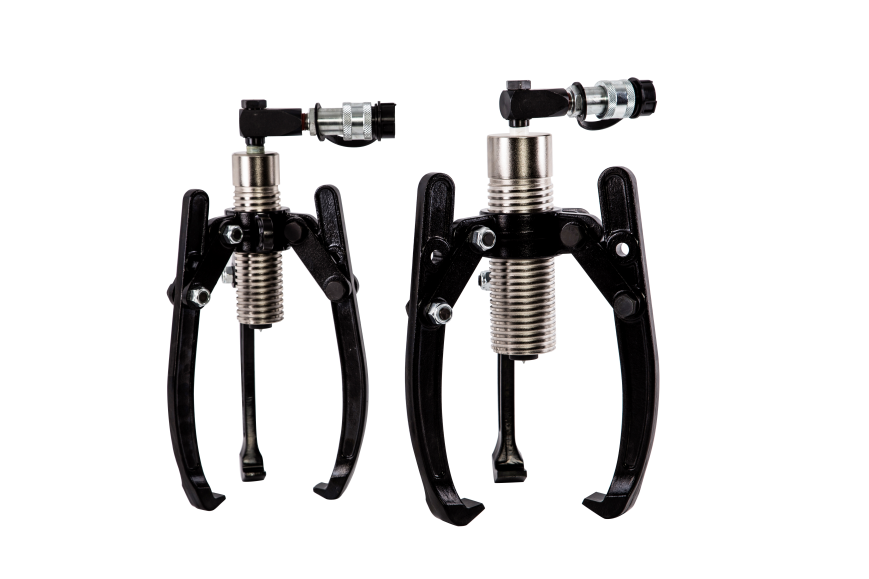

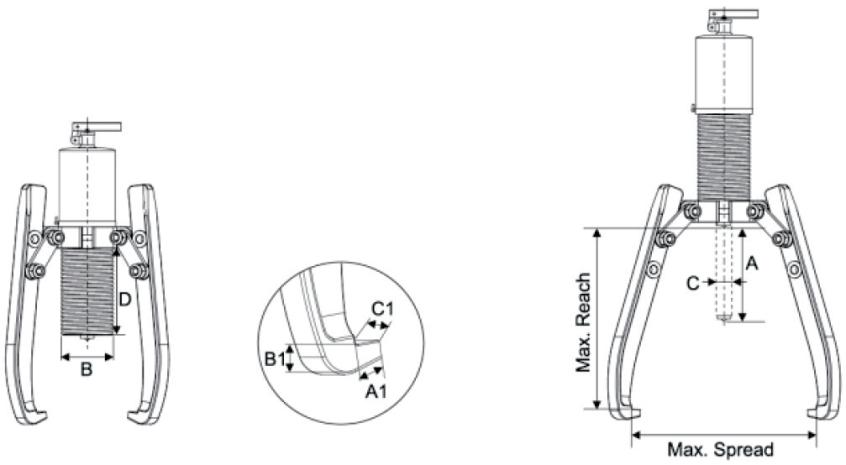

3. Separated Three-jaw Hydraulic Puller
◢ High-strength alloy steel forged
◢ Four foldable and removable handles for easy operation
◢ 360 ° swivel seat
◢ The puller body is equipped with a safety valve
◢ Hydraulic cylinder hard chrome treatment to strengthen hardness
◢ The center nut spring can bear load easy to use
◢ 2/3 claw top collar surface blackened, durable use, and rust-proof
◢ Heat-treated alloy steel forging connection bolt and surface blackened claw, prevent rust, and increase service life
◢ Claw load is more than 120% of the rated load
| Model |
Force(t) |
Stroke(A)mm |
Pressure Area(cm2) |
Claw Depth(mm) |
Claw Distance(mm) |
Top (mm)B |
Top (mm)C |
Top (mm)D |
Claw End (mm)A1 |
Claw End (mm)B1 |
Claw End (mm)C1 |
Weight(kg) |
| ESP-600 |
6 |
70 |
8.04 |
245 |
330 |
45 |
23 |
91 |
13 |
10 |
22 |
5.5 |
| ESP-800 |
8 |
85 |
11.34 |
230 |
350 |
55 |
26 |
112 |
11 |
10 |
25 |
7.5 |
| ESP-1200 |
12 |
85 |
14.45 |
260 |
375 |
60 |
28 |
118 |
14 |
10 |
29 |
9.5 |
| ESP-2000 |
20 |
111 |
28.26 |
350 |
520 |
80 |
40 |
162 |
20 |
27 |
33 |
23.5 |
| ESP-3000 |
30 |
111 |
42 |
435 |
550 |
98 |
50 |
155 |
20 |
27 |
38 |
34 |

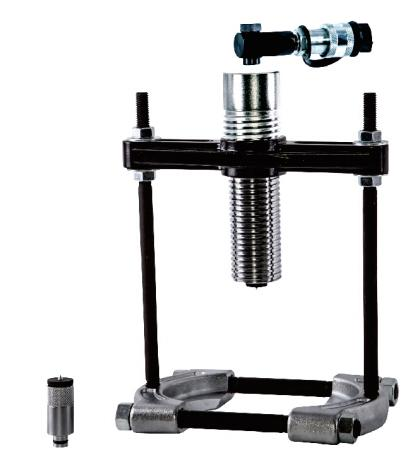

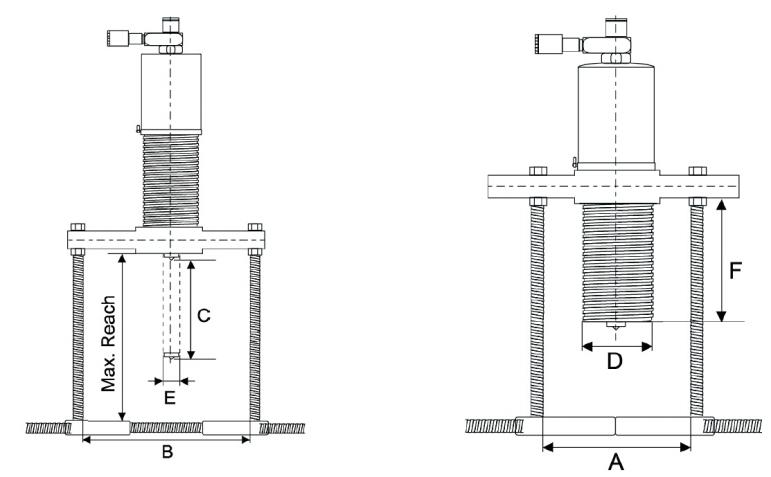

4. Separated Two-jaw Hydraulic Puller
| Model |
Force(t) |
Stroke (A)mm |
Claw Depth (mm) |
Claw Distance(mm)A |
Claw Distance(mm)B |
Top(mm)D |
Top(mm)E |
Top(mm)F |
Weight (kg) |
| ESP-810 |
8 |
85 |
270 |
95 |
220 |
50 |
25 |
122 |
22.2 |
| ESP-1210 |
12 |
85 |
381 |
120 |
290 |
60 |
28 |
118 |
29.5 |

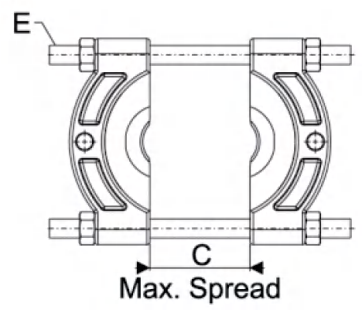

5. Bearing Separator
◢ High-strength alloy steel forged
◢ Surface chrome-plating, heat treatment, and rust-proof treatment to increase service life
| Model |
Stretch Range(C)mm |
Bolt (E)mm |
Weight (kg) |
| BT-9000 |
30-50 |
3/8"-24T-L120mm |
14 |
| BT-9005 |
50-70 |
1/2"-20T-L135mm |
18 |
| BT-9015 |
75-105 |
5/8"-18T-L165mm |
26 |
| BT-9025 |
105-150 |
3/4"-16T-L275mm |
25 |
| BT-9035 |
150-200 |
1"-12T-L350mm |
20 |
