MXTA Series Hydraulic Torque Wrench Manufacturer

Introduction

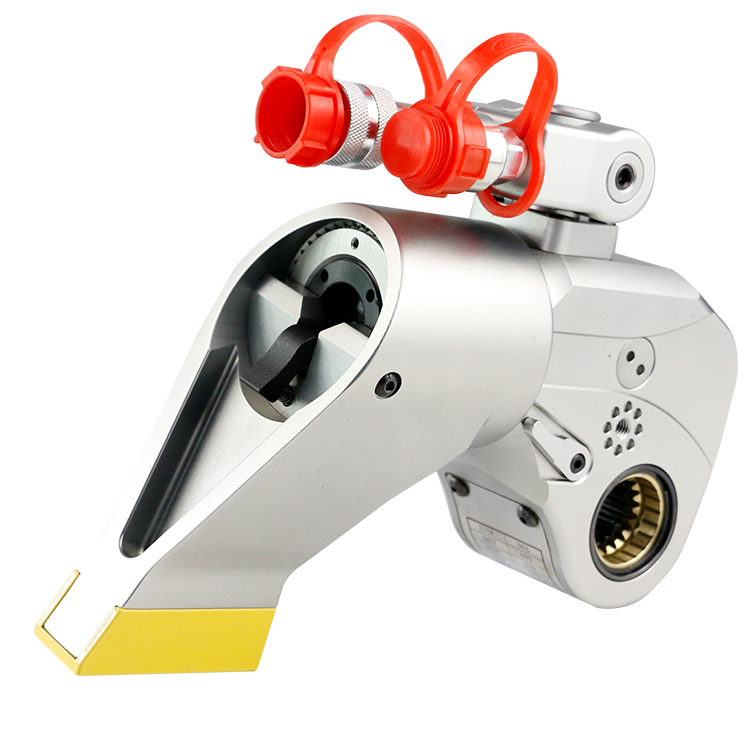

MXTA Series Dual-Drive Hydraulic Torque Wrench

◢ Max working pressure up to 70Mpa,accuracy up to ±3%
◢ Full range models from 112Nm to 72000Nm, which can cover all sizes of bolts in the market

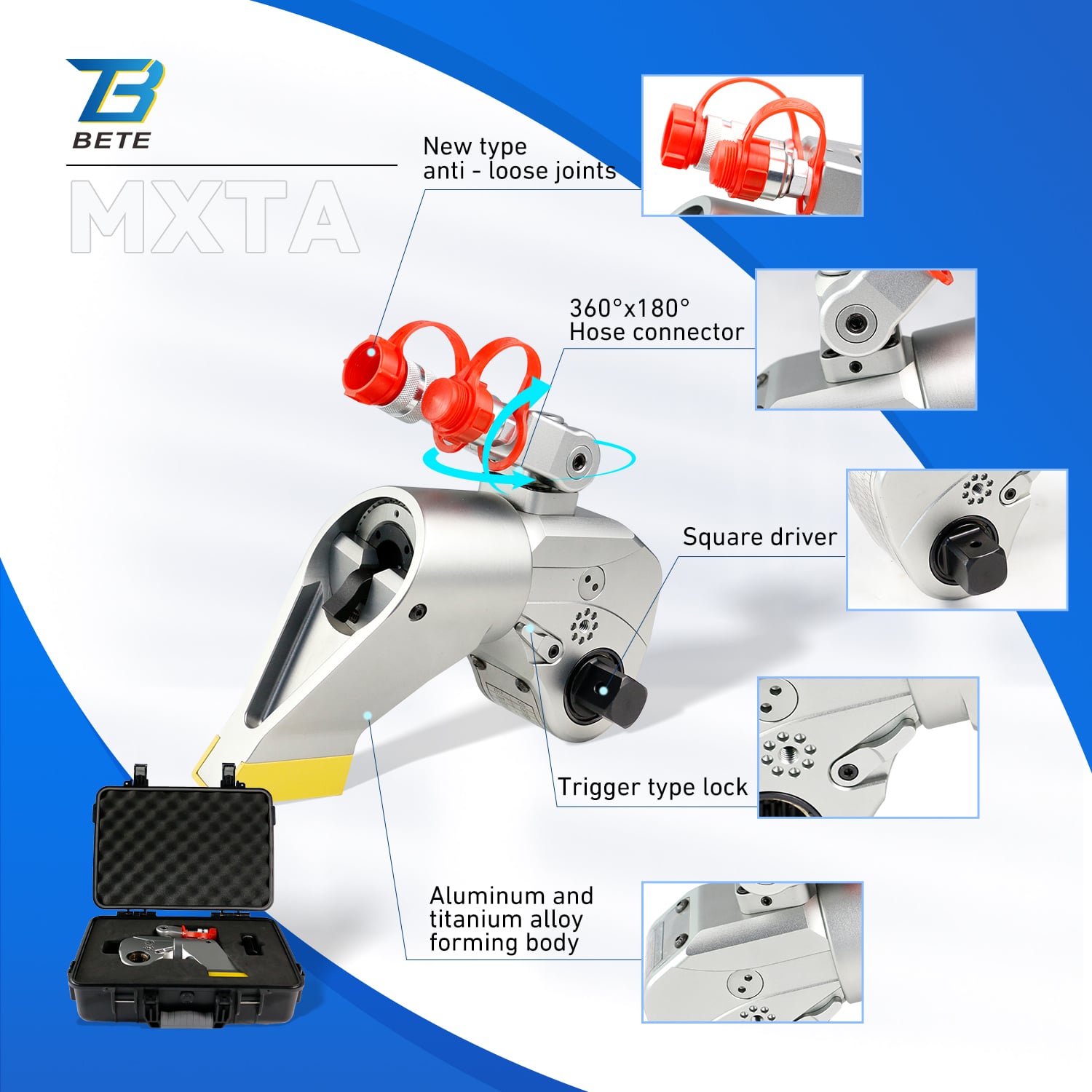

◢ Hose connector rotates 360°x180°, used without limited space
◢ Square driver connects with high-strength sockets, and bolts are used for a wide range of applications
◢ The trigger-type lock can place the 360° ﬁne-tuning type reaction arm on any ﬁxed fulcrum
◢ Aluminum and titanium alloy forming body, high strength, high toughness
◢ New type of anti-loose joints to ensure the oil ﬂows smoothly

Model	Torque Range (N.m)	Bolt Spec. (M)	Weight (kg)	L1	L2	H1	H2	H3	H4	R1	R2	Drive Shaft
07 MXTA	112-1120	14-30	1.8	110.8	139.3	42	65.8	76.2	108.1	20.5	68.3	3/4"
1 MXTA	183-1837	16-36	2	130	182	50	72	99	144	26	99	3/4"
3 MXTA	451-4512	22-48	4	166	241	68	95	130	176	34	134	1"
5 MXTA	752-7528	27-56	7	198	281	80	123	155	198	39	152	1-1/2"
8 MXTA	1078-10780	30-64	9.1	213	308	90	130	171	216	47	171	1-1/2"
10 MXTA	1551-15516	36-72	13.1	231	336	100	141	187	230	51	174	1-1/2"
15 MXTA	2062-20627	39-80	18	270	400	110	179	201	244	55	195	2-1/2"
20 MXTA	2666-26664	42-90	25	295	443	120	182	228	268	59	250	2-1/2"
25 MXTA	3472-34725	48-100	31	314	464	137	200	255	295	67	251	2-1/2"
35 MXTA	4866-48666	64-120	45	355	489	153	217	290	330	79	271	2-1/2"
50 MXTA	7200-72000	72-125	85	386	516	161	223	307	352	81	259	2-1/2"

MXTA Series Special Socket for Drive-Type Wrench

MXTA Series Special Socket for Drive-Type Wrench.png

	Parameters of metric sockets
Thread Spec.	A/F	3/4"(MXTA) A	B	L1	L2	L3	D1	D2	1"(MXTA) A	B	L1	L2	L3	D1	D2	1"-1/2"(MXTA) A	B	L1	L2	L3	D1	D2	2"-1/2"(MXTA) A	B	L1	L2	L3	D1	D2
M16	24	6.3	10	54	31	32	40	40
M18	27	6.3	10	54	32	32	42	42
M20	30	6.3	10	54	33	33	46	44	8	14	59	32	32	54	54
M22	34	6.3	10	54	33	33	52	44	8	14	59	32	32	58	58
M24	36	6.3	10	57	33	33	54	44	8	14	62	32	32	59	59	8	16	85	44	44	74	74
M27	41	6.3	10	58	33	33	60	44	8	14	65	38	38	67	54	8	16	85	44	44	74	74
M30	46	6.3	10	63	38	38	60	44	8	14	65	38	38	67	54	8	16	85	44	44	74	74
M33	50	6.3	10	65	40	40	71	44	8	14	70	43	43	79	60	8	16	90	45	45	79	79
M36	55	6.3	10	70	45	45	77	54	8	14	80	42	52	84	60	8	16	90	45	45	84	84	8	18	100	57	57	86	114
M39	60								8	14	85	45	57	89	60	8	16	100	45	57	94	75	8	18	100	52	52	119	119
M42	65								8	14	85	45	57	98	70	8	16	100	45	57	98	80	8	18	100	52	52	119	119
M45	70								8	14	90	50	62	104	70	8	16	105	50	62	104	80	8	18	120	67	67	128	128
M48	75								8	14	95	50	65	108	70	8	16	110	50	65	118	85	8	18	120	67	67	128	128
M52	80															8	16	115	55	72	118	85	8	18	120	67	67	128	128
M56	85															8	16	125	60	77	128	90	8	18	130	71	71	129	129
M60	90															8	16	125	60	77	139	90	8	18	140	61	73	139	139
M64	95															8	16	130	65	85	139	90	8	18	140	66	73	139	139
M68	100															8	16	135	70	87	144	90	8	18	140	71	81	148	130
M72	105															8	16	135	70	87	149	90	8	18	150	77	89	156	130
M76	110															8	16	135	70	87	158	90	8	18	150	72	90	158	130
M80	115															8	16	135	70	87	159	95	8	18	150	82	98	168	130
M85	120															8	16	135	70	87	168	95	8	18	150	82	98	178	130
M90	130															8	16	155	93	105	189	95	8	18	170	93	114	189	130
M95	135																						8	18	170	93	114	198	130
M100	145																						8	18	170	98	122	210	152
M105	150																						8	18	190	100	140	216	152
M110	155																						8	18	190	100	140	229	152
M115	165																						8	18	190	100	140	241	152

MXTA Series of Driving Type Hydraulic Torque Wrench.png

The MXTA Series Driving Type Hydraulic Torque Wrench is a durable and versatile hydraulic torque wrench designed for high-pressure industrial applications. Built to withstand demanding conditions, it delivers stable, reliable torque output throughout the operation. Its adjustable torque settings allow precise control for different tasks, making it suitable for everything from routine maintenance to heavy-duty construction work. With a robust hydraulic design, the MXTA ensures consistent performance, improved efficiency, and long-term reliability in the field.
