Hollow Hydraulic Torque Wrench Working Head Series

Hollow Hydraulic Torque Wrench Working Head Series

The Hollow Hydraulic Torque Wrench Working Head Series is designed for precision bolting applications in confined and demanding industrial environments. Featuring interchangeable working heads and high-strength construction, this series provides reliable torque solutions for flange bolting, wind power maintenance, petrochemical facilities, and heavy industrial assembly operations.

Introduction
More Products

Introduction

BETE Hollow Hydraulic Torque Wrench Working Head Series is engineered to deliver high torque output, exceptional durability, and maximum flexibility for industrial bolting applications. The series includes LOW-CP Series Hollow Hydraulic Torque Wrench Working Head and Reducer Set, HTW-UT Series Hollow Hydraulic Torque Wrench Working Head and Reducer Set, and LOW-CP Series Ultra-Thin Hollow Hydraulic Torque Wrench.

LOW-CP Series Ultra-Thin Hollow Hydraulic Torque Wrench

The LOW-CP Ultra-Thin Hollow Hydraulic Torque Wrench delivers high torque output in a lightweight, low-profile design. Equipped with a 360° rotating hose connector, it enables flexible positioning in restricted workspaces. The wrench provides torque ranges from 232 to 44,593 N·m with torque accuracy up to ±3%, making it suitable for demanding industrial applications.

Manufactured from high-strength lightweight alloys, the series is designed for long-term reliability in harsh environments. Expandable metric and imperial inserts, replaceable working heads, and optional customized configurations allow users to meet a wide range of bolting challenges across multiple.

Model	Torque Value (N.m)	Nut Opposite Side (mm)	L (mm)	H1 (mm)	H2 (mm)	W1 (mm)	W2 (mm)	Power Head Weight (kg)	Working Head Weight (kg)
2LOW-CP	232-2328	19-55	196	102	126	32	66	1.2	1.6
2LOW-CP	241-2414	60	196	105	129	32	66	1.2	1.7
3LOW-CP	475-3327	46-60	196	113	201	38	77	1.5	2.2
4LOW-CP	585-2510	34-36	245	136	177	42	77	2.3	4.4
	585-5021	41	245	136	177	42	77	2.3	4.4
	585-5858	41-65	246	146	187	42	77	2.3	4.6
	647-6474	70-80	246	146	187	42	77	2.3	4.6
8LOW-CP	1094-10941	41-95	300	169	207	53	77	3.3	8
8LOW-CP	1177-11774	100-105	301	179	216	53	77	3.3	8.4
14LOW-CP	1852-18521	50-115	361	204	239	64	99	5.5	11.5
18LOW-CP	2695-26958	65-130	388	231	264	71	109	6.5	14.3
32LOW-CP	4188-41882	110-155	430	272	303	85	131	11.5	29
32LOW-CP	4459-44593	160-175	441	285	315	85	131	11.5	30

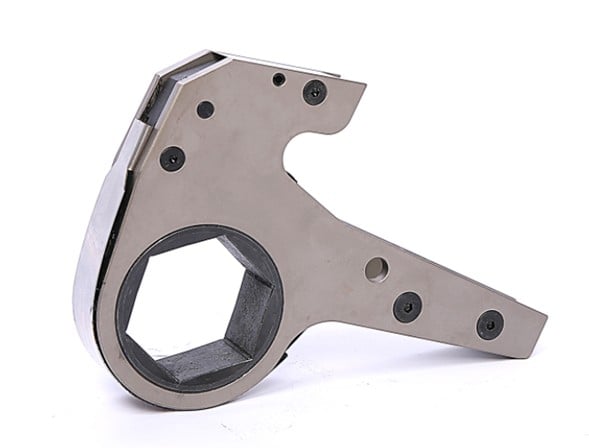

LOW-CP Series & HTW-UT Series Hollow Hydraulic Torque Wrench Working Head and Reducer Set

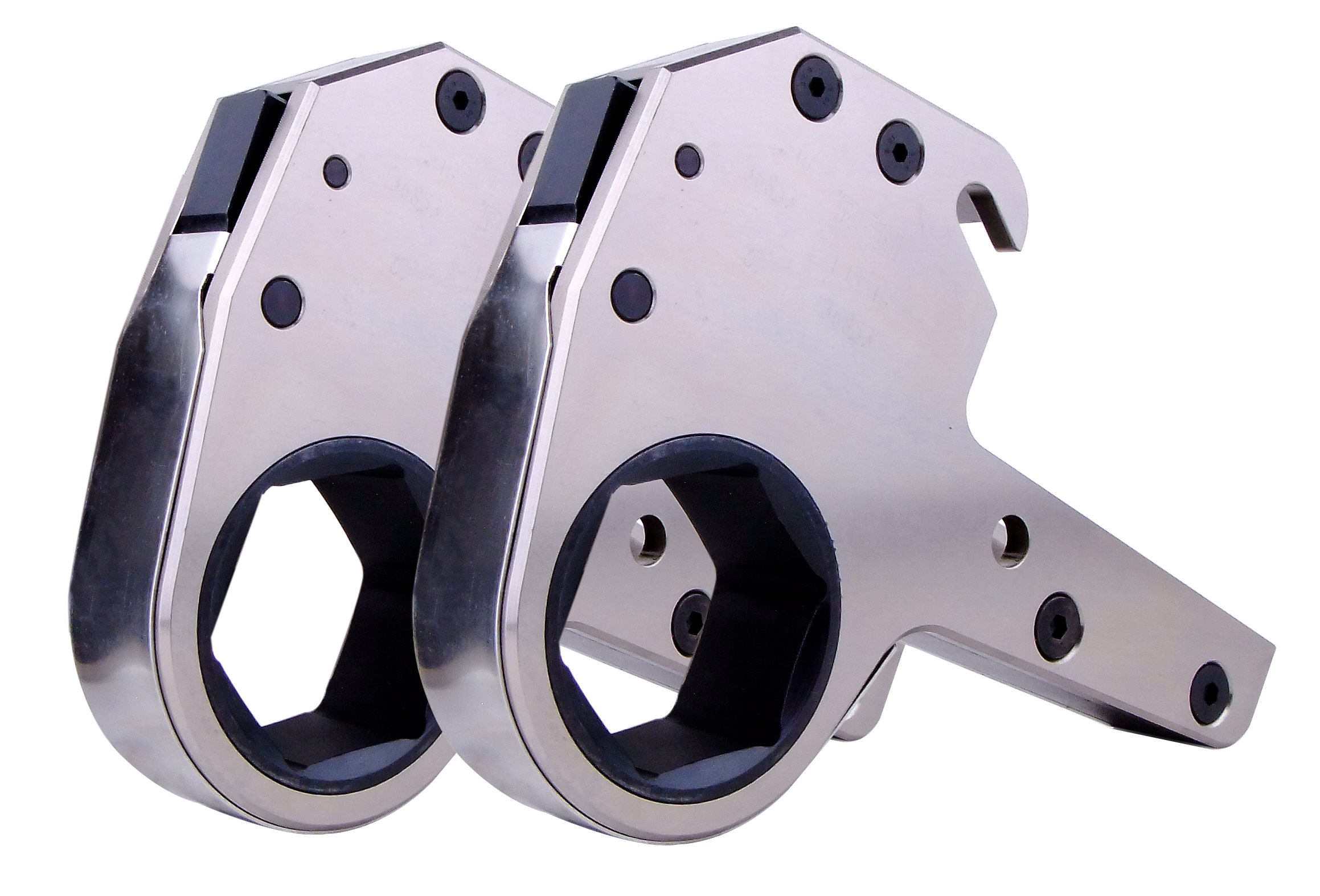

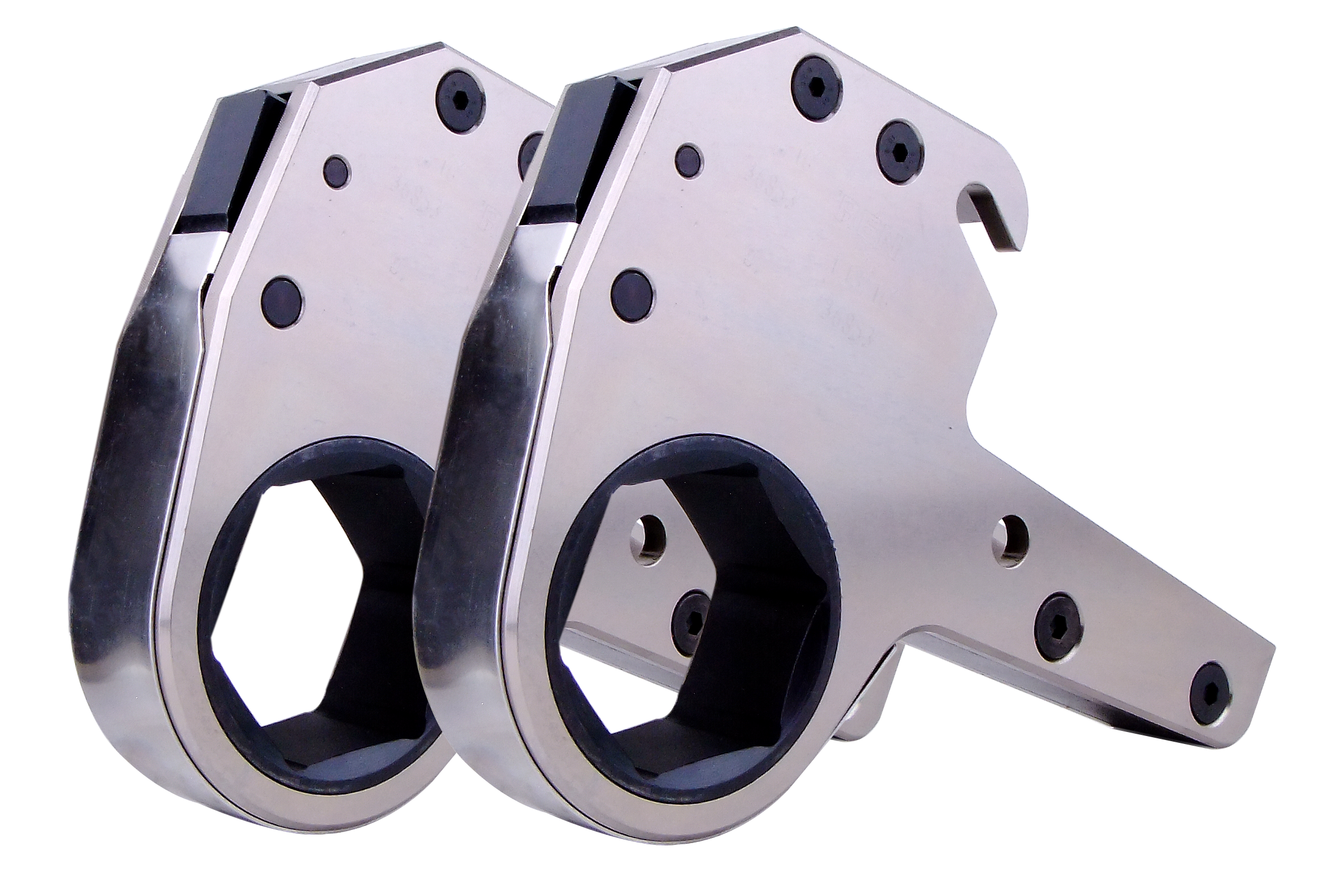

Each type of LOW hollow torque wrench power has a set of working heads corresponding to it; they cover this type of power head that can provide all sizes of bolts within the torque range. When selecting the appropriate working head for the bolt, note that the distance between the bolt and the wall is greater than the distance between the hexagonal edge of the working head and the outer edge of the working head. Pay special attention to whether there is enough space between bolts. The R and A in the following table can help you choose the right head.

LOW-CP Series	HTW-UT Series	Reducer Set

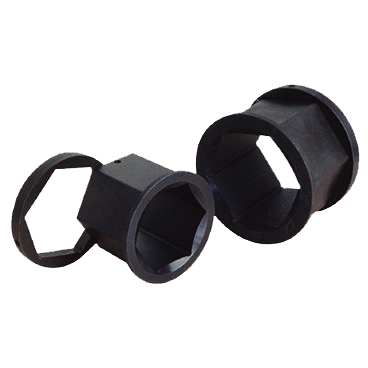

The interchangeable reducer works with the LOW series working head, allowing a single working head to match multiple bolt sizes and greatly improving adaptability to different conditions.

The R and A in the following table can help you choose the right head.

Bolt Dia. mm	A/F mm	2LOW-CP - R(mm)	2LOW-CP - A(mm)	3LOW-CP - R(mm)	3LOW-CP - A(mm)	4LOW-CP - R(mm)	4LOW-CP - A(mm)	8LOW-CP - R(mm)	8LOW-CP - A(mm)	14LOW-CP - R(mm)	14LOW-CP - A(mm)	18LOW-CP - R(mm)	18LOW-CP - A(mm)	30LOW-CP - R(mm)	30LOW-CP - A(mm)
12	19	27	16
14	22	27	14
18	27	27	11
	30	29	12
20	32	29	11
22	34	31	11			36	16
24	36	31	10			36	15
27	41	34	10			39	15	46	22
30	46	37	10	38	11	42	15	46	19
33	50	40	11	42	13	44	15	46	17	60	31
36	55	43	11	42	10	46	14	50	18	60	28
39	60	46	11	46	12	50	15	52	17	60	25
42	65					53	15	55	17	60	22	62	23
45	70					56	15	58	17	60	19	65	23
48	75					59	15	60	17	63	19	67	22
52	80					61	15	63	16	66	19	70	22
56	85							66	16	69	19	72	23
60	90							69	17	72	20	74	22
64	95							71	16	74	19	77	23
68	100							75	17	77	19	79	22
72	105							78	17	80	19	82	23
76	110									83	19	84	22	89	25
80	115									87	20	89	24	95	28
85	120											92	23	95	25
	125											95	23	101	29
90	130											98	23	101	26
95	135													104	26
	140													110	29
100	145													110	26
105	150													116	29
110	155													116	26
	160													128	36
115	165													128	33
120	170													128	30
	175													128	27

Bolt Dia.	A/F	2HTW-UT		3HTW-UT		4HTW-UT		8HTW-UT		14HTW-UT		14HTW-UT		30HTW-UT
mm	mm	R(mm)	A(mm)	R(mm)	A(mm)	R(mm)	A(mm)	R(mm)	A(mm)	R(mm)	A(mm)	R(mm)	A(mm)	R(mm)	A(mm)
12	19	27	16
14	22	27	14
18	27	27	11
	30	29	12
20	32	29	11
22	34	31	11			36	16
24	36	31	10			36	15
27	41	34	10			39	15	46	22
30	46	37	10	38	11	42	15	46	19
33	50	40	11	42	13	44	15	46	17	60	31
36	55	43	11	42	10	46	14	50	18	60	28
39	60	46	11	46	12	50	15	52	17	60	25
42	65					53	15	55	17	60	22	62	23
45	70					56	15	58	17	60	19	65	23
48	75					59	15	60	17	63	19	67	22
52	80					61	15	63	16	66	19	70	22
56	85							66	16	69	19	72	23
60	90							69	17	72	20	74	22
64	95							71	16	74	19	77	23
68	100							75	17	77	19	79	22
72	105							78	17	80	19	82	23
76	110									83	19	84	22	89	25
80	115									87	20	89	24	95	28
85	120											92	23	95	25
	125											95	23	101	29
90	130											98	23	101	26
95	135													104	26
	140													110	29
100	145													110	26
105	150													116	29
110	155													116	26
	160													128	36
115	165													128	33
120	170													128	30
	175													128	27
