Hydraulic Torque Wrench
Home > Products > Industrial Bolting Solutions > Hydraulic Torque Wrench
1.Integrated lengthen design
2. Max working pressure up to 70MPa
3.A total of six models from 232- 44593Nm
4.360°x180°and 360°x360°rotation hose connectors optional
◢ Max working pressure up to 70MPa,accuracy up to ±3%
◢ A total of six models from 232-44593Nm
◢ 360°x180°and 360°x360°rotation hose connectors are optional, used without limited space
◢ Integrated lengthened design, longer arm, reliability enhanced
◢ Aluminum and titanium alloy forming body, high strength, high toughness
◢ New type of anti-loose joints to ensure the oil flows smoothly
◢ Anti-stop pawl design can prevent the wrench ratchet from reversing, resulting in higher work efficiency and torque accuracy
◢ Hollow design, wrench directly acts on the nut, more accurate torque, and lighter
| Model | Torque range(N. m) | A/F(mm) | Drive head weight(kg) | Working head weight(kg) | L | H1 | H2 | W1 | W2 |
| 2LOW | 232-2328 | 19-55 | 0. 9 | 1. 5 | 196 | 126 | 102 | 32 | 51 |
| 242-2414 | 60 | 0. 9 | 1. 5 | 196 | 129 | 105 | 32 | 51 | |
| 4LOW | 585-5858 | 34-65 | 1. 7 | 3. 4 | 258 | 163 | 136 | 42 | 66 |
| 647-6474 | 70-80 | 1. 7 | 3. 4 | 263 | 173 | 146 | 42 | 66 | |
| 8LOW | 1094-10941 | 41-95 | 3. 0 | 6. 3 | 300 | 192 | 168 | 53 | 83 |
| 1177-11774 | 100-105 | 3. 1 | 6. 3 | 311 | 201 | 177 | 53 | 83 | |
| 14LOW | 1852-18521 | 50-117 | 4. 6 | 11. 4 | 360 | 225 | 204 | 64 | 99 |
| 18LOW | 2695-26958 | 65-130 | 6. 5 | 14. 3 | 388 | 264 | 231 | 71 | 109 |
| 30LOW | 4188-41882 | 110-155 | 10. 4 | 20. 5 | 430 | 303 | 272 | 85 | 131 |
| 4459-44593 | 160-175 | 10. 4 | 20. 5 | 441 | 315 | 285 | 85 | 131 |

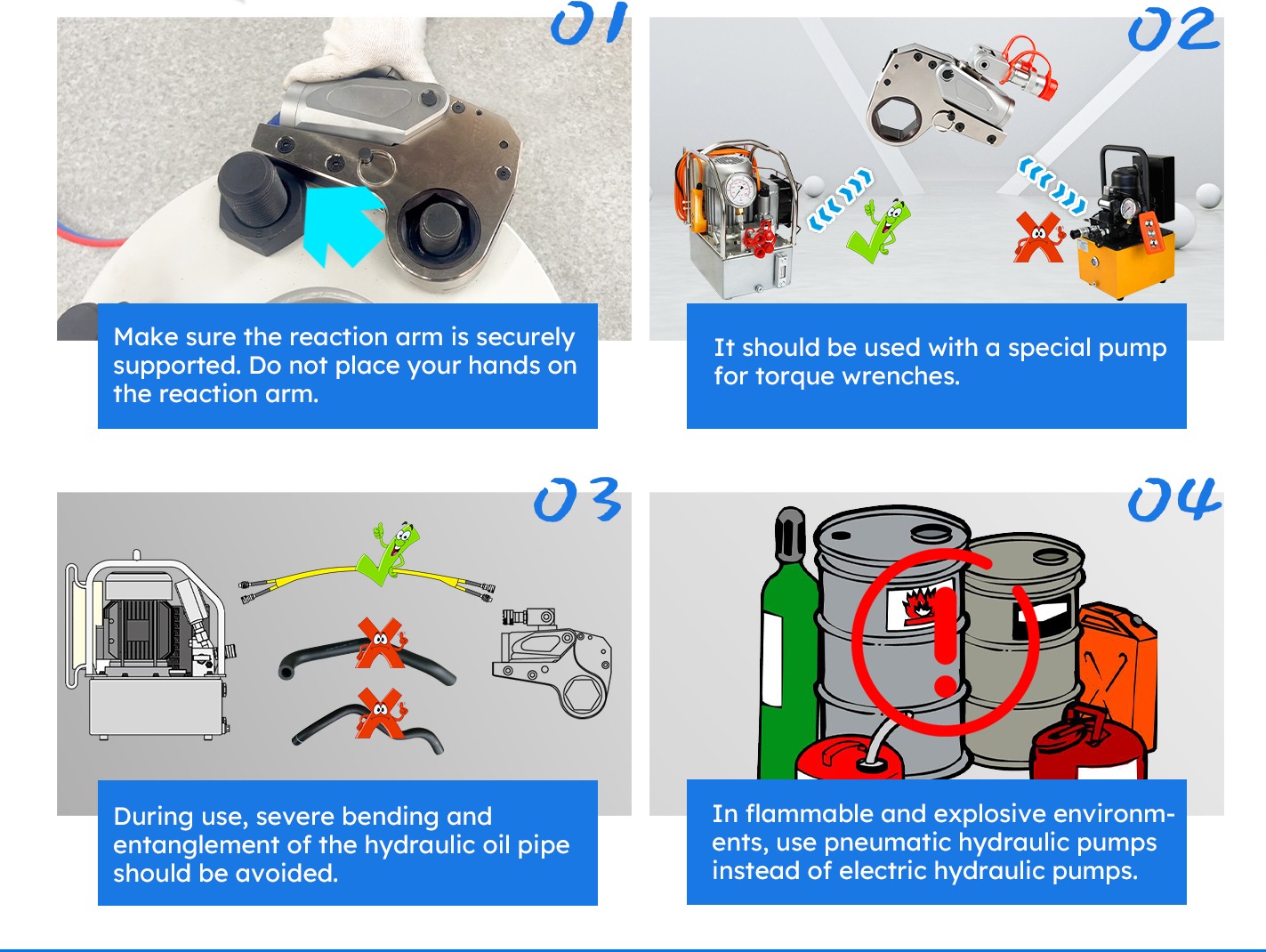

Important Notes
Please strictly observe the precautions.
Application
Widely used in large-scale manufacturing, rail transit, shipbuilding, iron and steel metallurgy, petrochemical, telecommunications, aviation, power construction and other fields.
